GLPI – Server Template Configuration: Size and Image

Configuring server templates

With the arrival of version 0.93 of GLPI, it is possible to manage datacenters and bays. We will see in this tutorial how to configure the server models to put them to the right number of U and put the images corresponding to the model.

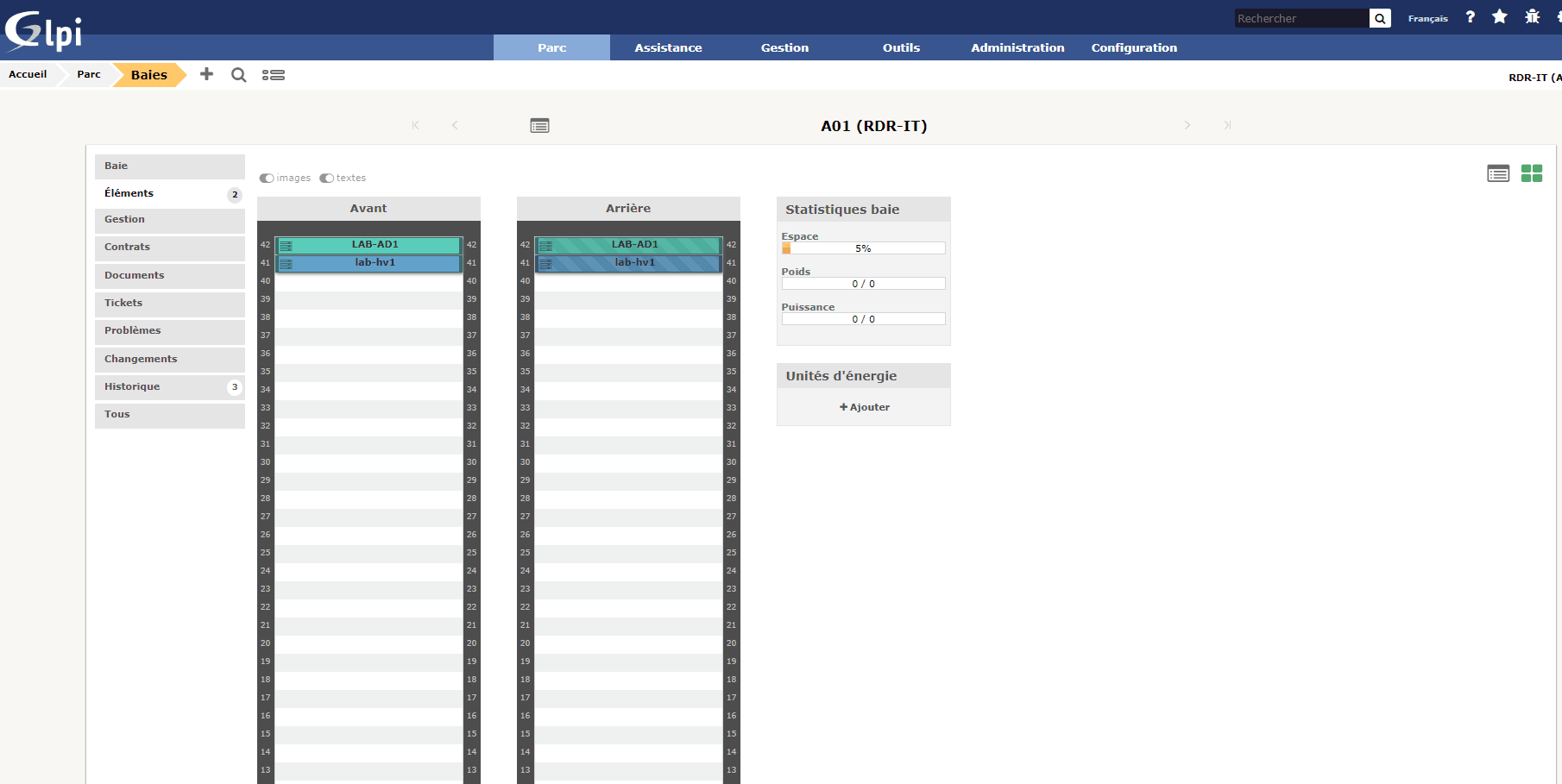

By default all servers are 1U and your array should look like the image below, the form for adding server images is at the model level and not the computer itself

Baie sans images

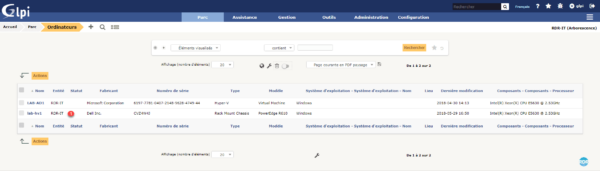

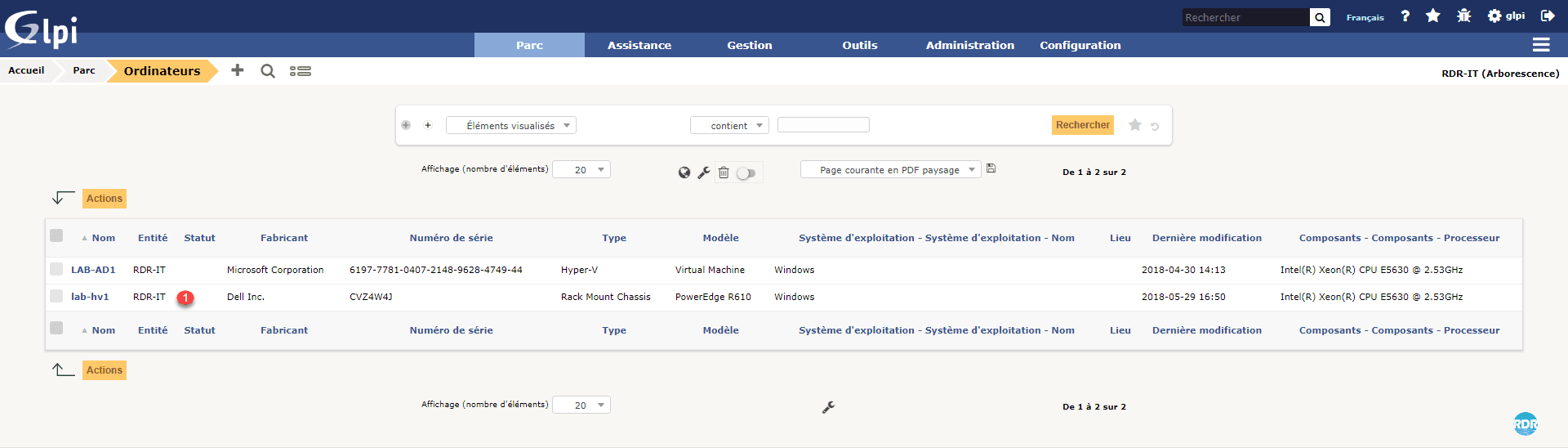

1. Once connected to your GLPI, go to the list of computers and click on the server you want to configure 1.

GLPI : liste des ordinateurs

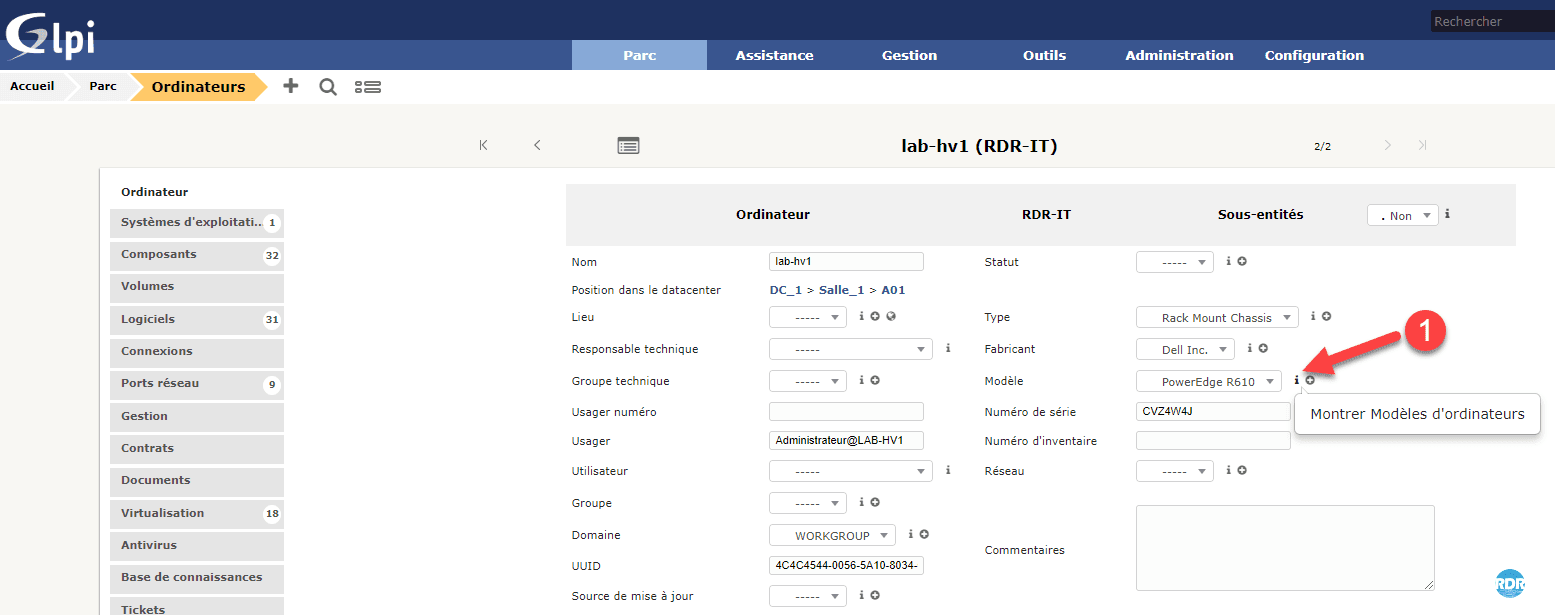

2. On the server details, click on i 1 to go on the model detail.

GLPI : détail ordinateur

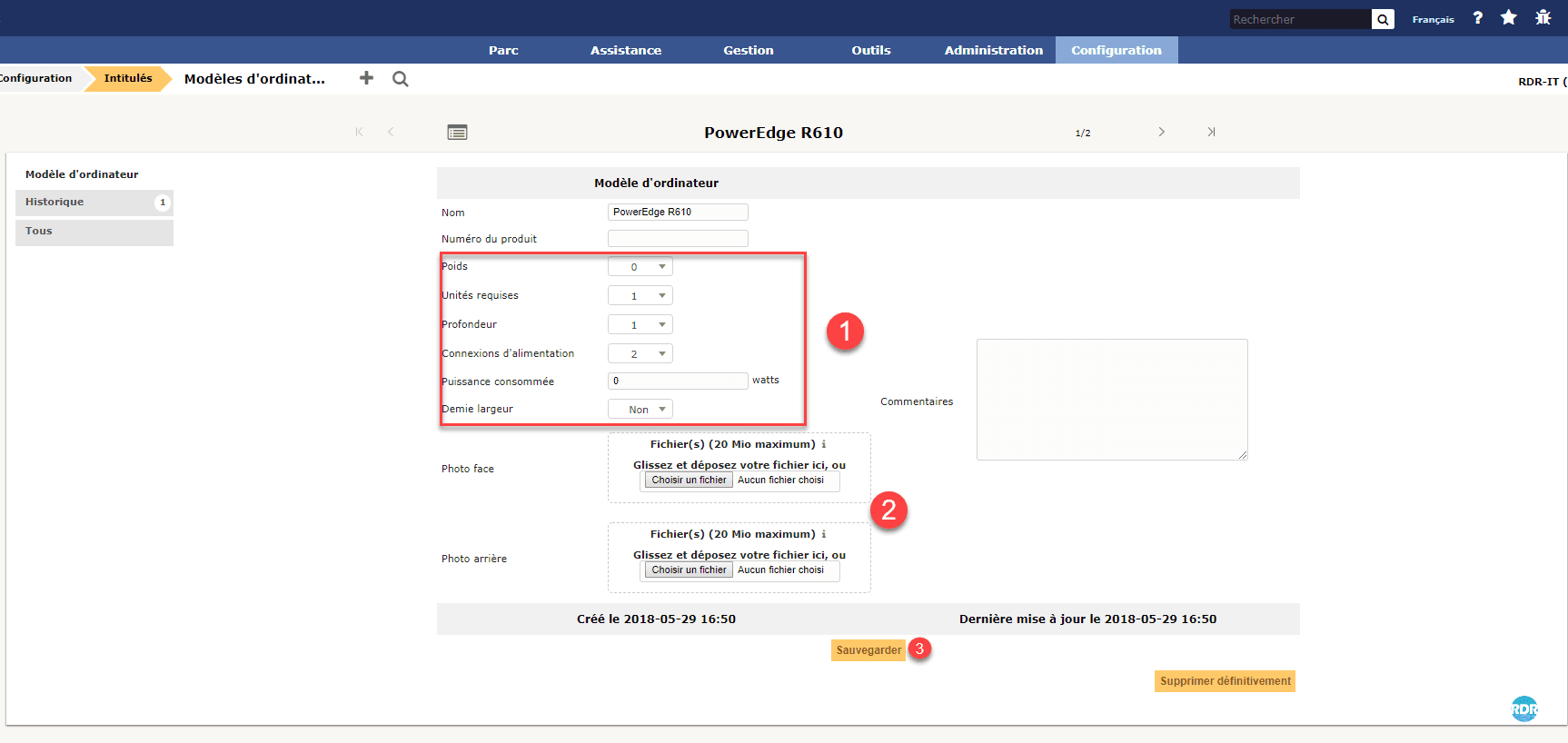

3. U, weight and image information is found on the model information. The advantage is that if you have the same server model multiple times, you have to do it once. Edit template information 1, add your images 2 and click on save 3.

GLPI : modèles de serveur

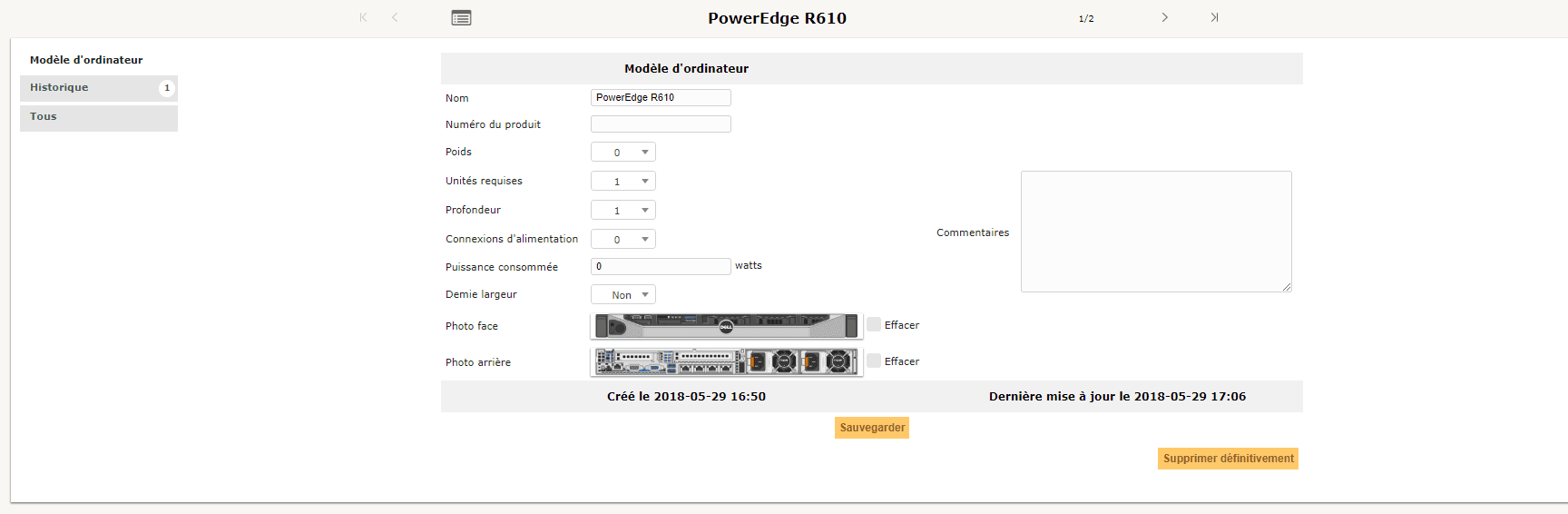

4. If you have add photos, the template page should be like this :

modèles de serveur avec images

5. Return to managing your array, your server should be visible with the image.

GLPI : baie avec images

You will find images for your models of servers and equipment here (vss to png).
