Nano Server: Generating and Using a Windows Nano Server Virtual Disk

Nano Server Overview

Nano Server is a version of Windows Server that has made its appearance with Windows Server 2016, which is a “light” version of a Windows Core (without GUI) that installs the following roles:

  • Hyper-V
  • containers
  • IIS
  • DNS
  • File Server (SOFS).

Complete presentation : https://docs.microsoft.com/fr-fr/windows-server/get-started/getting-started-with-nano-server

Unlike the “normal” versions of WIndows, the Nano Server installation is done by directly generating the VHD (X) or by generating a USB key.

Two tools are available:

  • From the command line using PowerShell.
  • With graphical interface: Nano Server Image Builder.

Generate a Nano Server Virtual Disk

In order to generate a Nano Server image, it is necessary to have the installation DVD.

With PowerShell

In powershell when creating a virtual disk, this one has a size of 4GB. The basic installation of Windows Nano is less than 600MB.

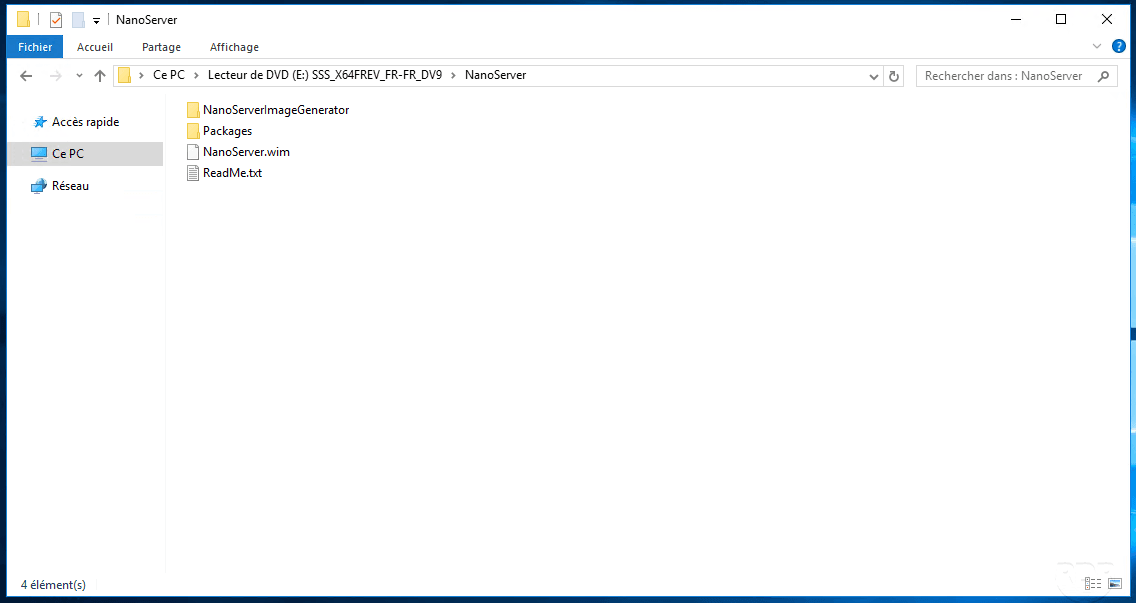

Mount the Windows 2016/2019 ISO and check for the presence of the NanoServer folder at the root.
NanoServer Folder

Open a PowerShell prompt in Administrator, go to the NanoServer folder of the ISO and enter the following command to load the build module.

Import-Module .\NanoServerImageGeneratir -Verbose

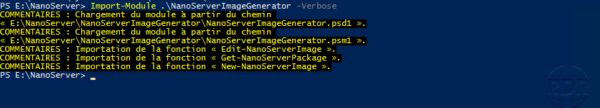

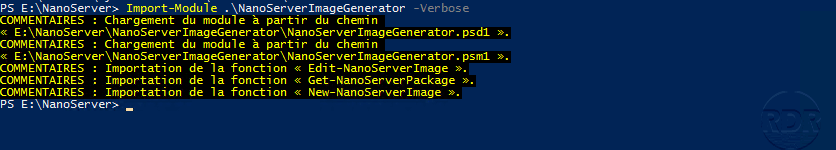

The order should return you the lines below:
Load module Nano Server Image Generator

Syntax of the command to generate an image:

New-NanoServerImage -Edition <Standard|DataCenter> -DeploymentType <Host|Guest> -MediaPath <Source ISO> -TargetPath <Folder store image\name-file.extension > -ComputerName "Computer Name" -Package Microsoft-NanoServer-<package-name>

We will now generate the Nano Server image in VDHX with the IIS package installed.

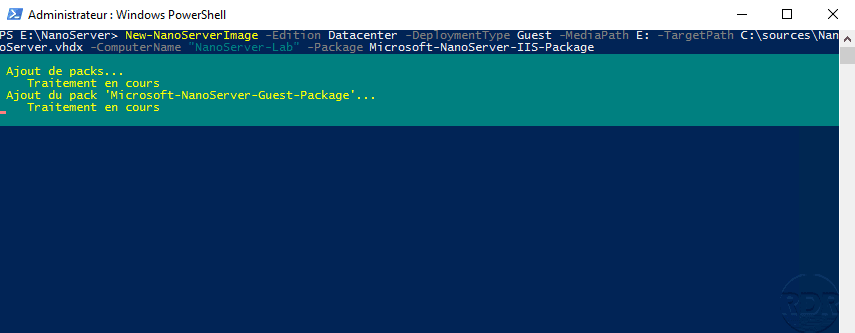

New-NanoServerImage -Edition DataCenter -DeploymentType Guest -MediaPath E: -TargetPath C:\sources\NanoServer.vhdx -ComputerName "NanoServer-Lab" -Package Microsoft-NanoServer-IIS-Package

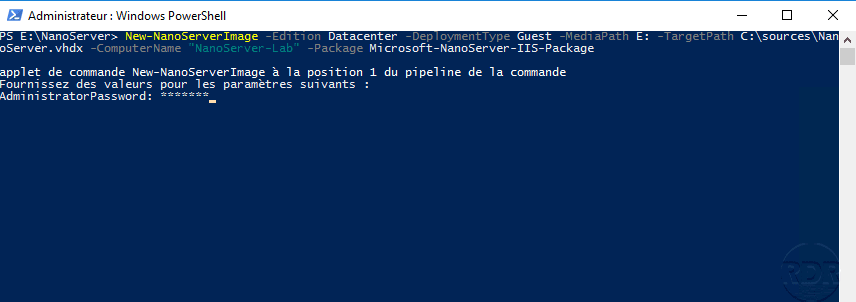

Enter the password for the Administrator account
Nano Server password

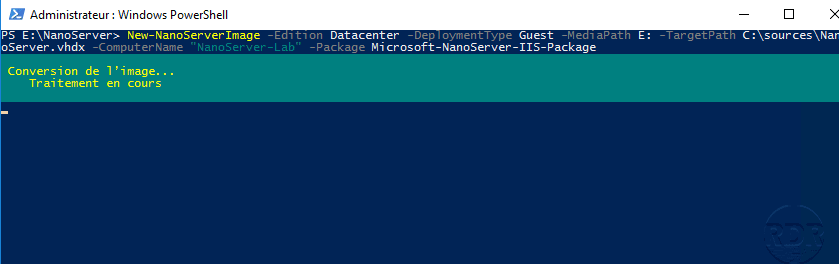

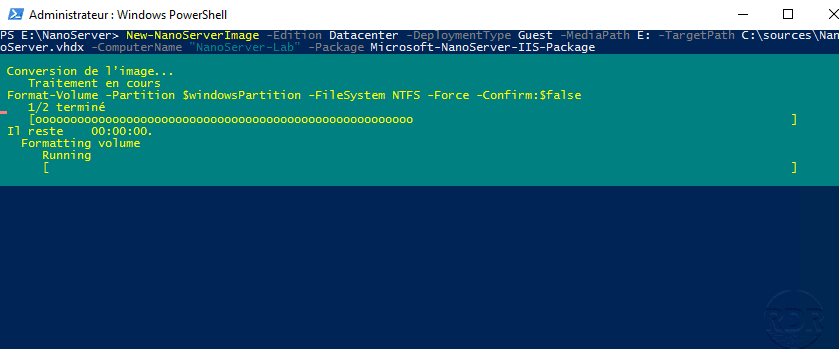

Wait while generating the virtual hard disk …

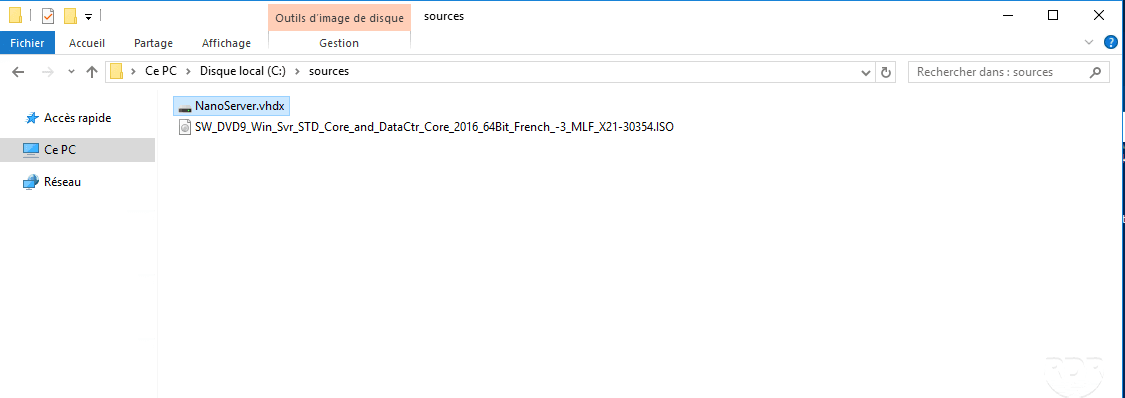

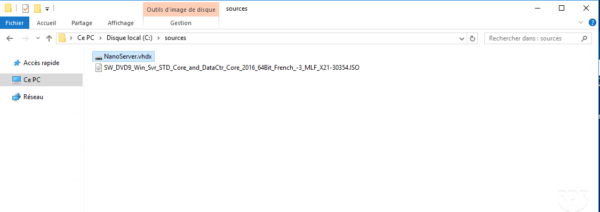

When finished, the vdhx file must be present in the specified TargetPath location.
Nano Server virtual disk

With Nano Server Image Builder

Before downloading Nano Server Image Build (NSIB), the computer where NSIB will be installed must have ADK.

As with PowerShell generation, it is necessary to have the Windows Server ISO mounted or uncompressed.

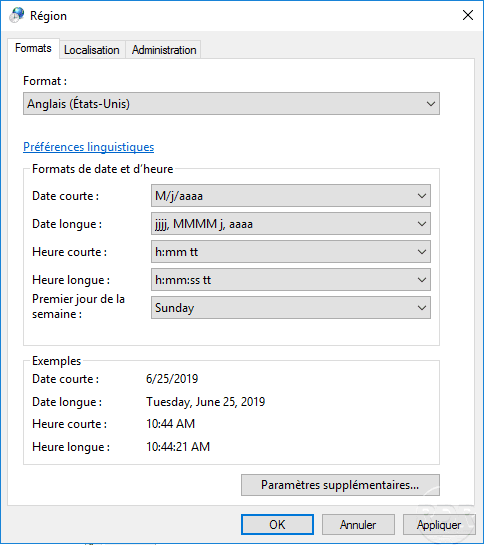

To generate the image with NSIB, I also had to change the date format of the server in English (United States) otherwise during the generation you will have a 1026 error.
Date US

Download, install and run Nano Server Image Builder.
Nano Server Image Builder

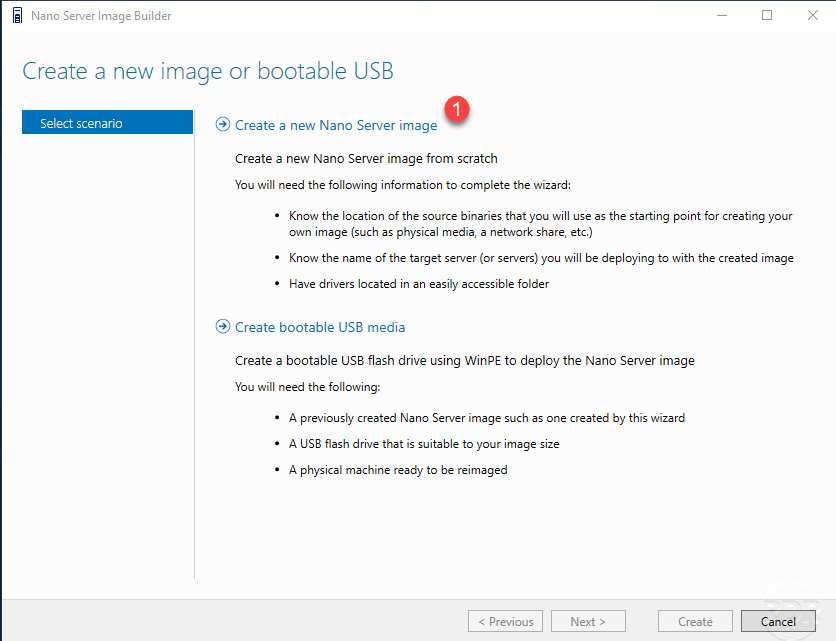

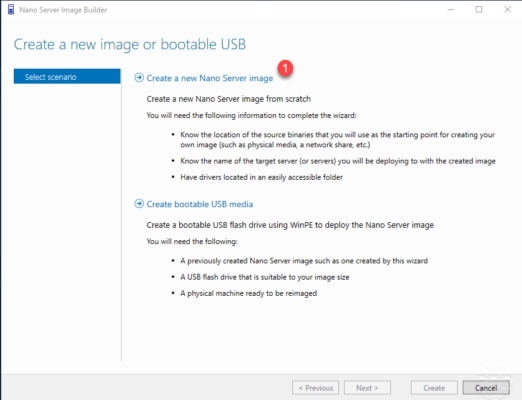

Choose the type of image you want, for the tutorial click Create a new Nano Server image 1 .
Image type

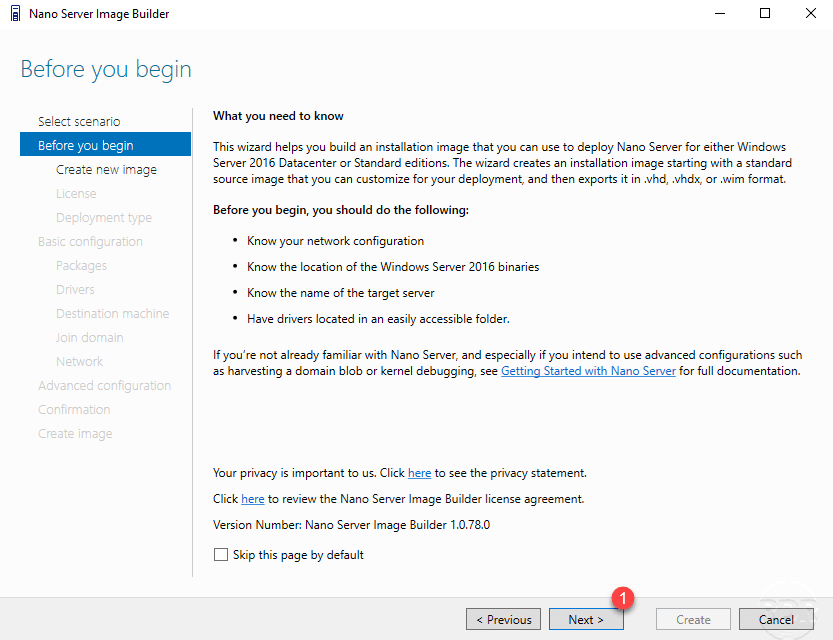

Click Next 1 to go to the Before you begin page.
Wizard Image Builder

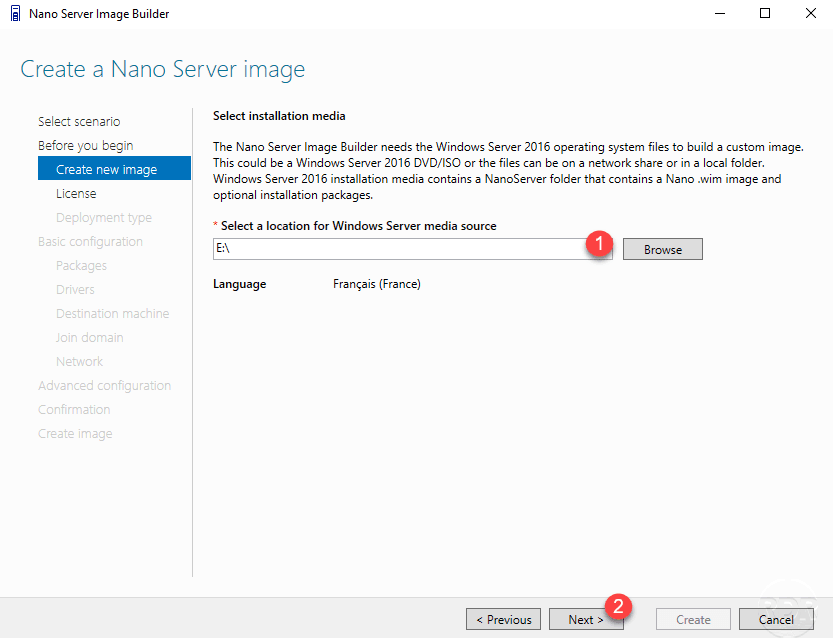

Indicate the location of Windows sources 1 and click Next 2 .
Installation media for Nano Server Image Builder

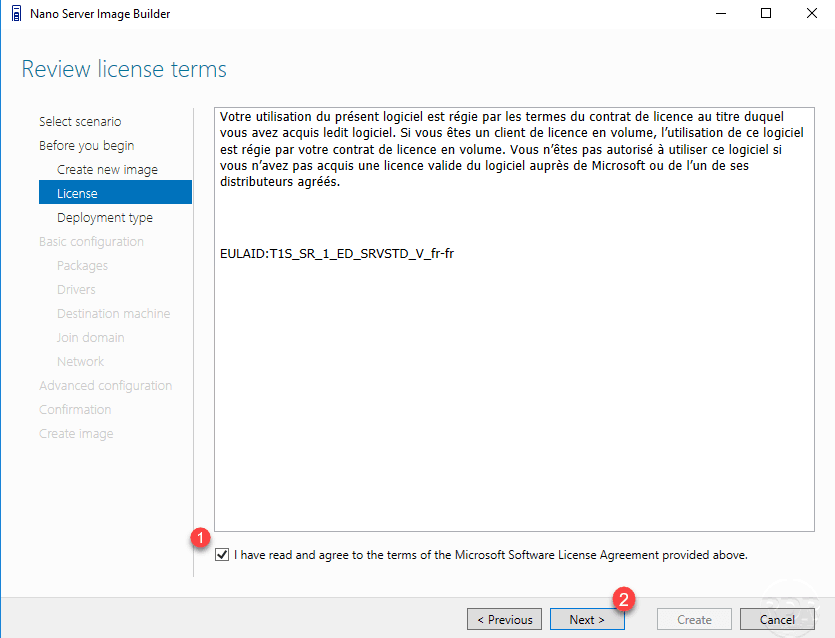

Accept the 1 license agreement and click Next 2 .
Accept license

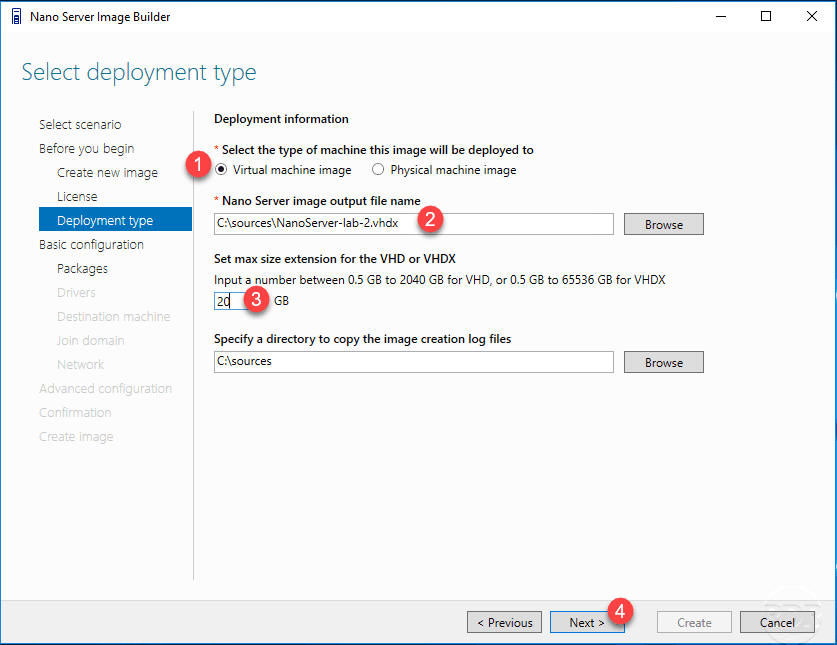

Select the type of the deployment type 1 , indicate the location of the output file 2 , for a virtual machine indicate the size 3 of the disk then click Next 4 .
Deployment type

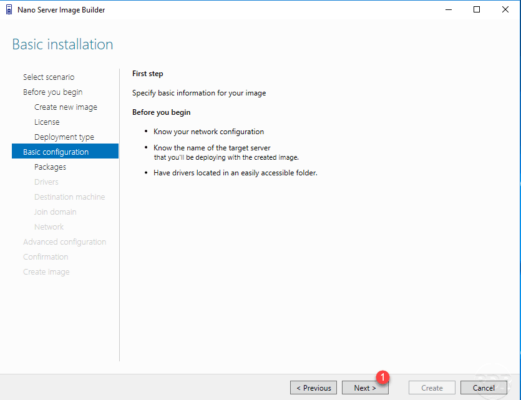

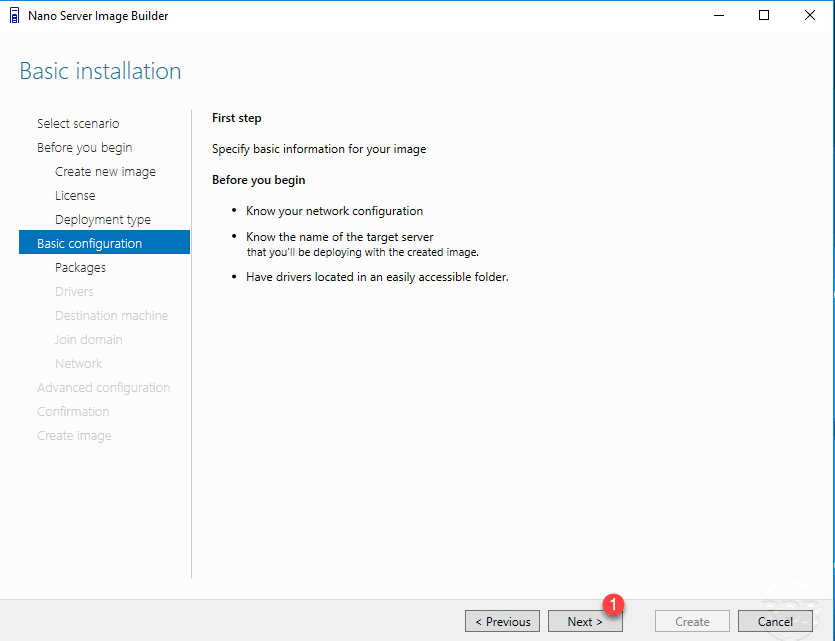

Click on Next 1 .
Basic configuration

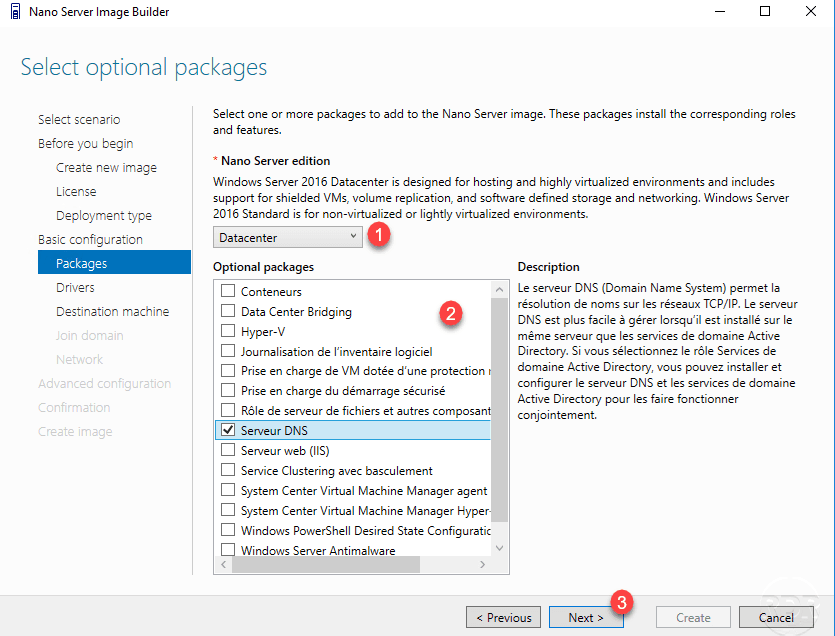

Choose the edition 1 , choose the packages to integrate 2 and click on Next 3 .
Edition Nano Server and package

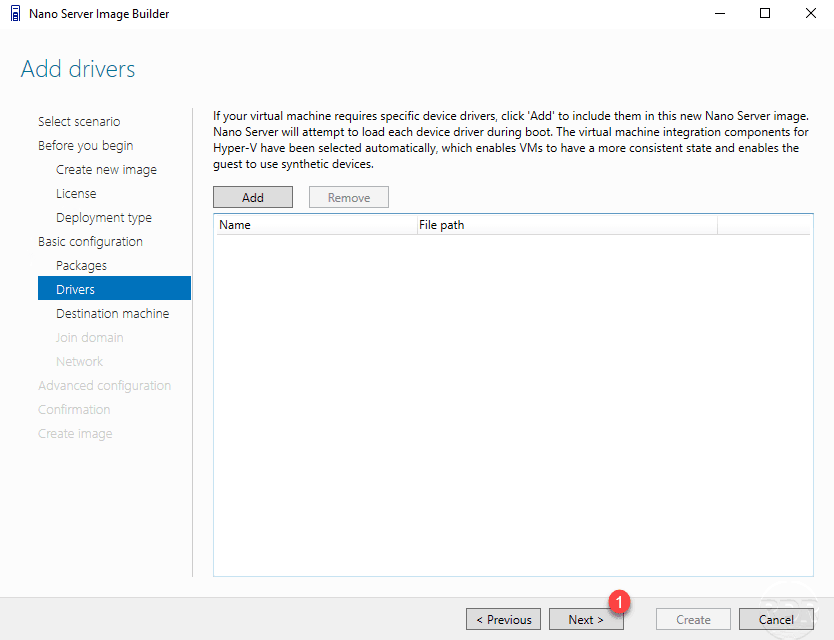

It is possible to add drivers to the installation, pass by clicking Next 1 .
Drivers

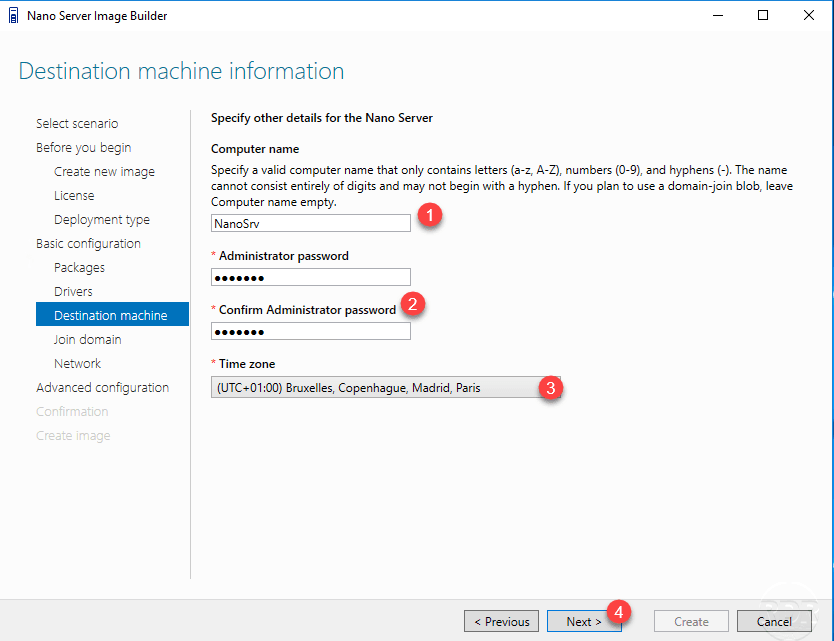

Enter the name of the machine 1 , enter the password of the Administrator account 2 , set the time zone 3 and confirm by clicking Next 4 .
Server Name and password for Administrator

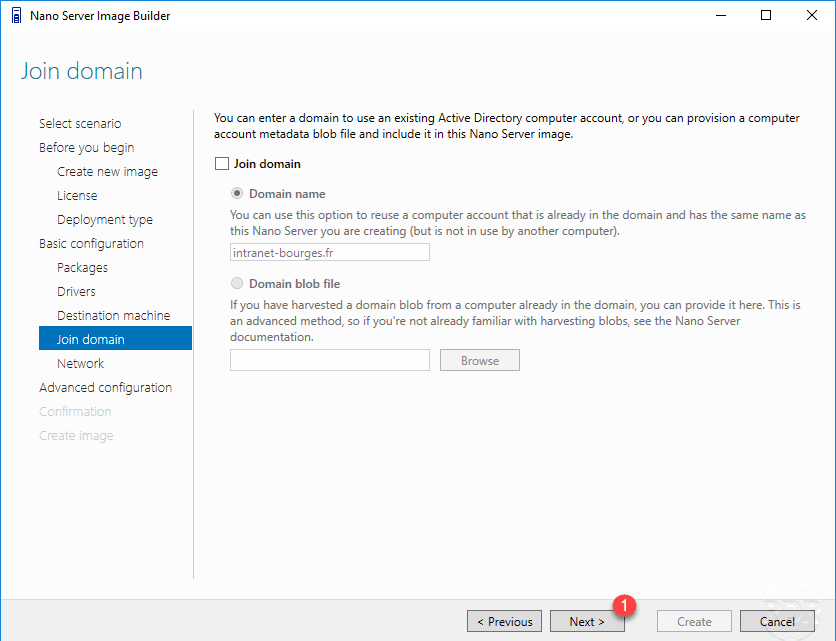

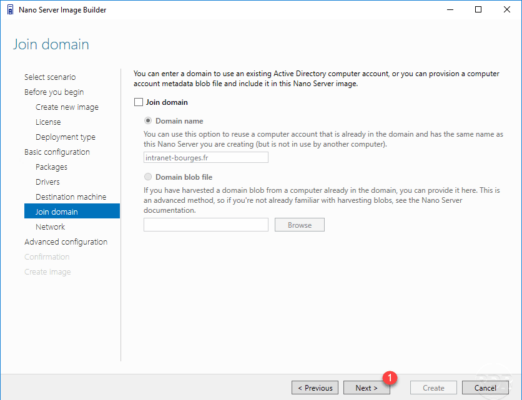

It is possible to join the server to the domain during the creation, skip the step by clicking Next 1 .
Nano Server Image Builder - Join domain

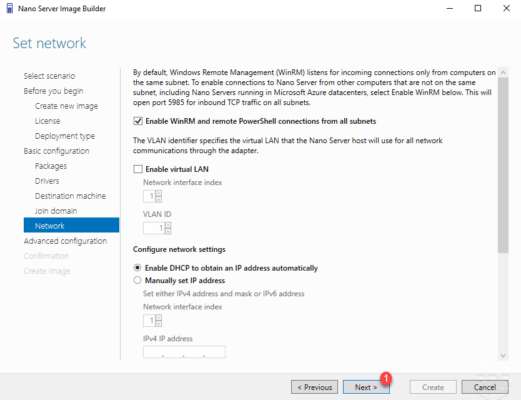

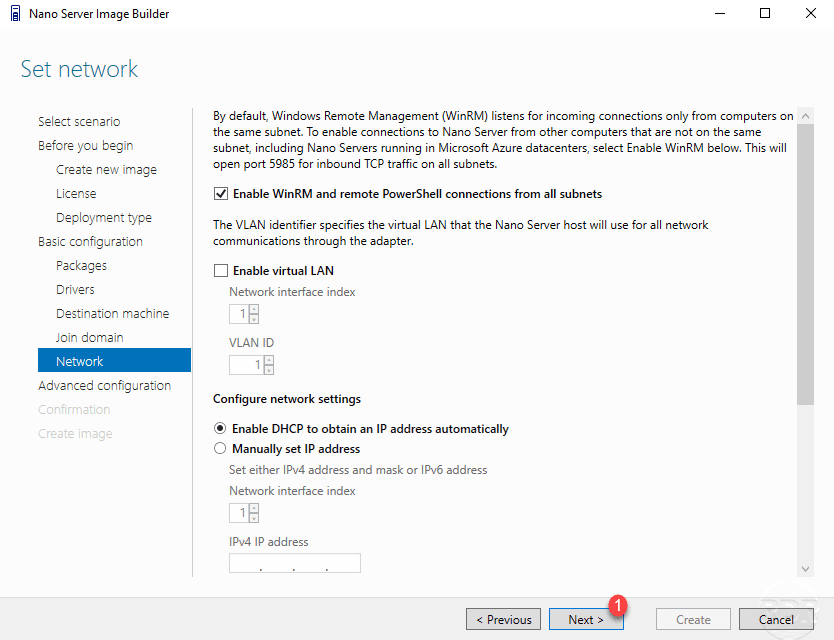

If necessary, it is possible to define the network parameters at the creation of the image, pass by clicking Next 1 .
Set Network

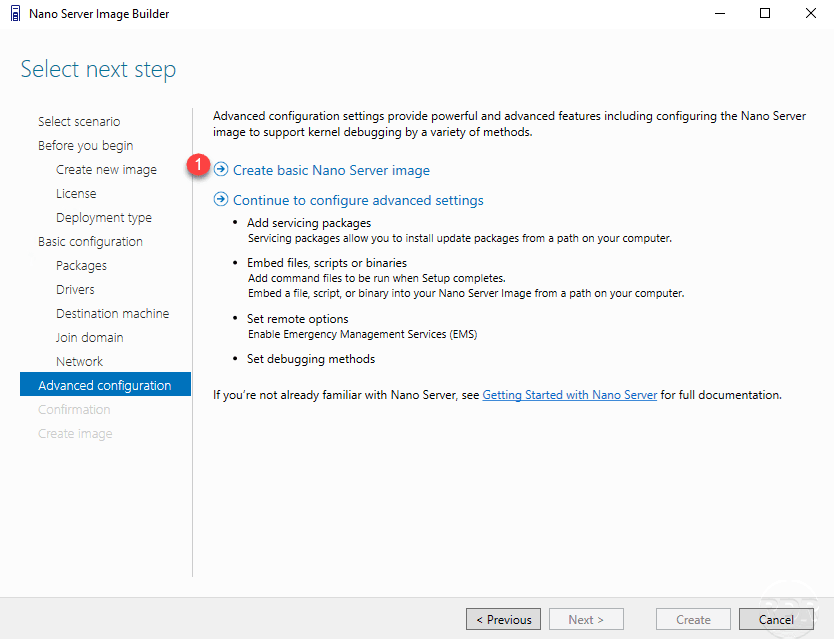

The configuration of the image is complete, it is possible to go further by choosing the advanced configuration option. Click on Create basic Nano Server Image 1 .
Create Nano ServerImage

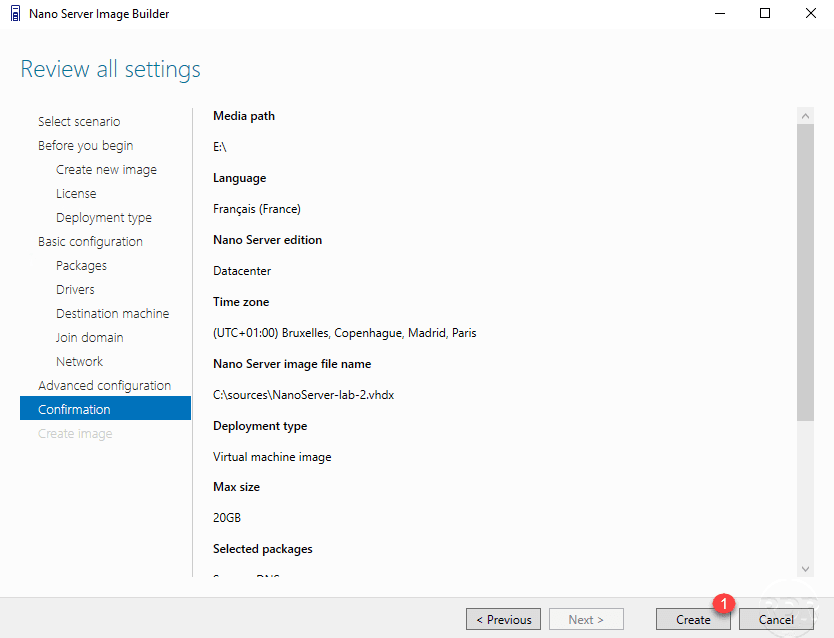

A summary of the image is displayed, click on Create 1 to confirm the generation.
Confirm

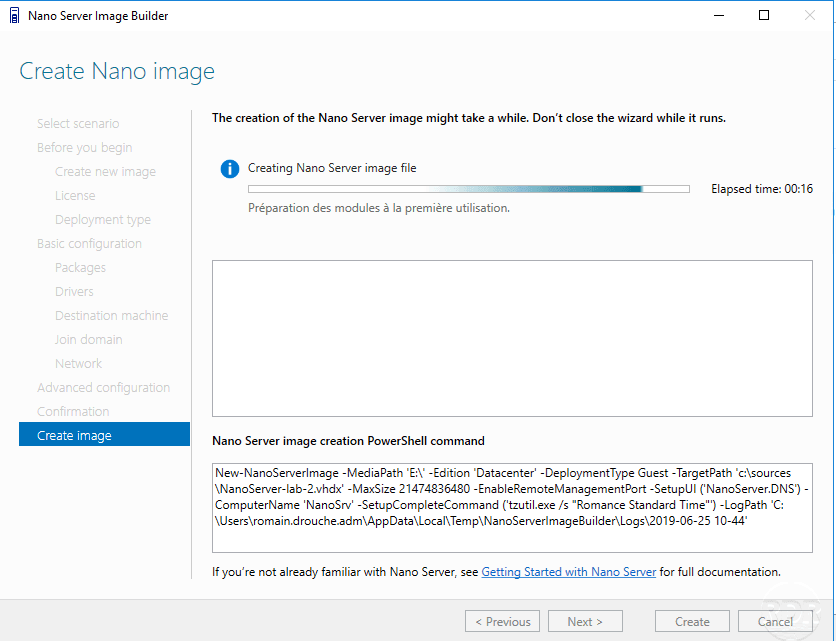

Wait while creating the image …

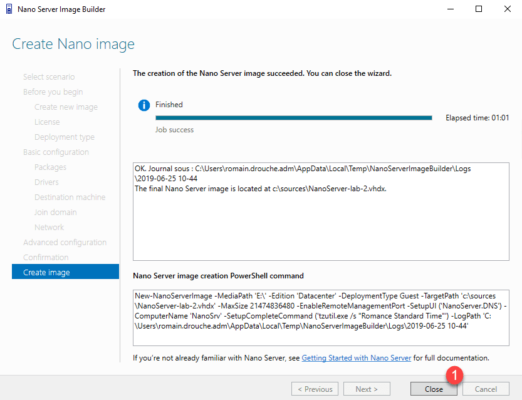

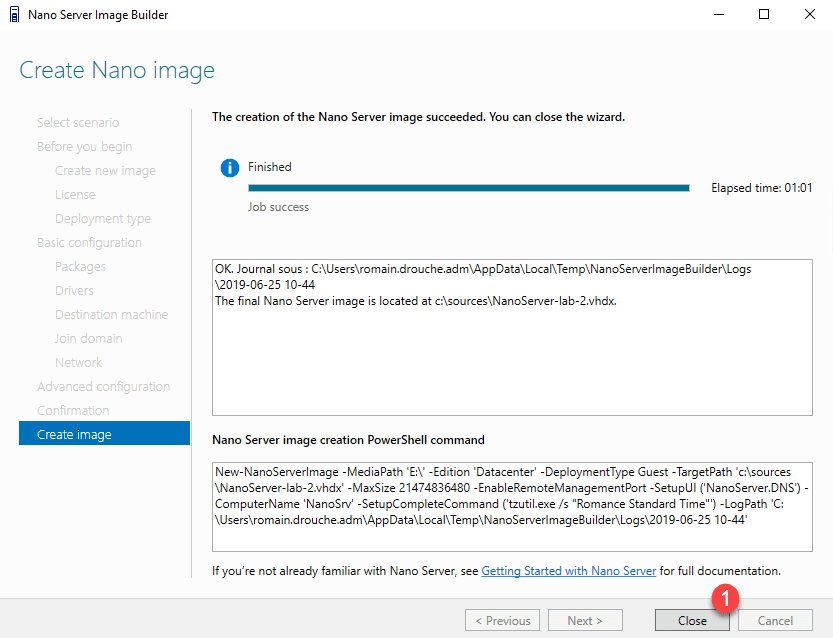

Once the image is generated, exit the wizard by clicking Close 1 .
Image generated

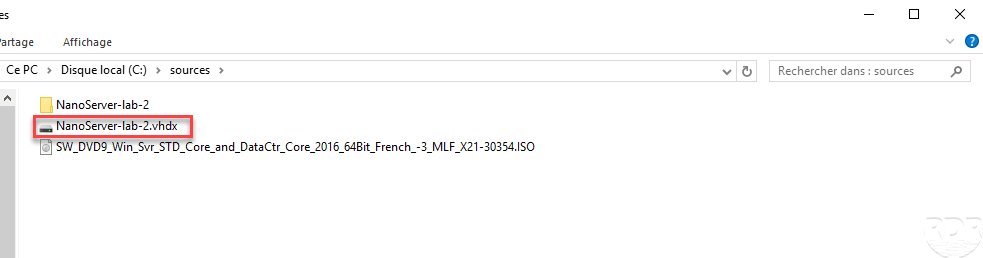

Open the configured location and verify that the vhdx file is present.
Virtual disk nano server

Use the virtual disk

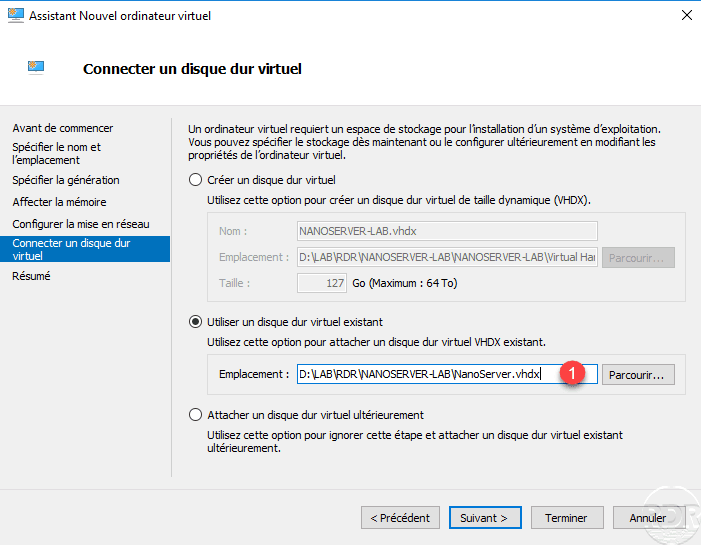

Move the virtual disk file to the desired location on a hyper-v server and then create a new virtual machine, in the wizard when configuring the virtual hard disk, select the disk of the generated image 1 .
Select disk Nano Server

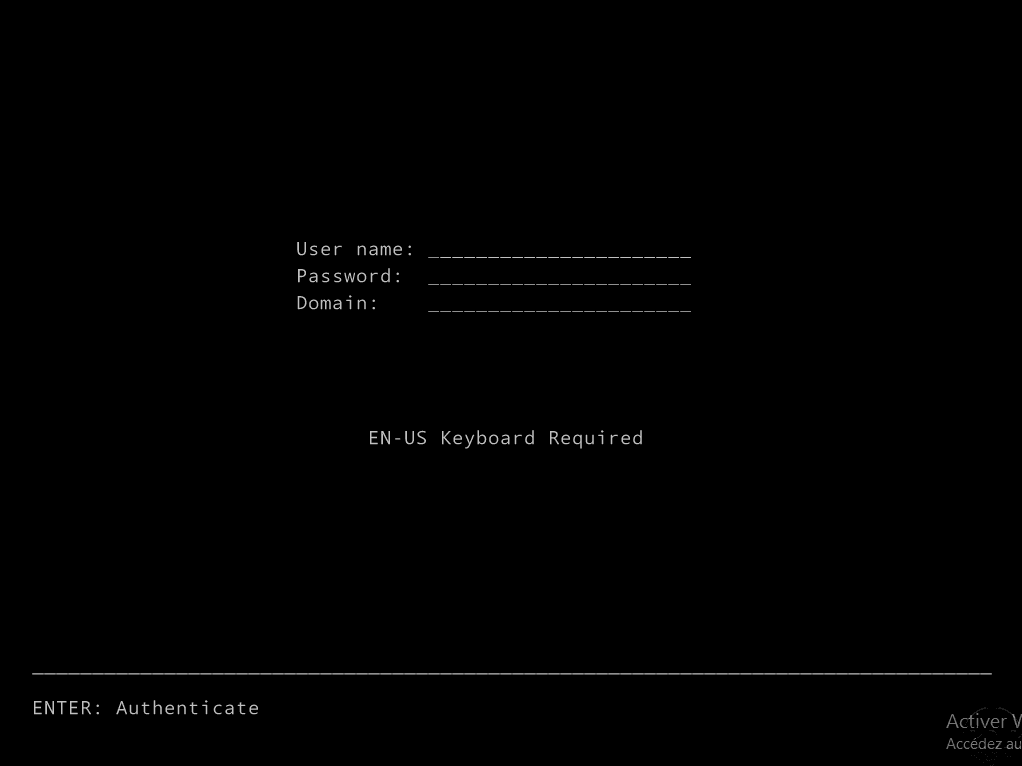

Start the virtual machine and log in with the Administrator account.
Nano Server Login Screen

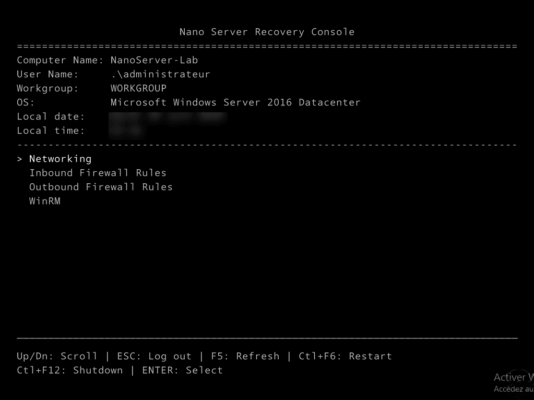

Once identified, a summary of the machine is displayed and a configuration menu is available that allows network configuration, firewall and WinRM activation for remote administration.
Nano Server Console
