DNSSEC: Sign a DNS Zone with Windows Server

Presentation

DNSSEC (Domain Name System Security Extensions) is an extension of the DNS protocol that adds security to the DNS protocol by signing the records by a public / private key system.

This extension allows the client to verify that the response received is valid and has not been changed by a man-in-the-middle attack.

This extension is standardized by the following RCF :

To illustrate this tutorial, we are going to have how to sign a zone on domain controller.

Sign a zone with DNSSEC on Windows Server

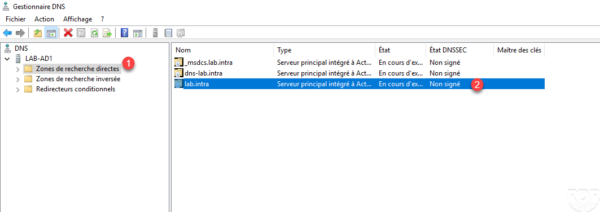

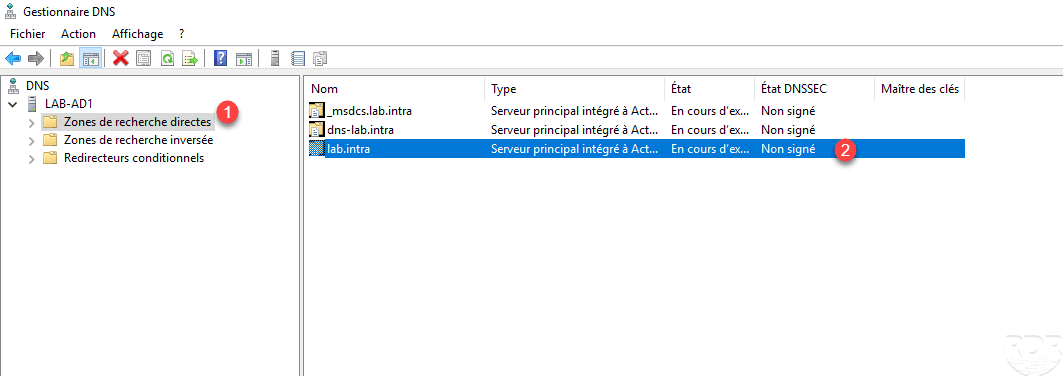

Open the DNS Manager console and go to the Forward Lookup Zones 1 node. It can be seen that the DNSSEC state of the lab.intra zone is Unsigned 2 .
Zones overview

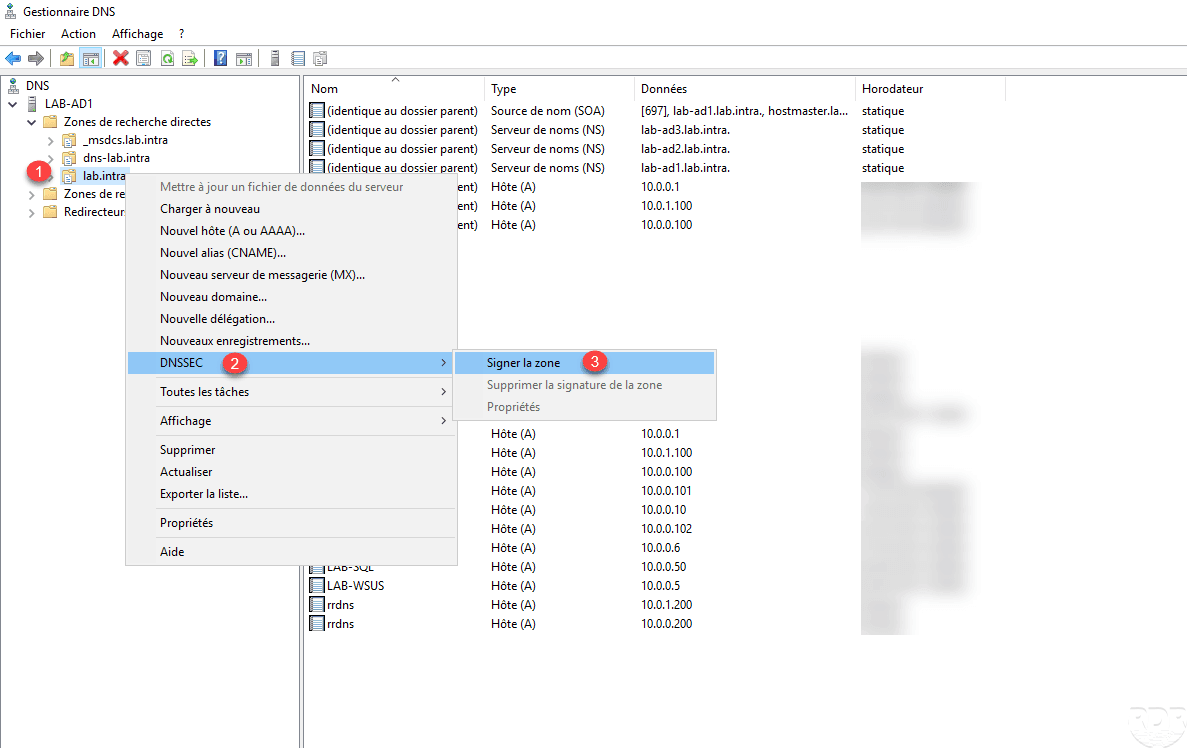

Right-click on the zone to sign 1 , go to DNSSEC 2 then click on Sign zone 3 to launch the wizard.
Param DNSSEC for zone

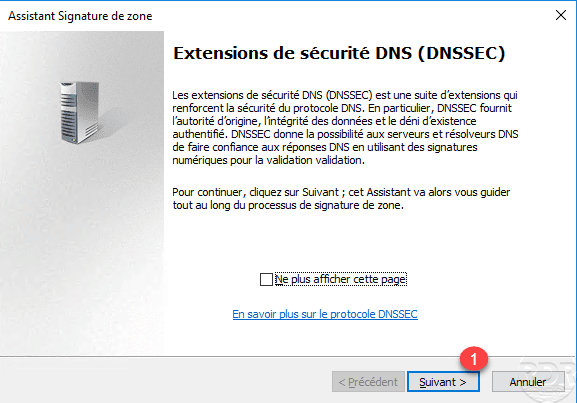

When launching the wizard, click Next 1 .
Wizard DNSSEC configuration

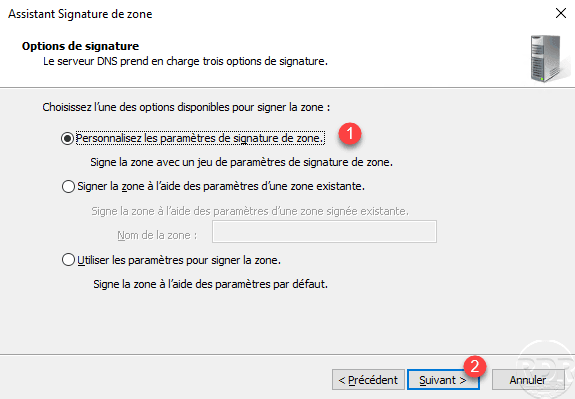

Choose the option Customize zone signature settings 1 and click Next 2 .
DNSSEC signature options

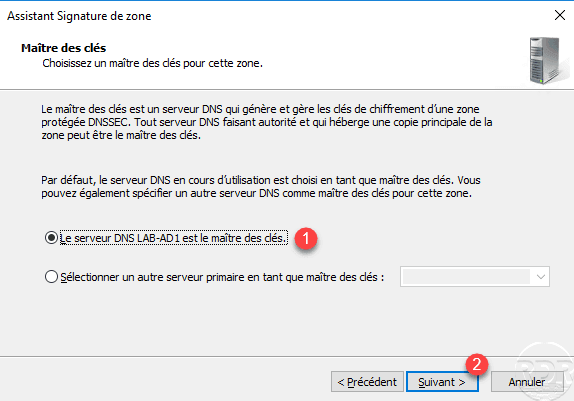

Choose the server to put keys 1 and click Next 2 .
Master of keys for DNSSEC

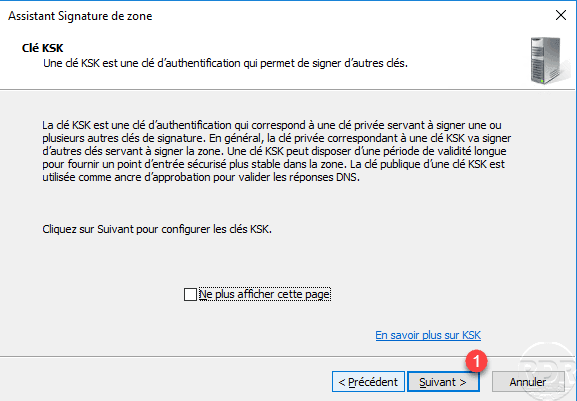

A summary of the KSK key is displayed (this is used to sign a zone), click on Next 1 .
KSK key

Click on Add 1 .
Wizard DNSSEC add KSK

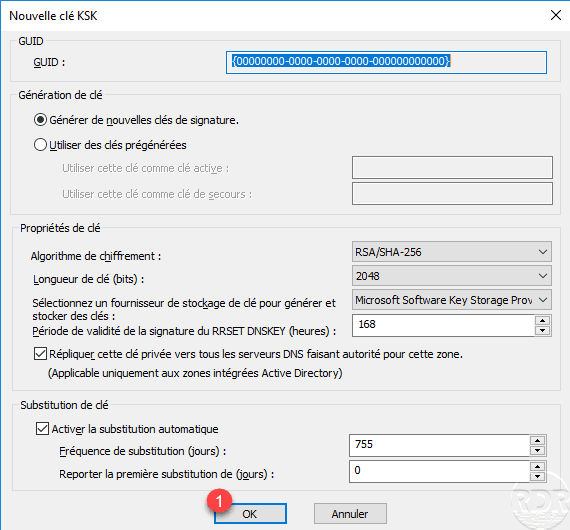

Click OK 1 to validate the parameters of the KSK key.
Params key KSK

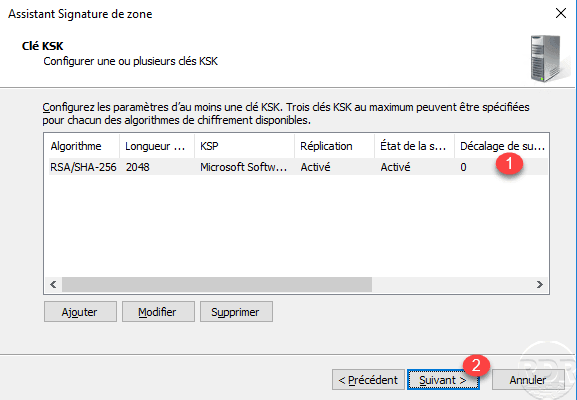

KSK key is added 1 click Next 2 .
Key KSK added

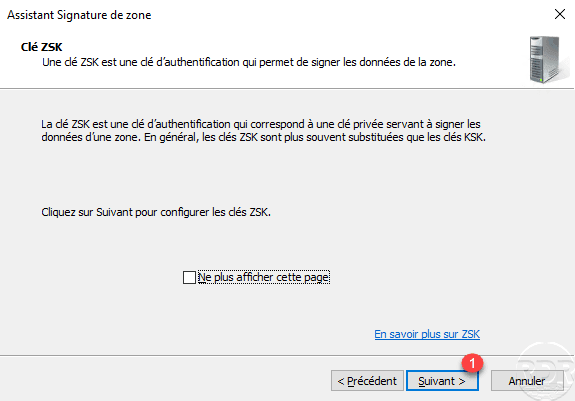

A summary of the ZSK key (data / record signature) is displayed, click Next 1 .
DNSSEC - key ZSK

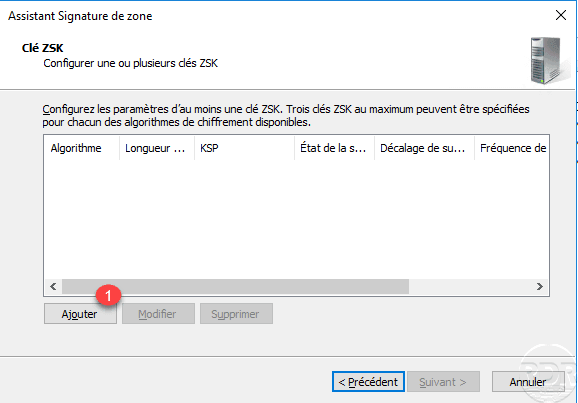

Click Add 1 to configure the ZSK key.
Add ZSK key

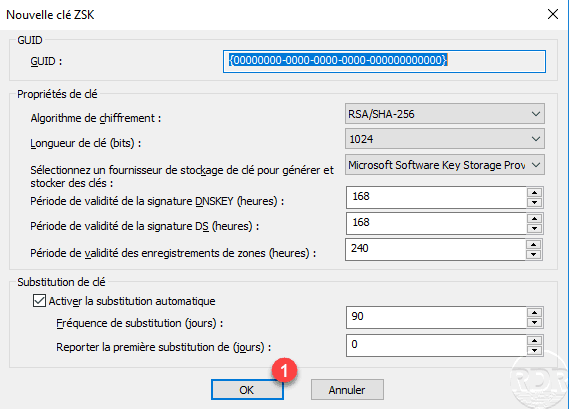

Click OK 1 to validate the parameters of the ZSK key.
DNSSEC - key ZSK param

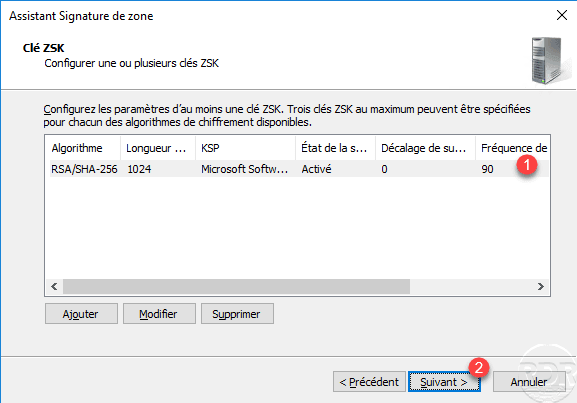

The key ZSK is added 1 , click Next 2 .
DNSSEC - key ZSK added

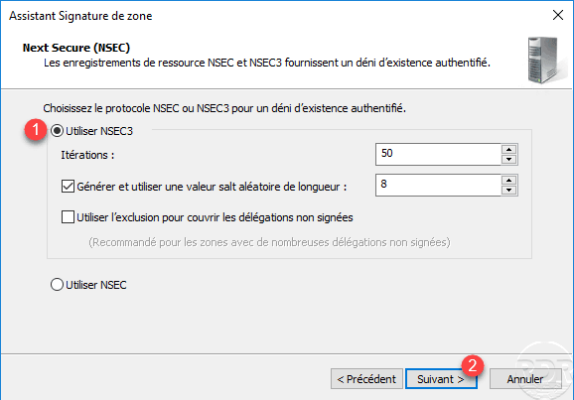

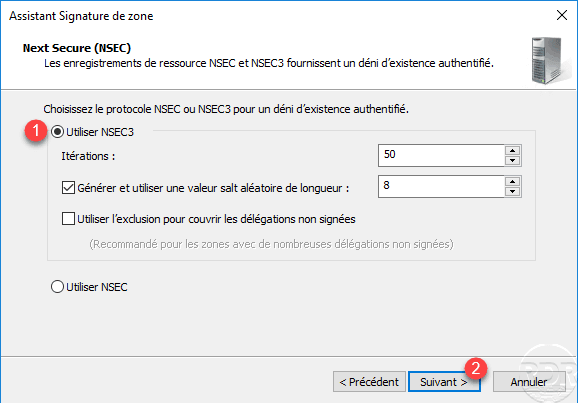

Select the protocol NSEC3 1 then click Next 2 .
DNSSEC - select NSEC3

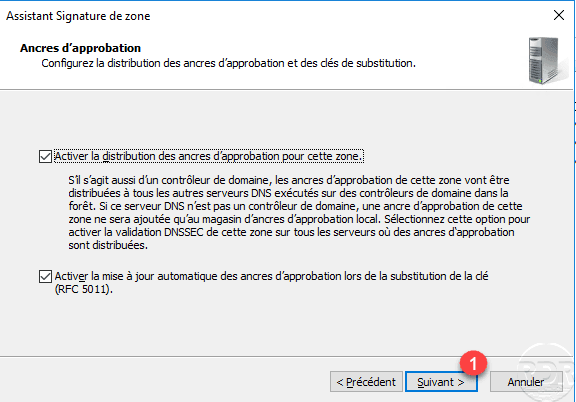

Leave the default options on the configuration of the approval anchors, click Next 1 .
Anchor config

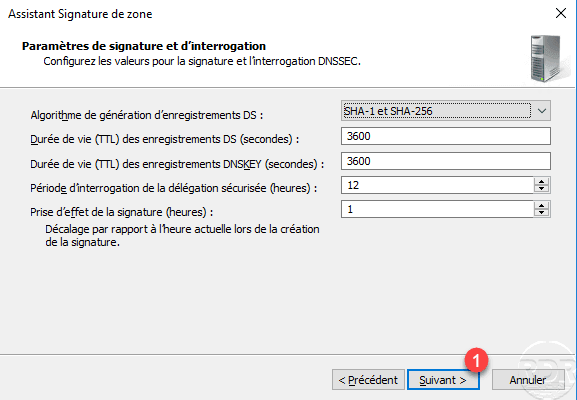

Leave the signature settings by default, click Next 1 .
DNSSEC - param signature

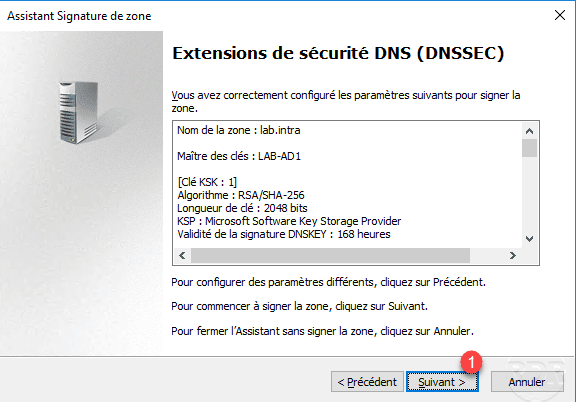

A summary of the DNSSEC configuration is displayed, click Next 1 to validate it.
Summary config dnssec

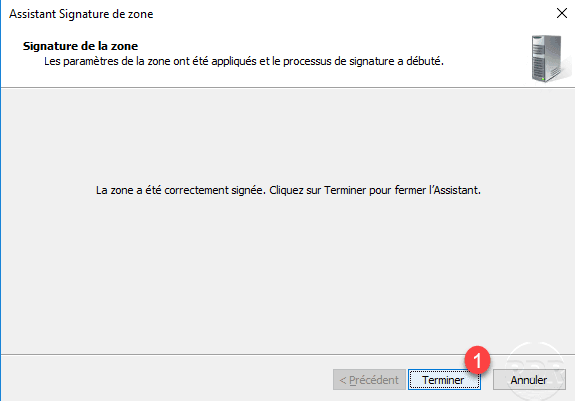

The configuration applied to the zone, leave the wizard by clicking Close 1 .
signed zone

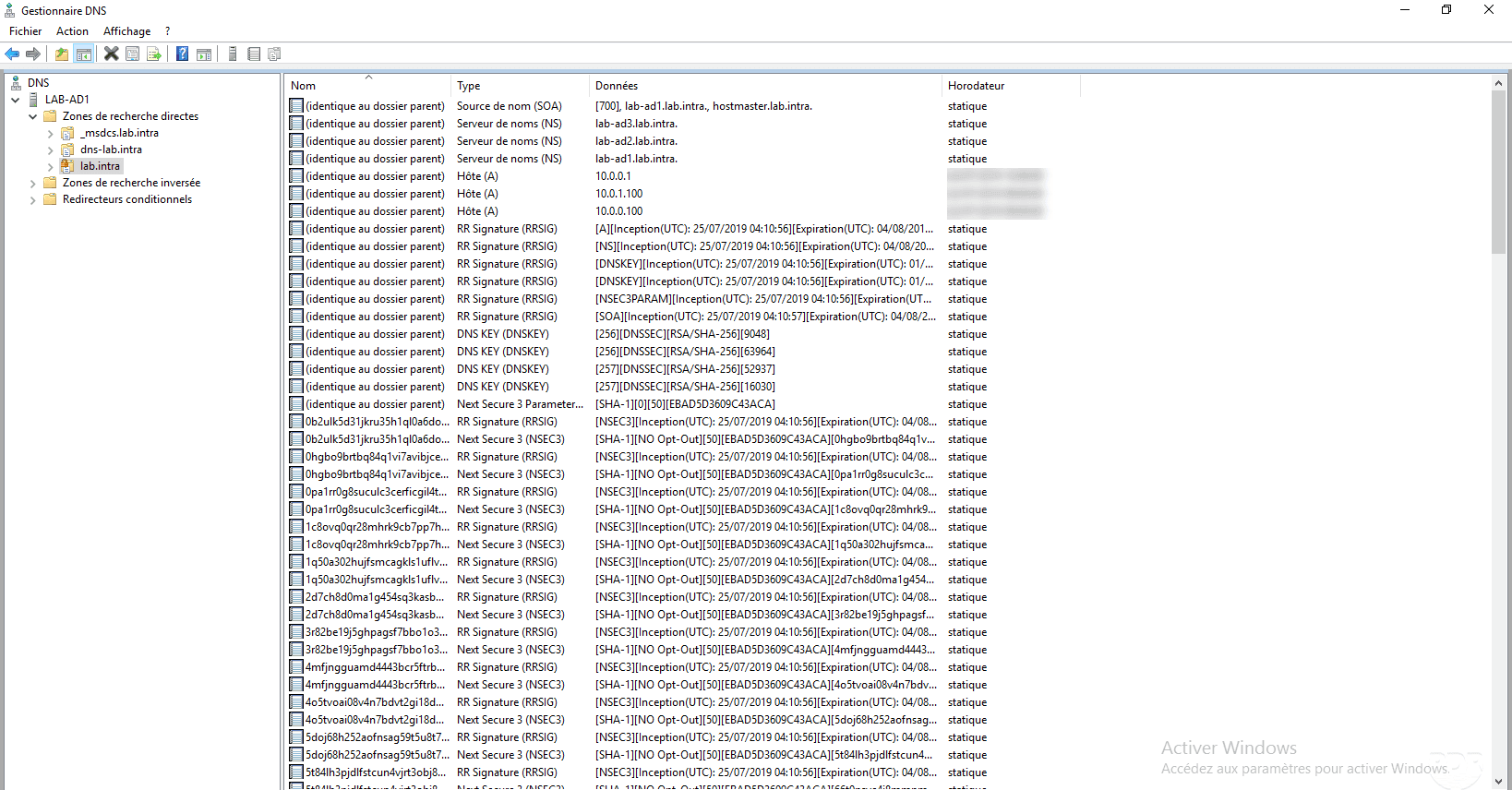

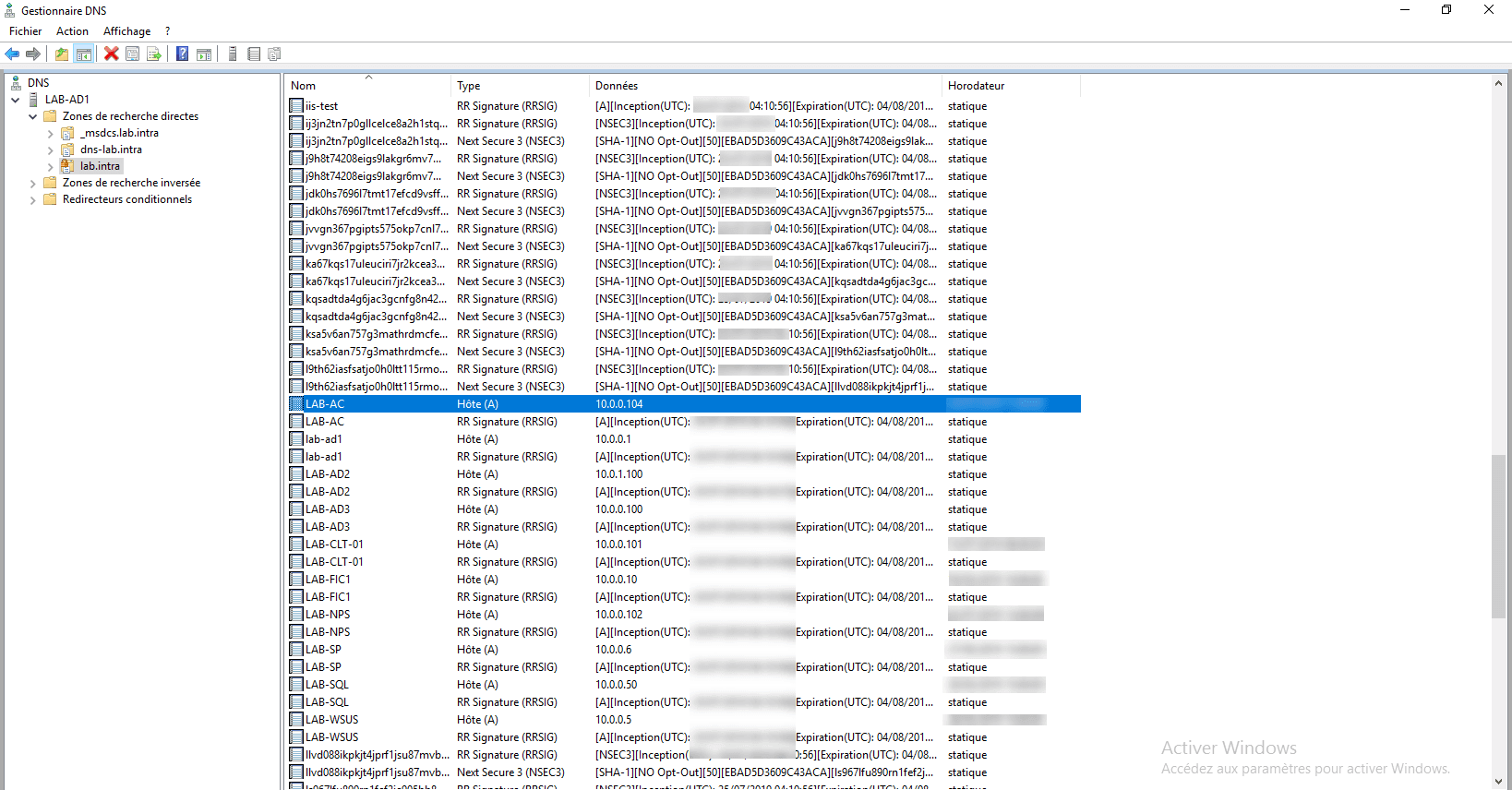

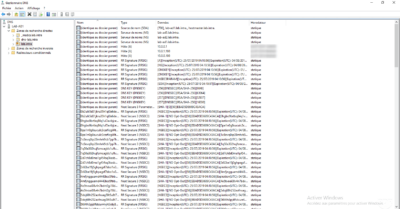

Refresh the zone in the DNS Manager console, we see that a padlock has been added to the zone folder to indicate that the zone is singed with DNSSEC and several RRSIG, DNSKEY, NSEC3 … records have been added. Each record contains its signature with an RRSIG record of the same name.
DNSSEC - zone DNSSEC - zone

Use DNSSEC

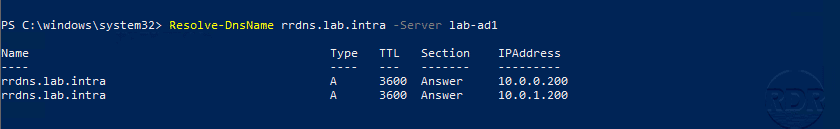

On a DNS client node, open a PowerShell command prompt and enter the following command:

Resolve-DnsName <RecordInZone> -Server <DNSServer>

resolver-dnsname
The DNS server returned a “normal” response, without any signing information.

To force a query and especially a secure response, add the -DnssecOK parameter to the previous command.

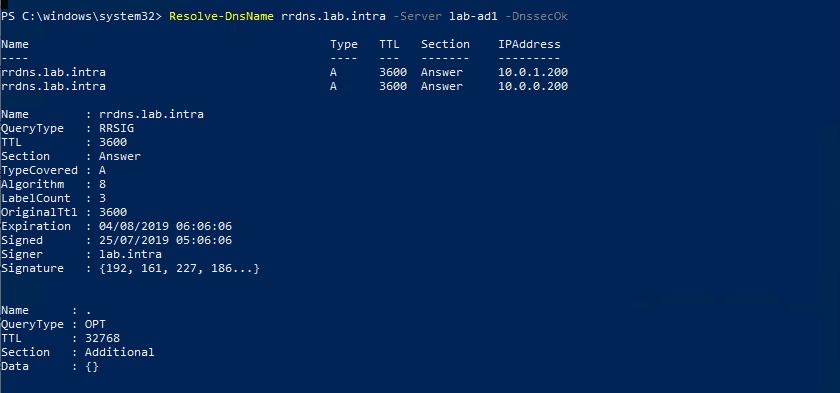

Resolve-DnsName <RecordInZone> -Server <DNSServer> -DnssecOK

resolver-dnsname
We can see the signature parameters in the answer.

Group Policy for a DNSSEC Resolution

As we have just seen, to recover a secure record, it is necessary to inform Windows to do so. In order for the extensions in the domain to use DNSSEC, we will add a Group Policy that will configure the NRPT (Name Resolution Policy) table of the computers to indicate that the zone is signed.

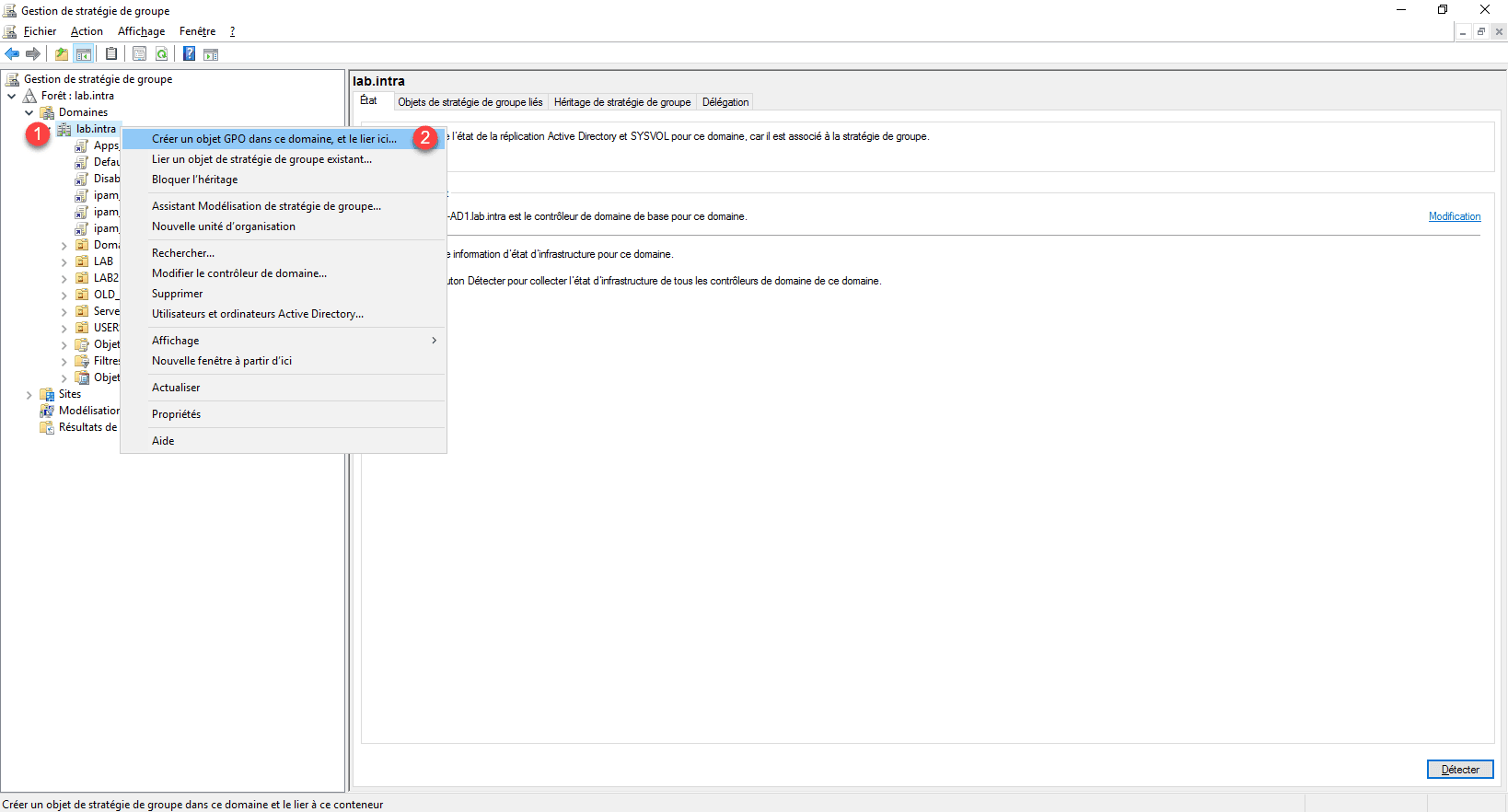

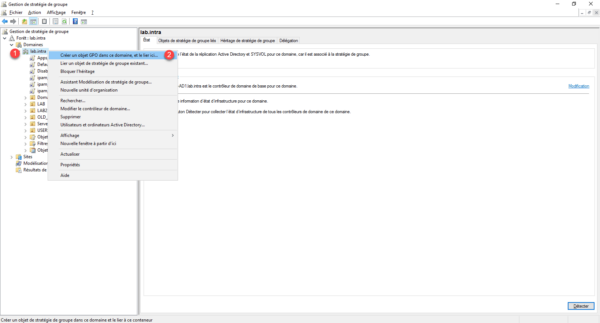

On a domain controller, open the Group Policy Management console, right-click on domain 1 and click Create GPO in this domain and link it here 2 .
New GPO

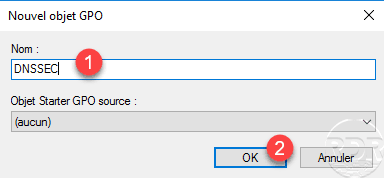

Name the GPO 1 then click OK 2 .
Nammed GPO for DNSSEC

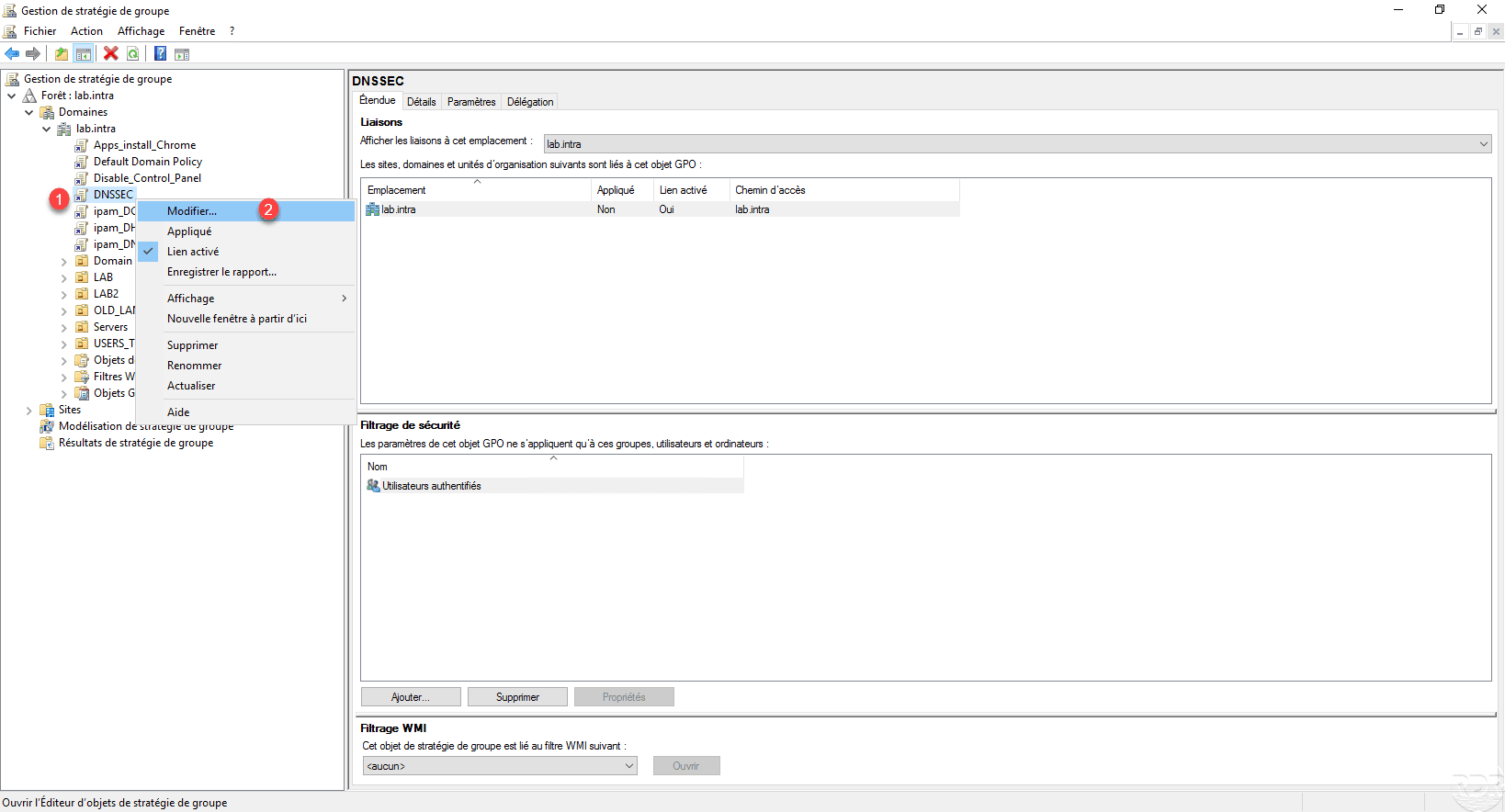

Right click on the added strategy 1 and click on Edit 2 .Edit GPO

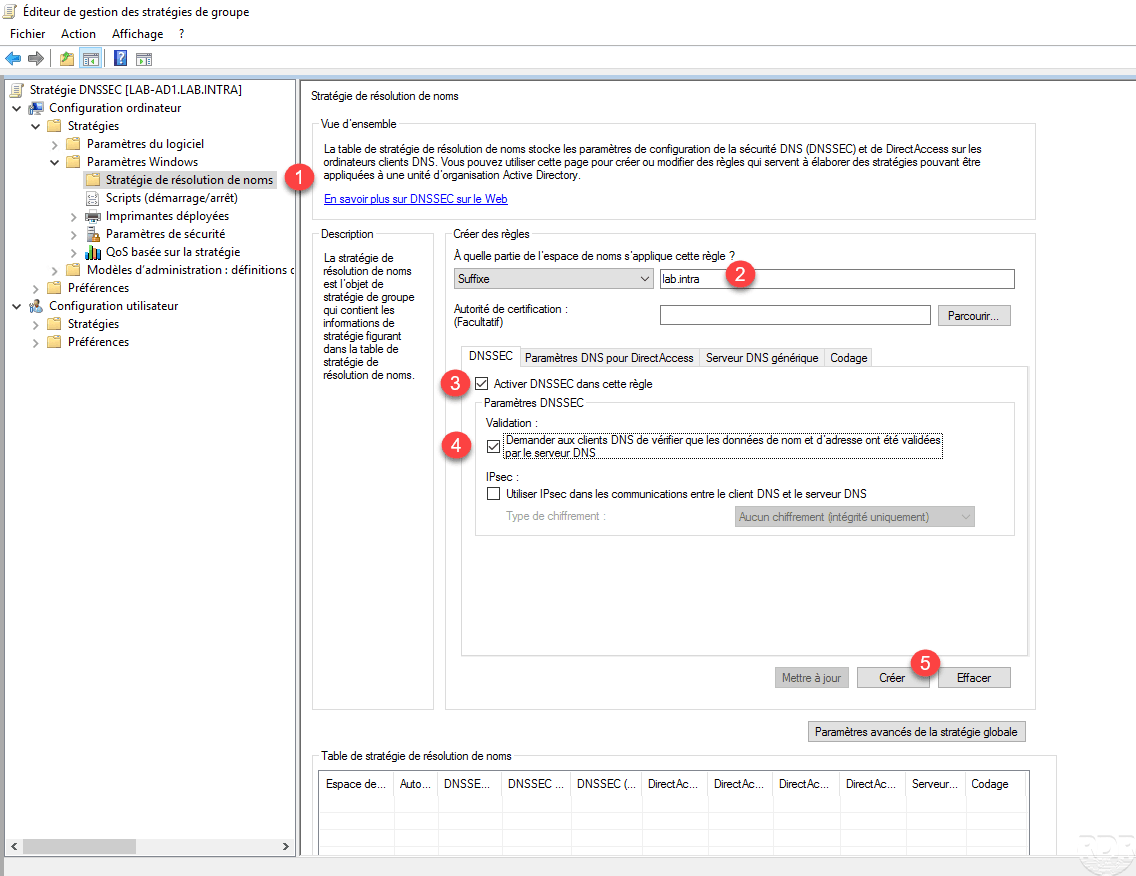

Go to Computer Configuration / Windows Settings / Name Resolution Policy 1 . Enter the DNS suffix of the signed area 2 , check that the Enable DNSSEC in this rule 3 and Ask DNS clients to verify address name data check boxes have been validated by the DNS server 4 are ticked and click on Create 5 .
Config DNSSEC

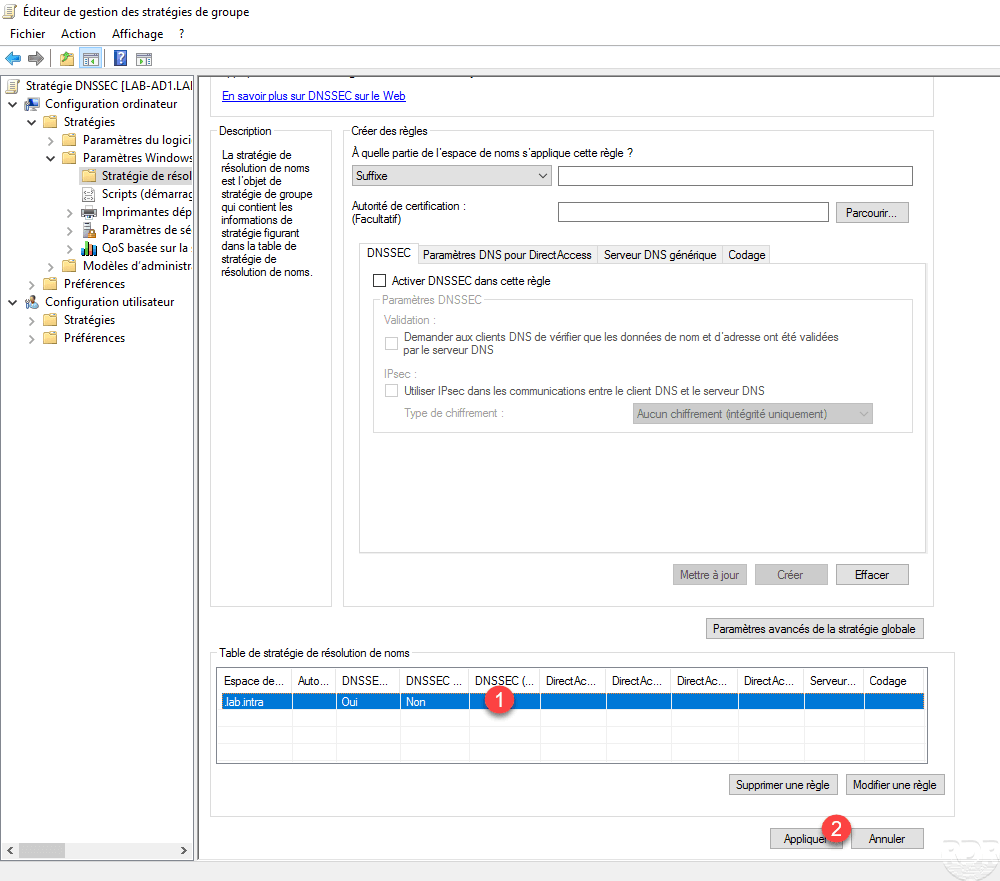

The domain has been at the name resolution strategy table 1 , click Apply 2 .
zone added

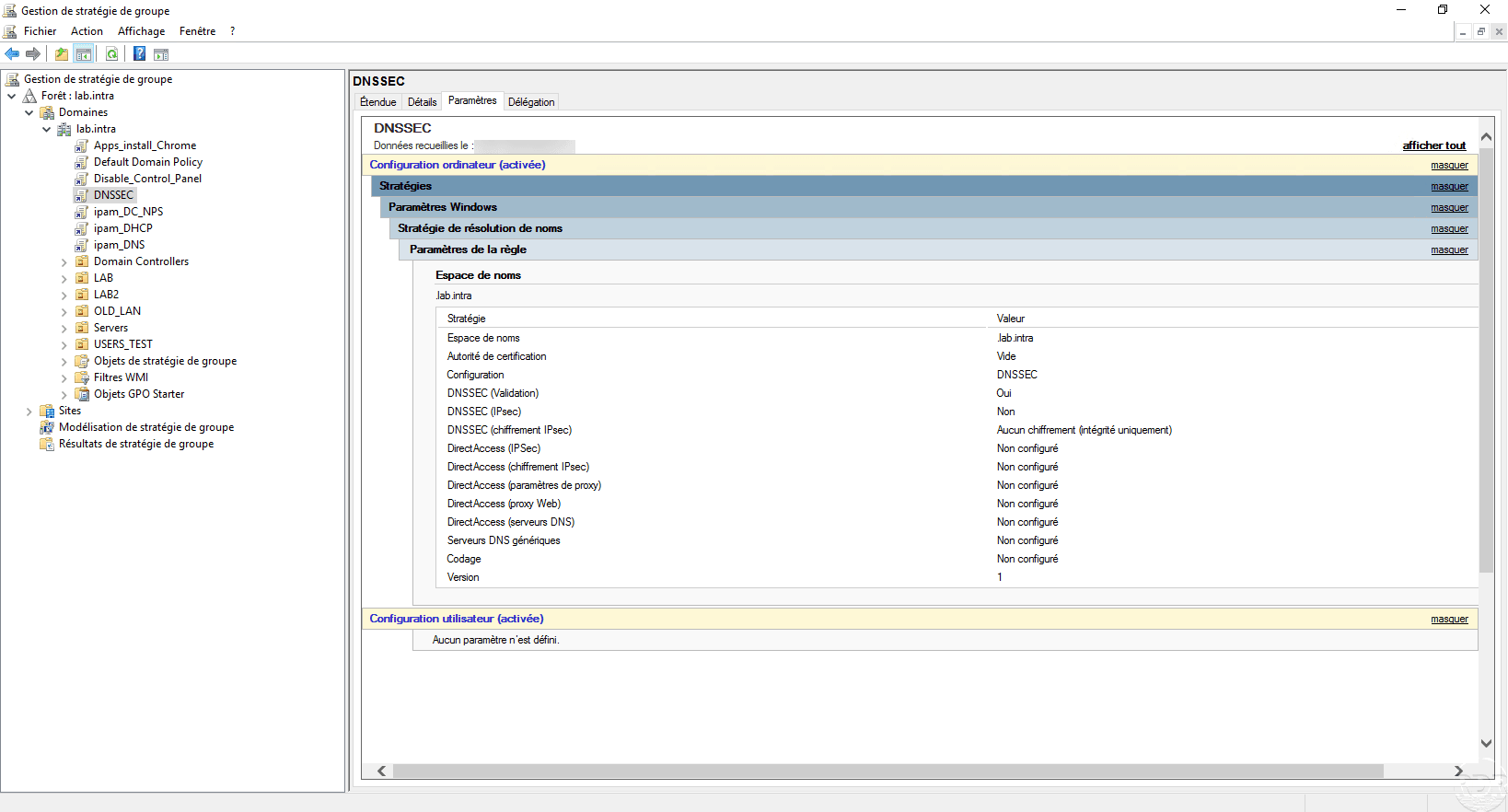

Summary of the strategy:
GPO DNSSEC Overview

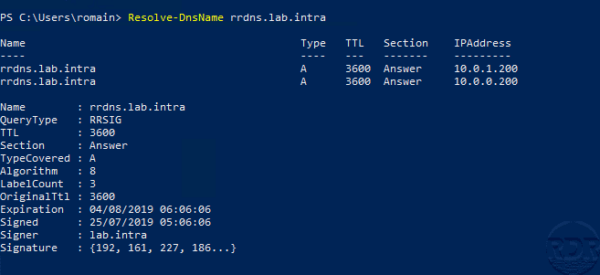

On a node in the domain where the policy is applied (gpupdate), open a PowerShell command prompt and enter the following command:

Resolve-DnsName <RecordInZone>

The command must return the IP address with the signature information.
DNSSEC resolve name
