How to deploy an RDS Farm Windows 2012R2/2016/2019

In a “small” environment, it is possible to deploy a remote desktop environment (RDS) on a single server. The tutorial: Deploying an RDS server – Remote Desktop Service explains how to do it.

In this tutorial, we will see how to set up a RDS farm in Windows 2012R2 / 2016/2019 with the following features:

  • Remote Desktop Session Host (x2)
  • Service broker for the distribution of connections

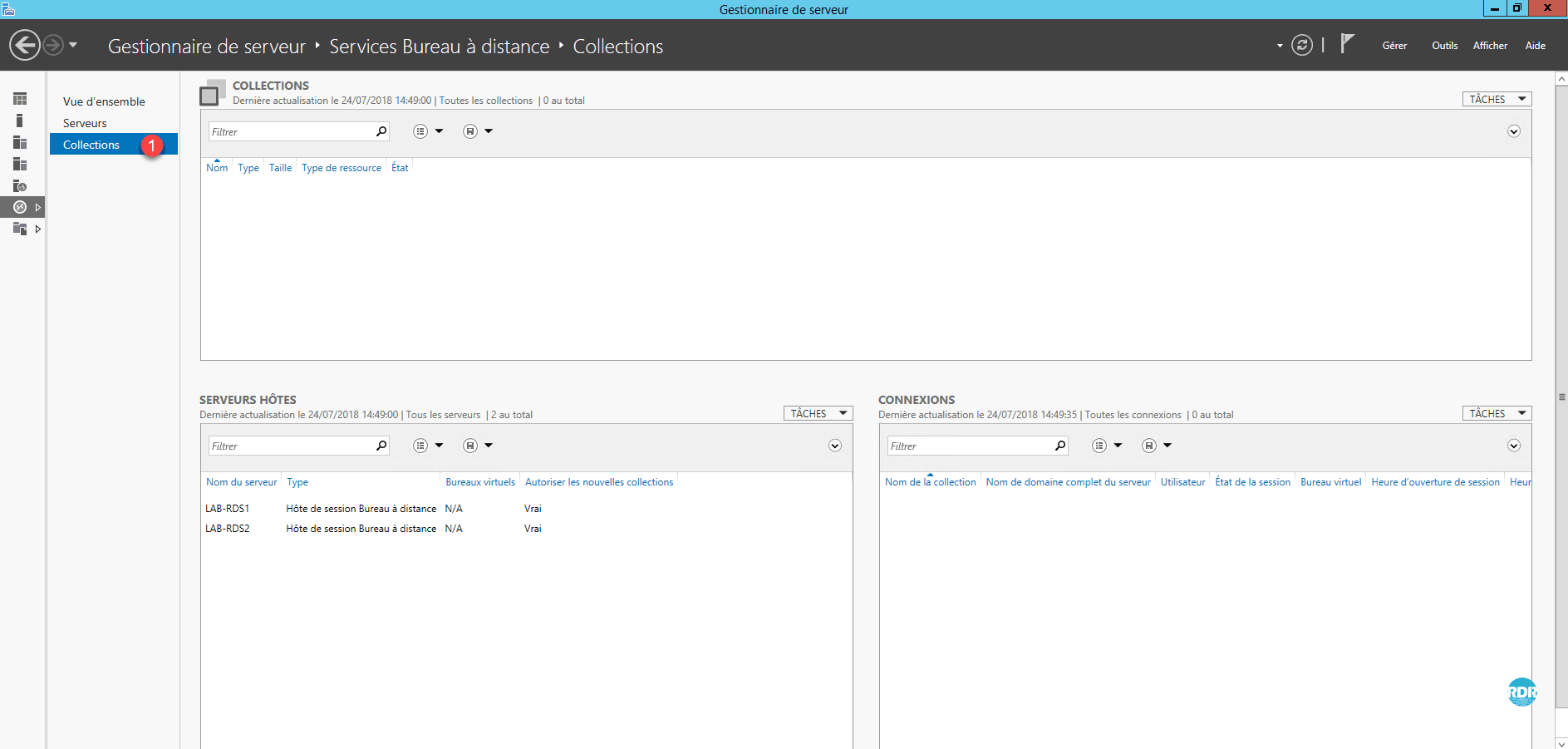

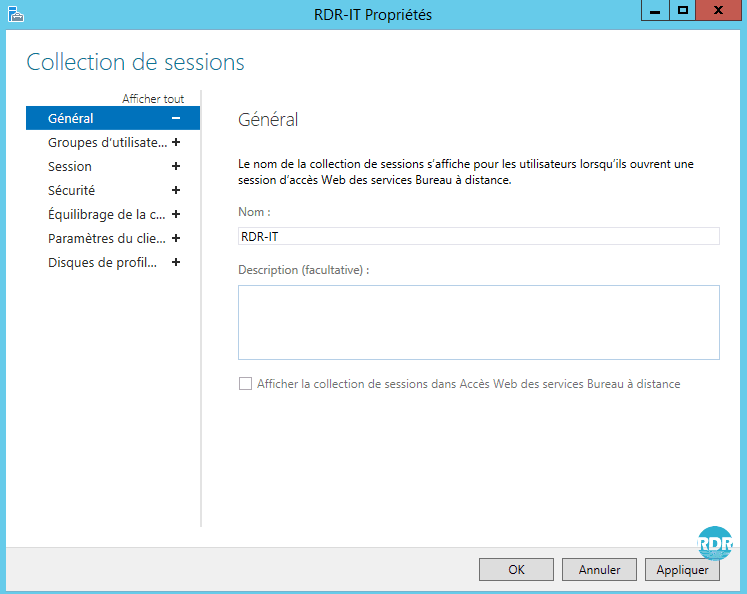

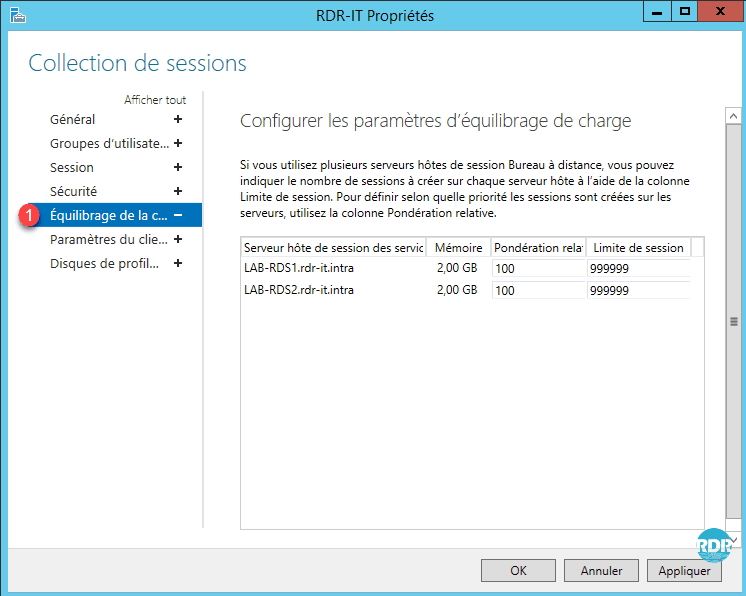

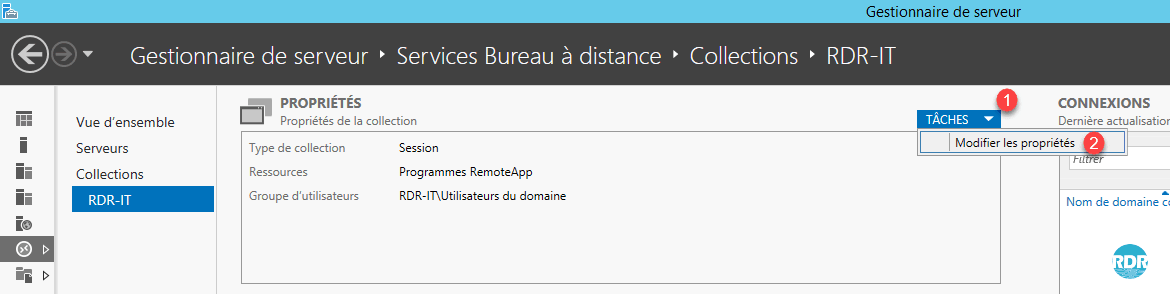

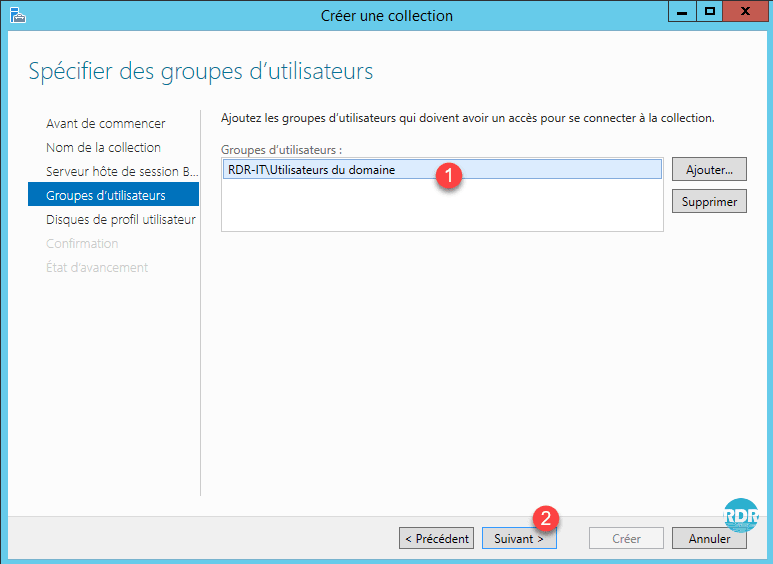

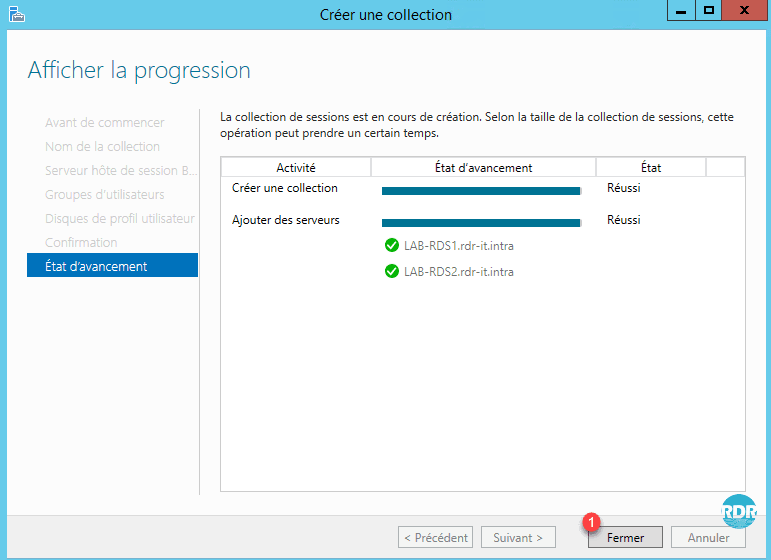

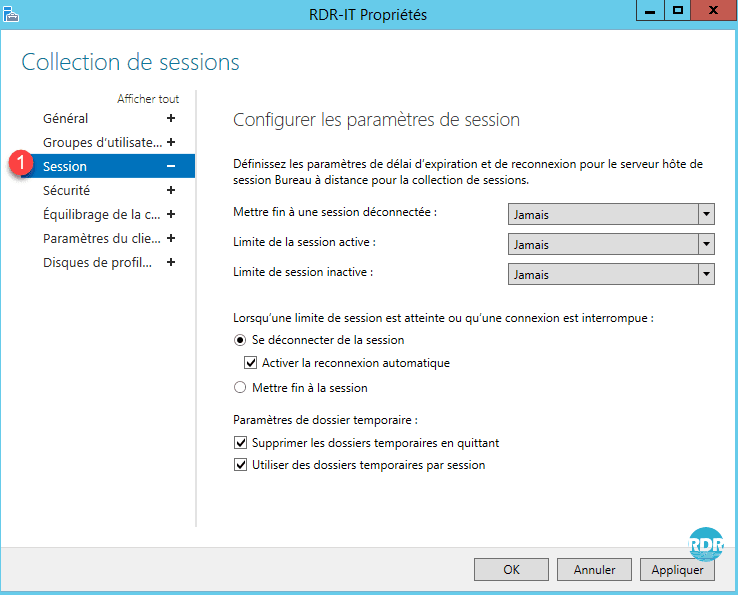

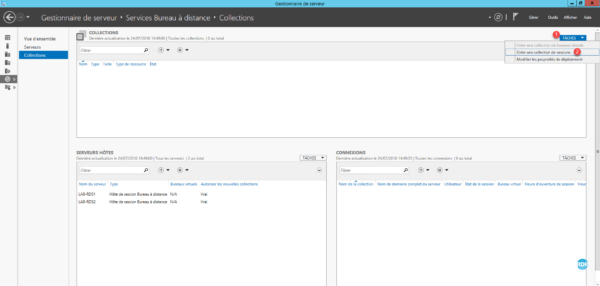

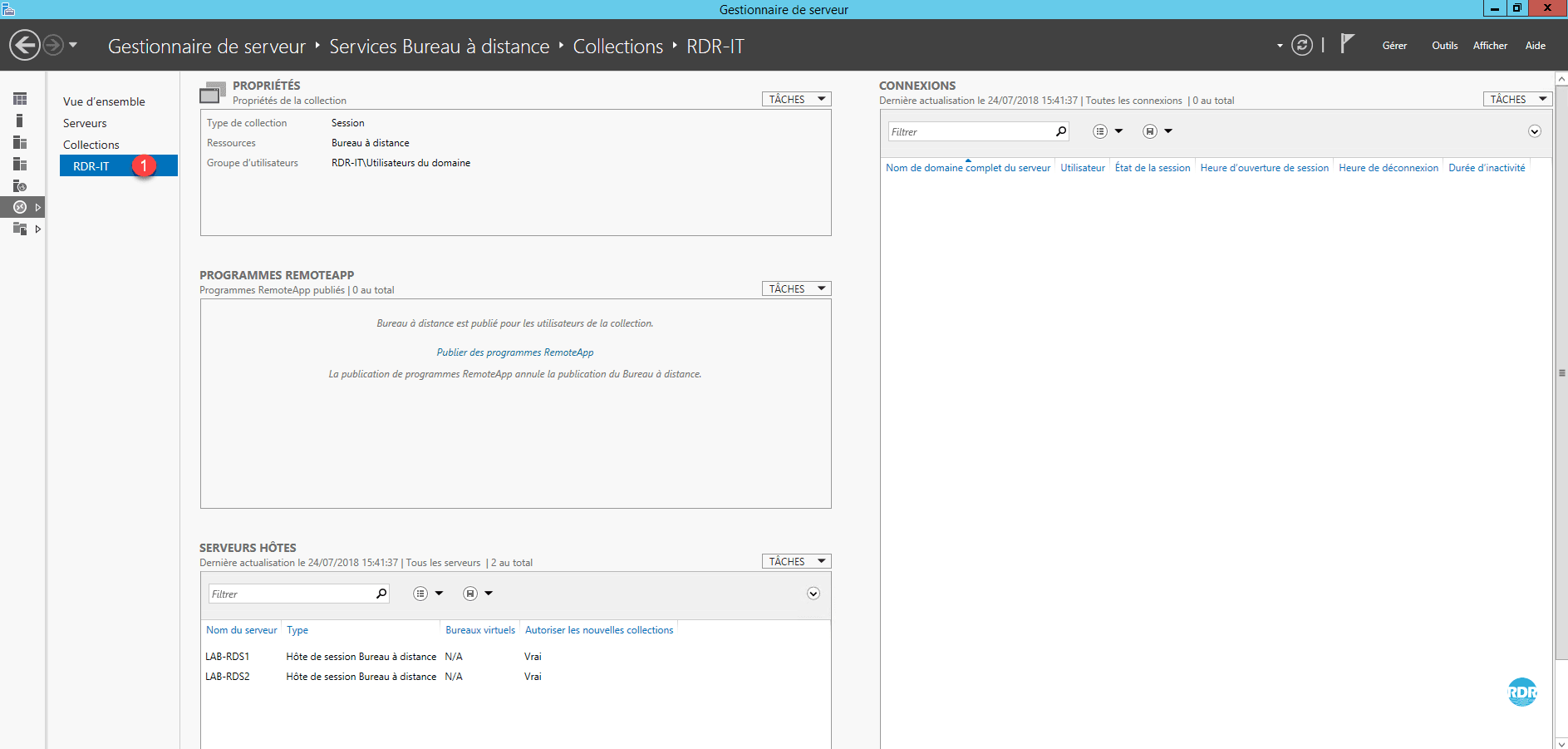

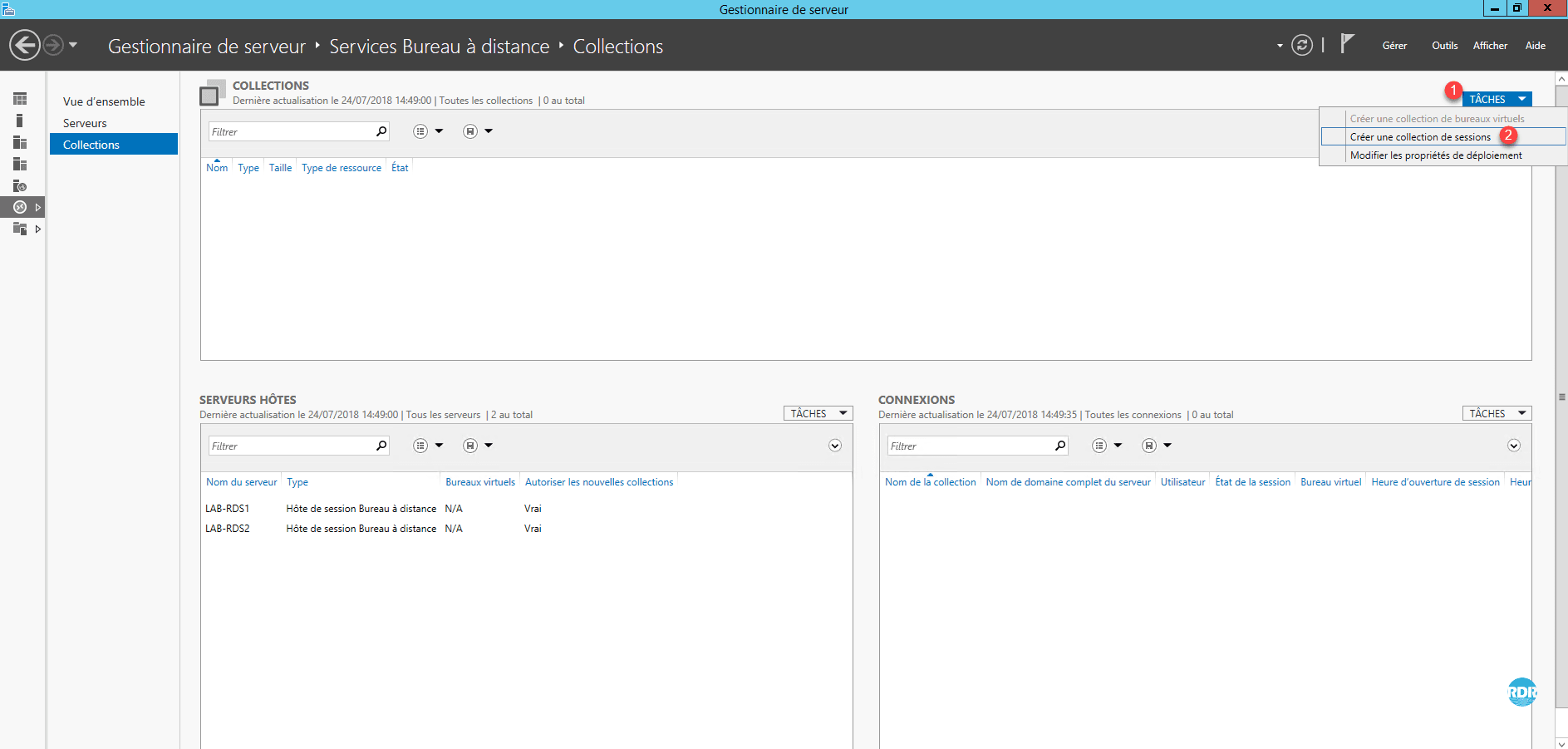

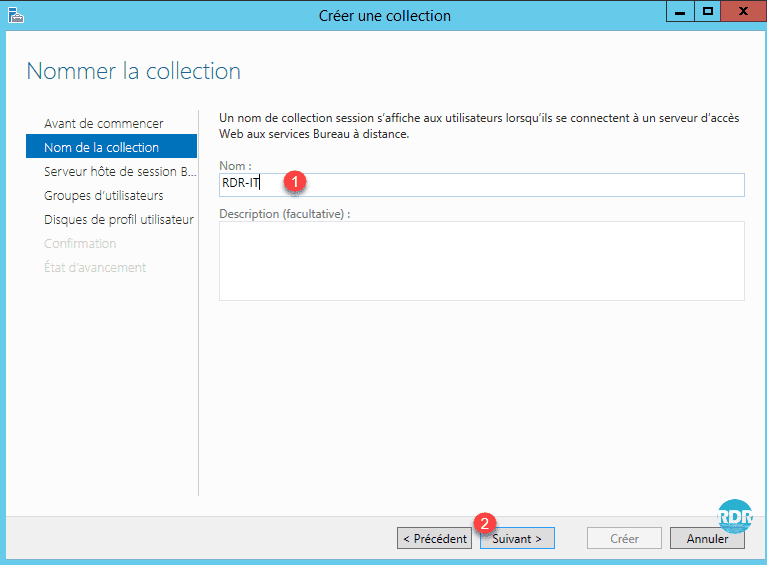

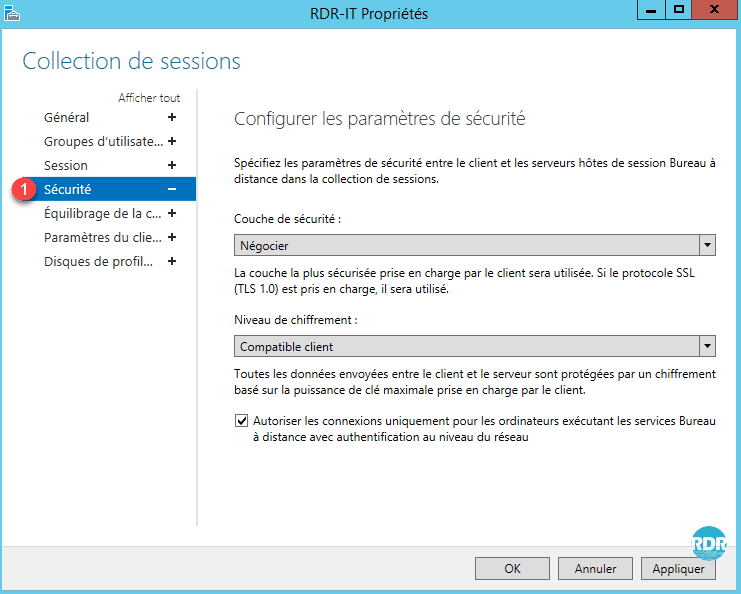

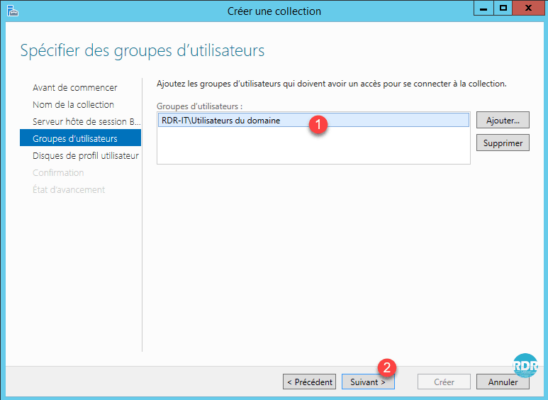

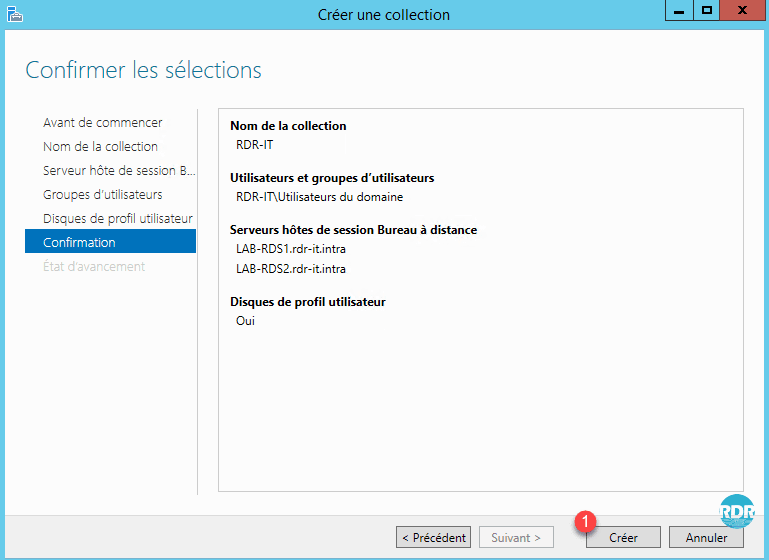

  • Setting up a collection

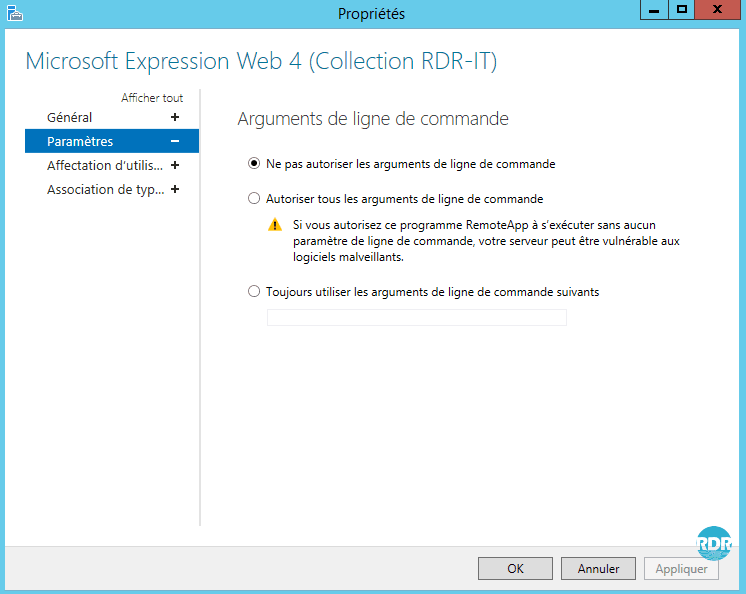

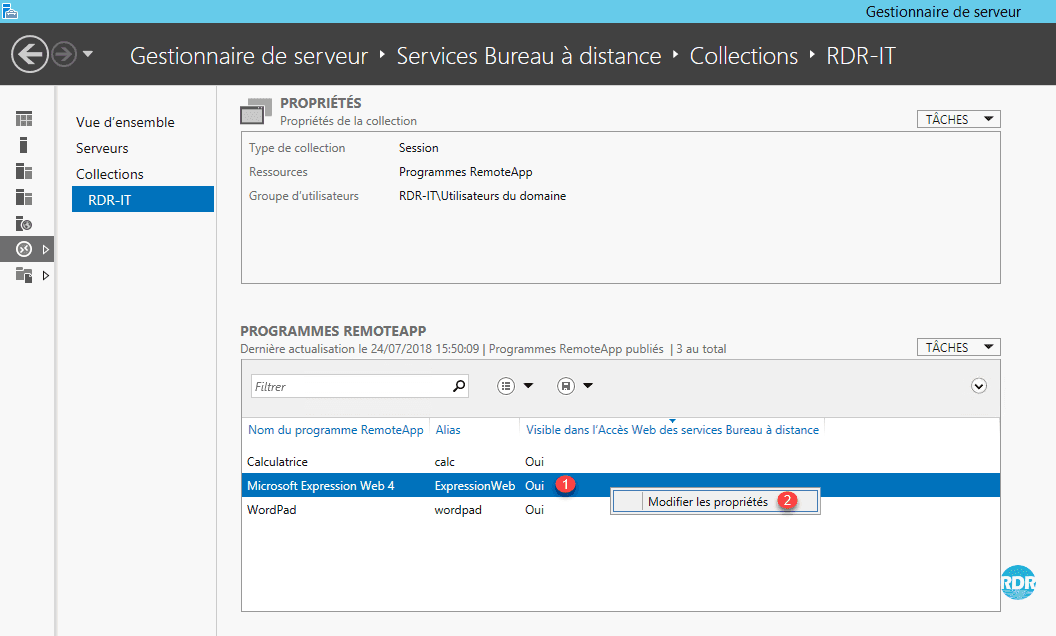

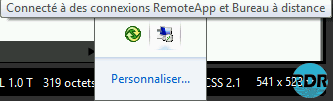

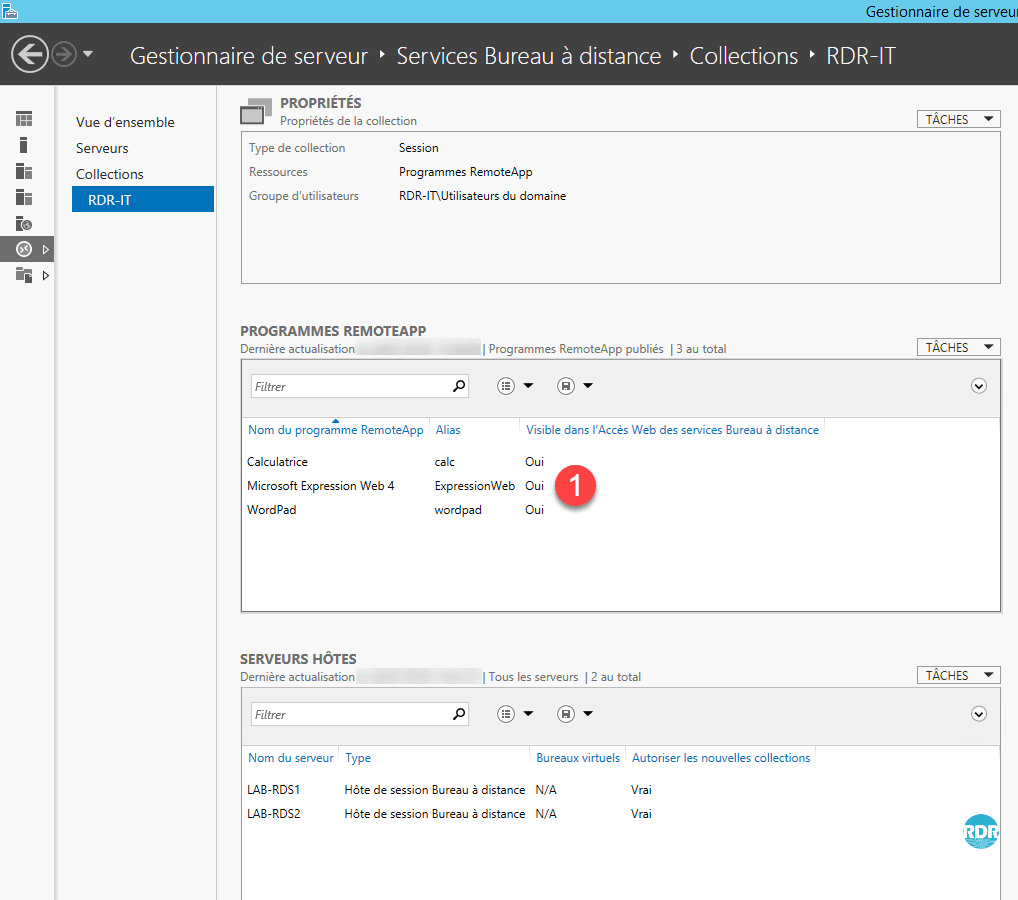

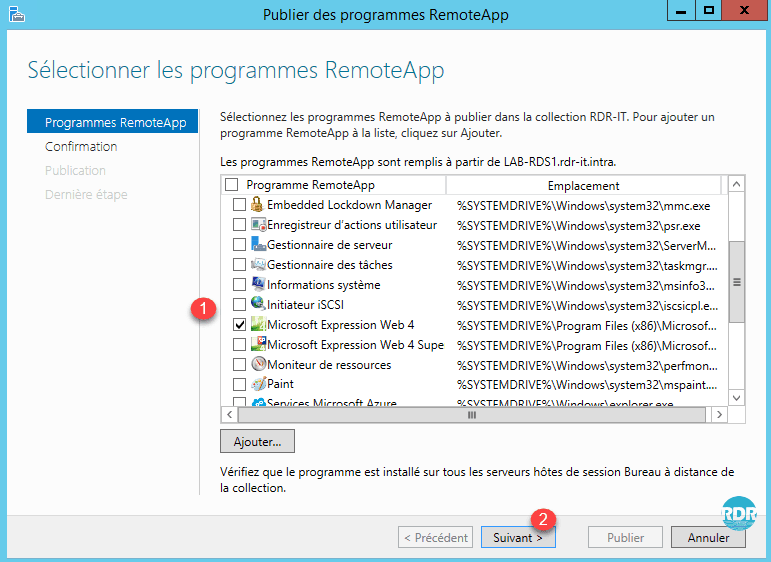

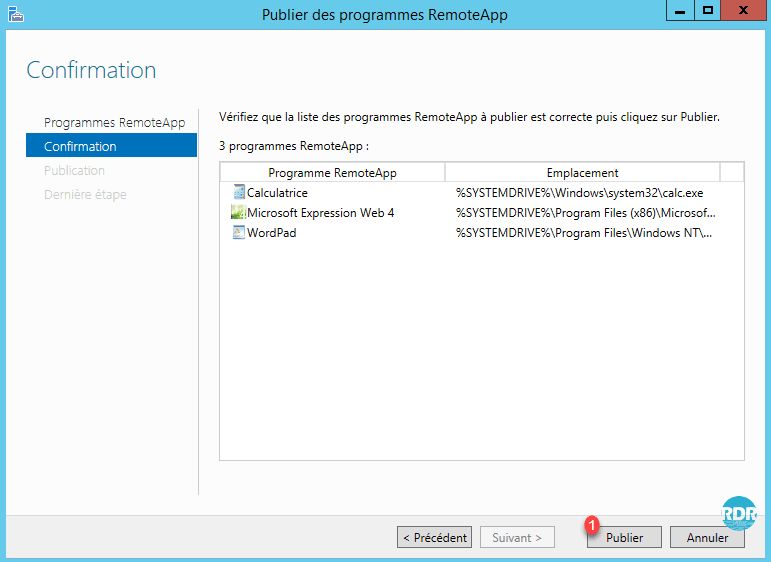

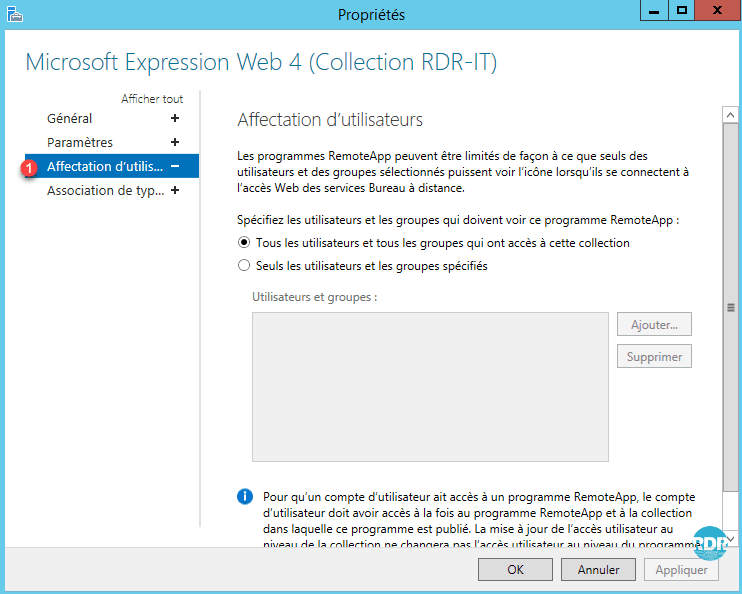

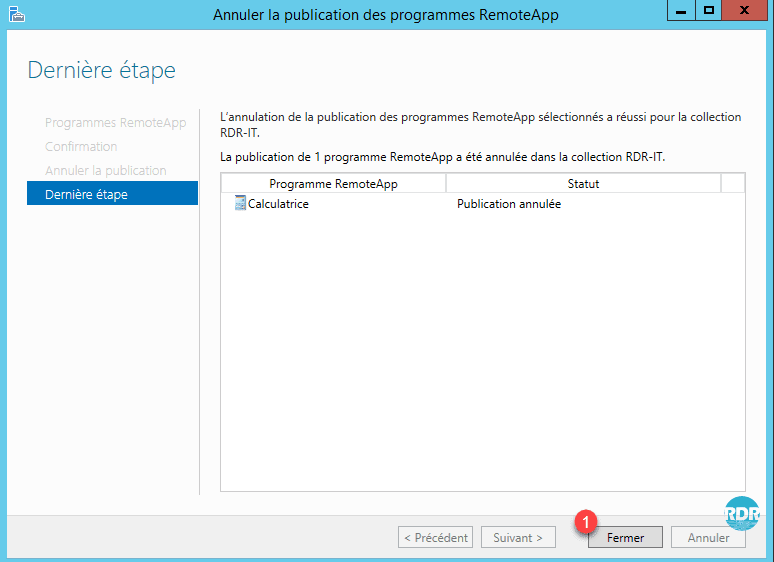

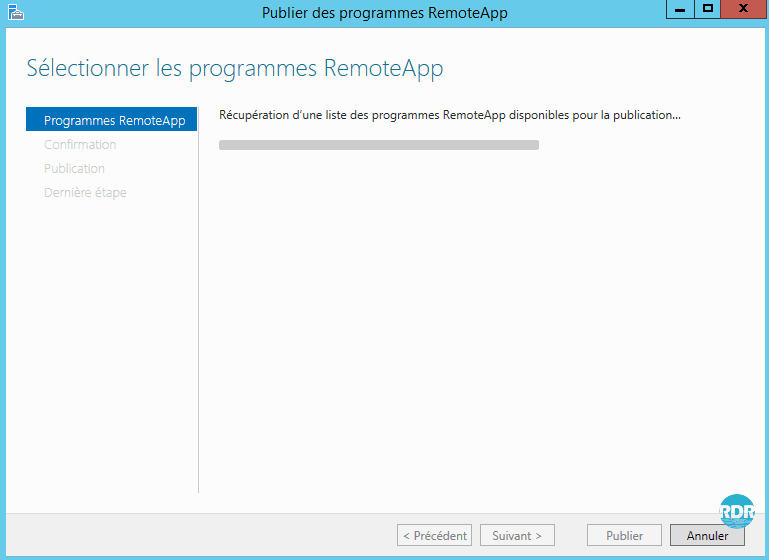

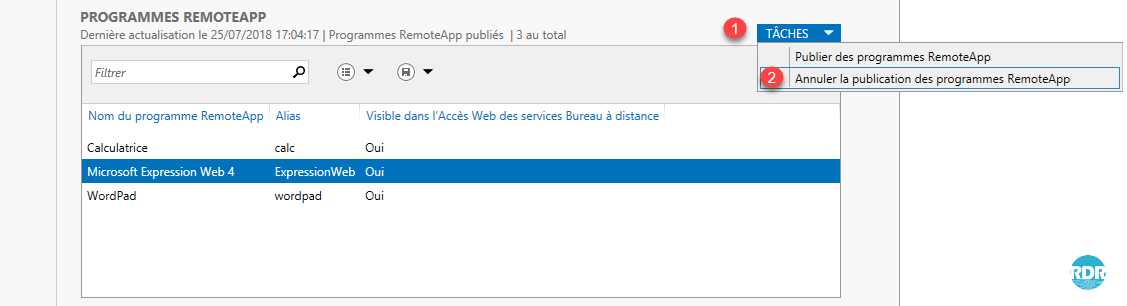

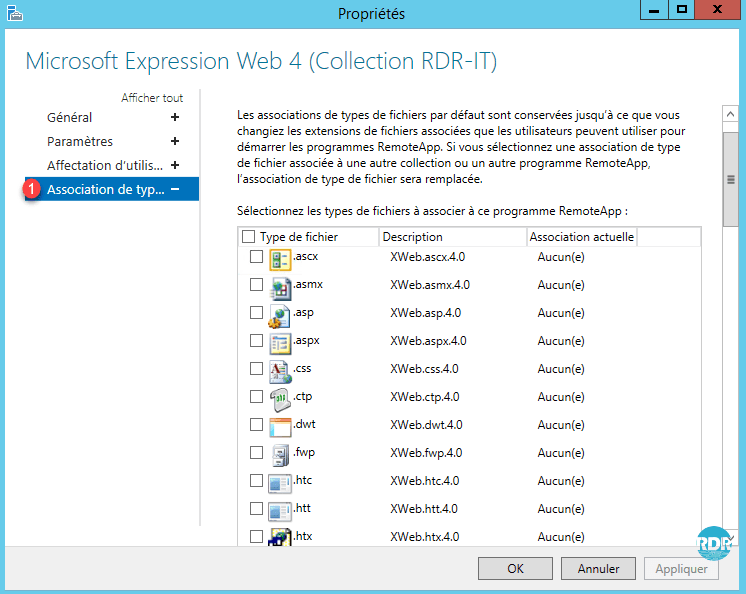

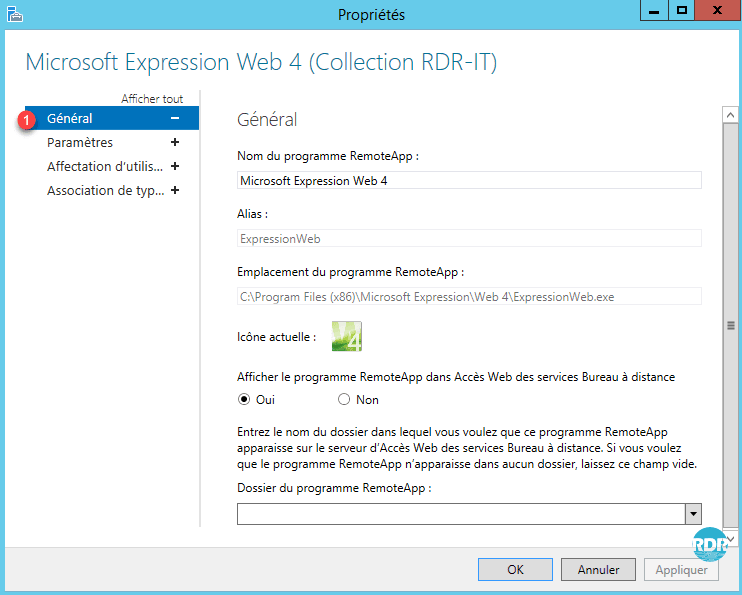

  • Publishing RemoteApp on a web portal

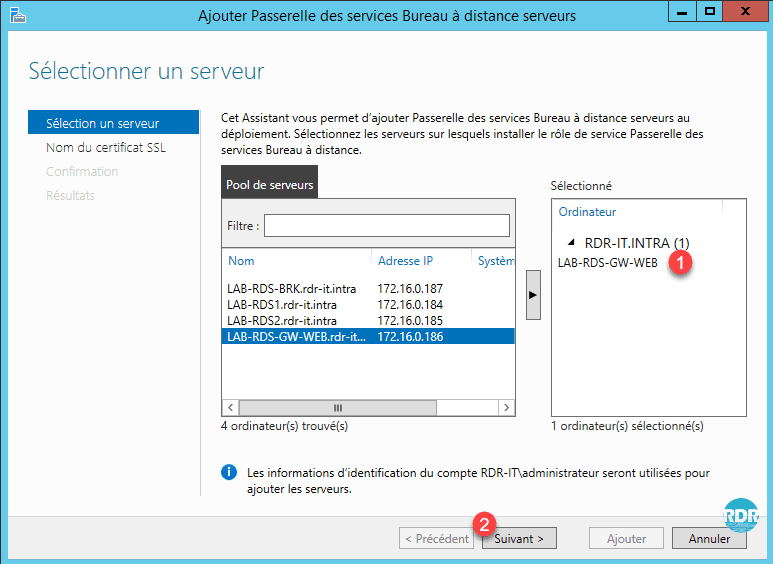

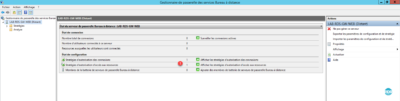

  • Remote Desktop Gateway

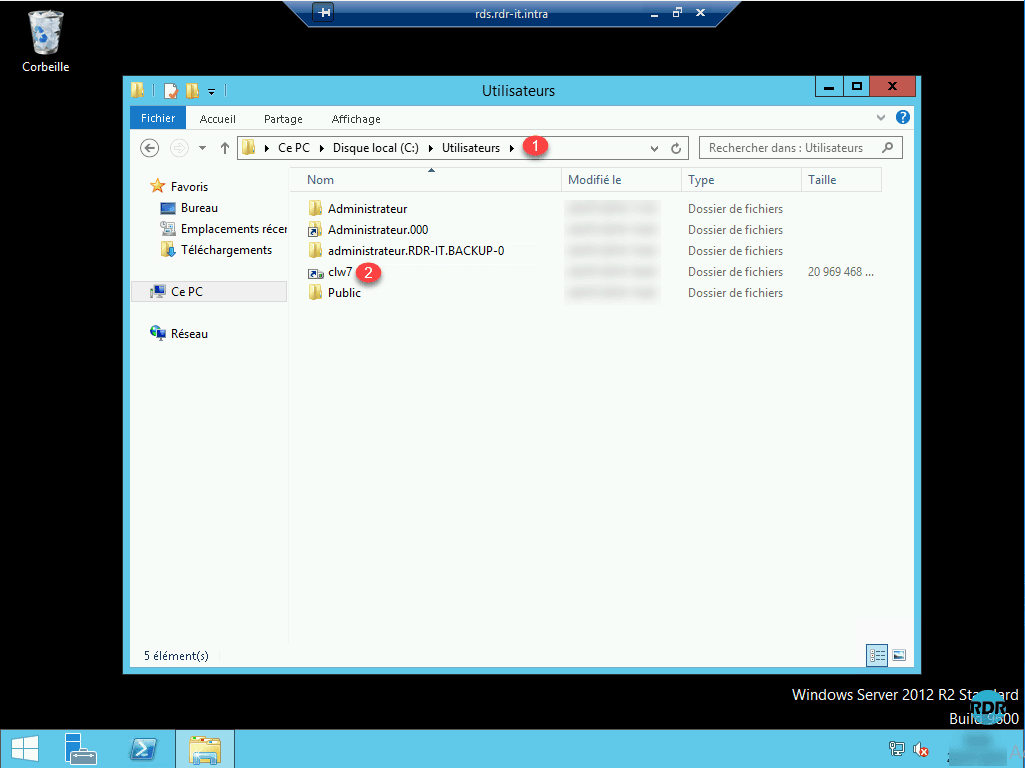

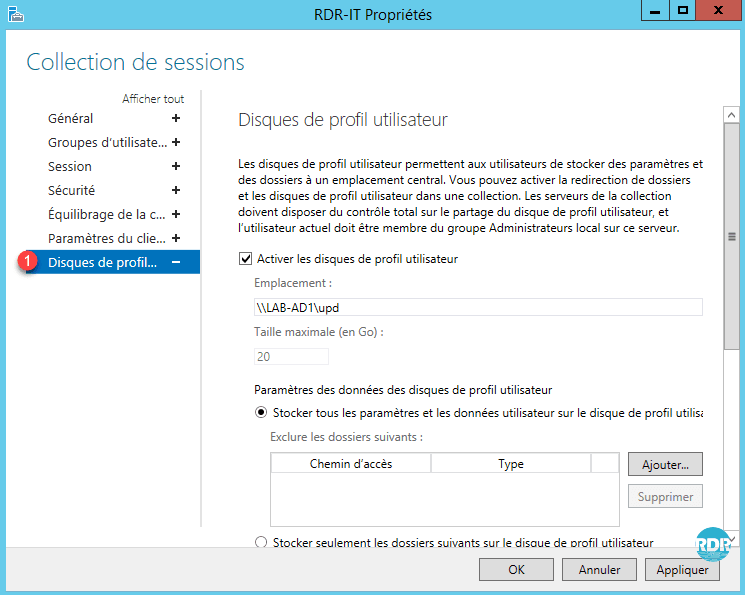

  • User Profile Disk (UPD)

For the establishment of a complete farm rds, it takes at least 4 servers without counting the domain controller and file server and print. All the servers on the farm must be in the field.

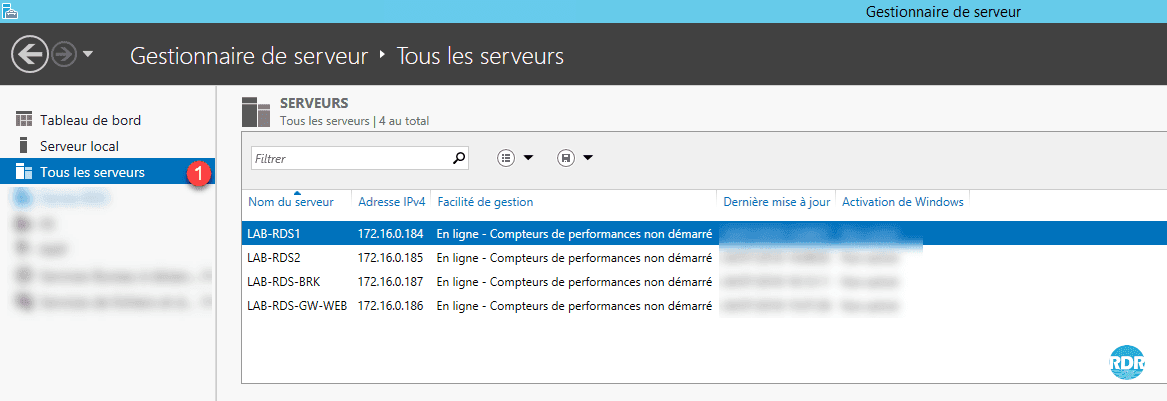

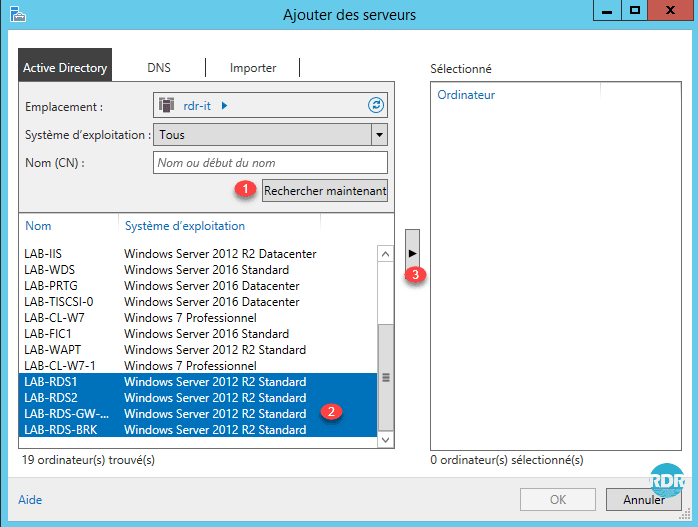

Composition :

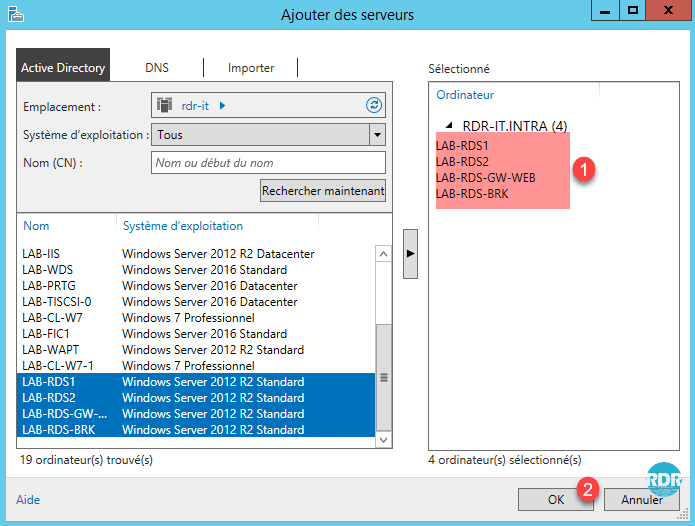

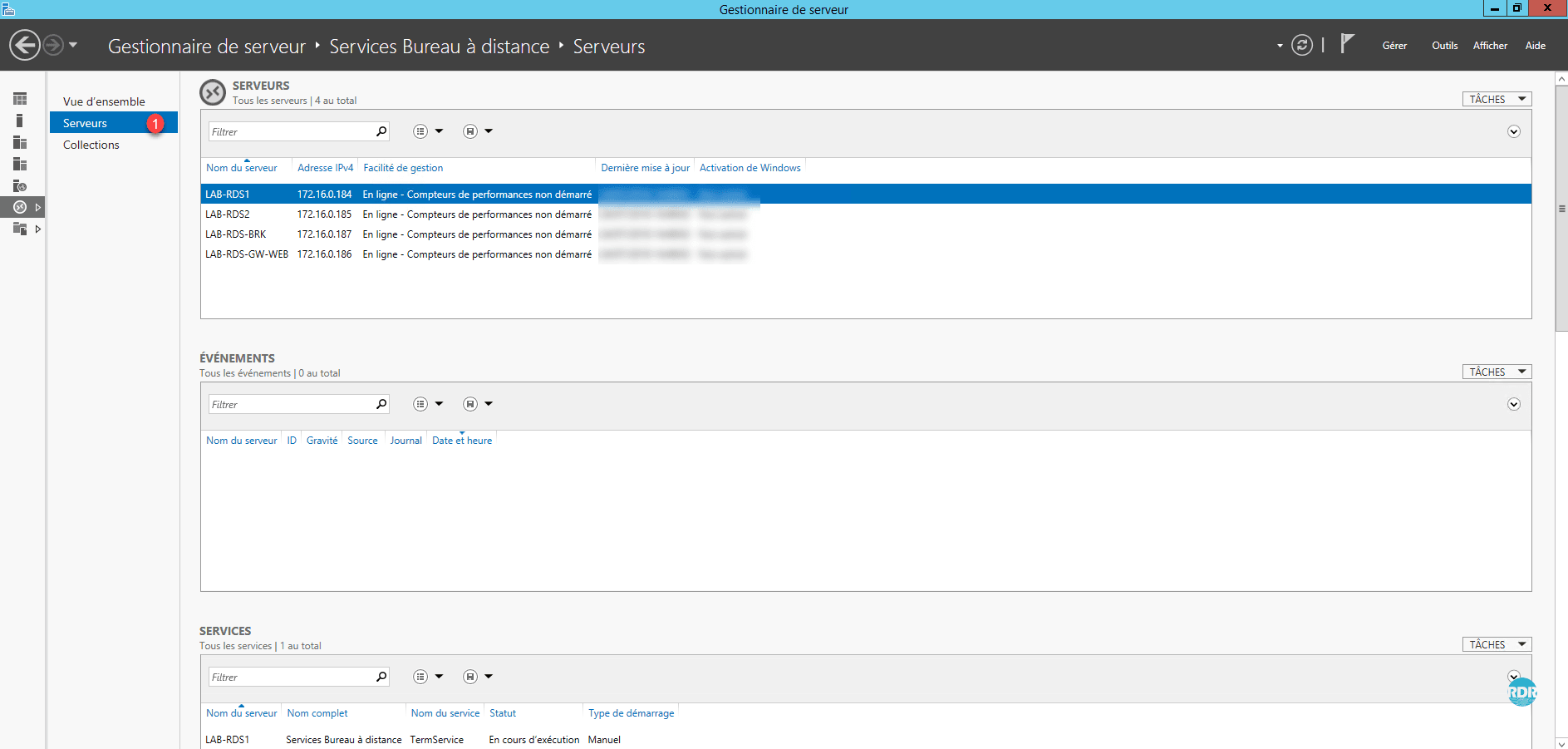

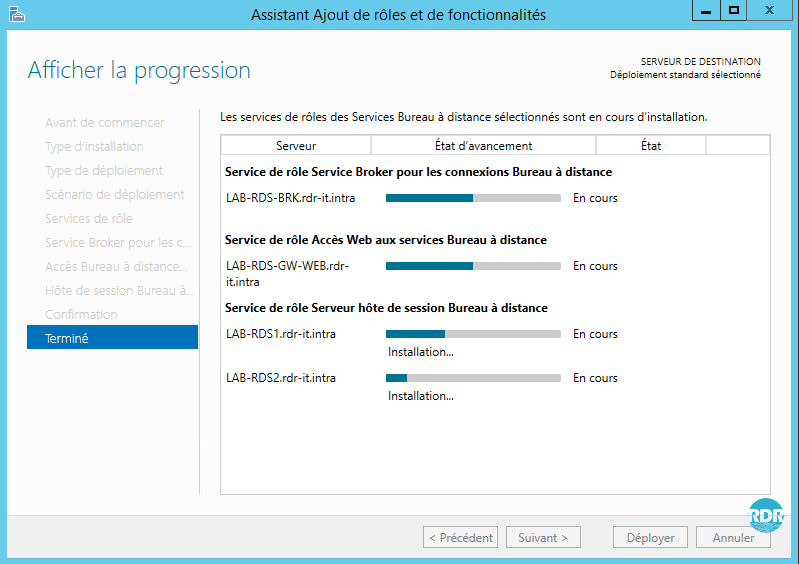

NameIPRoles

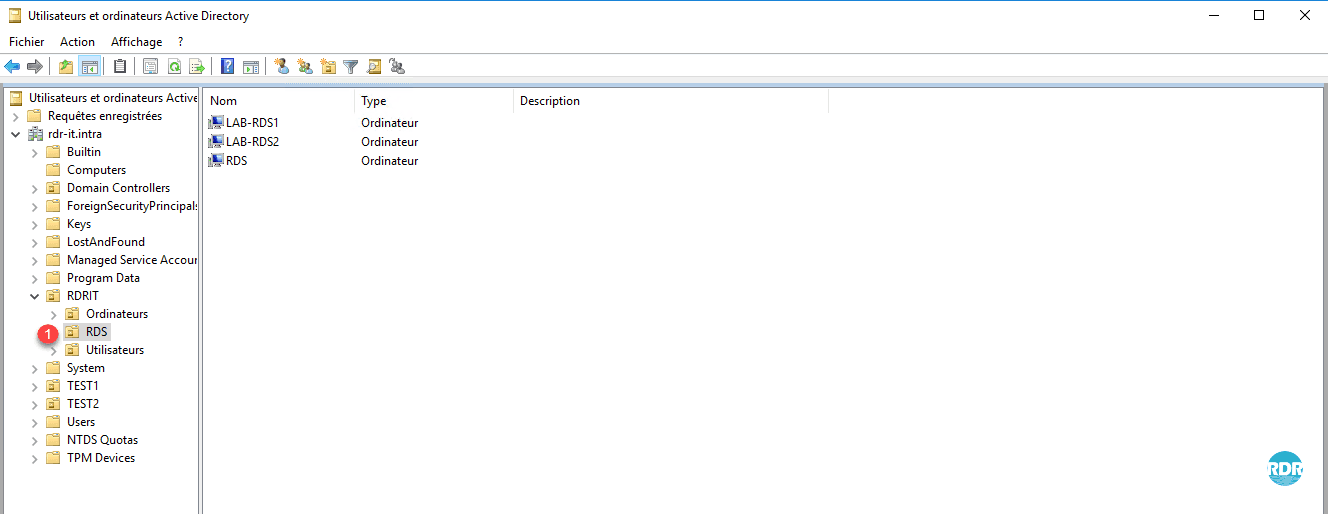

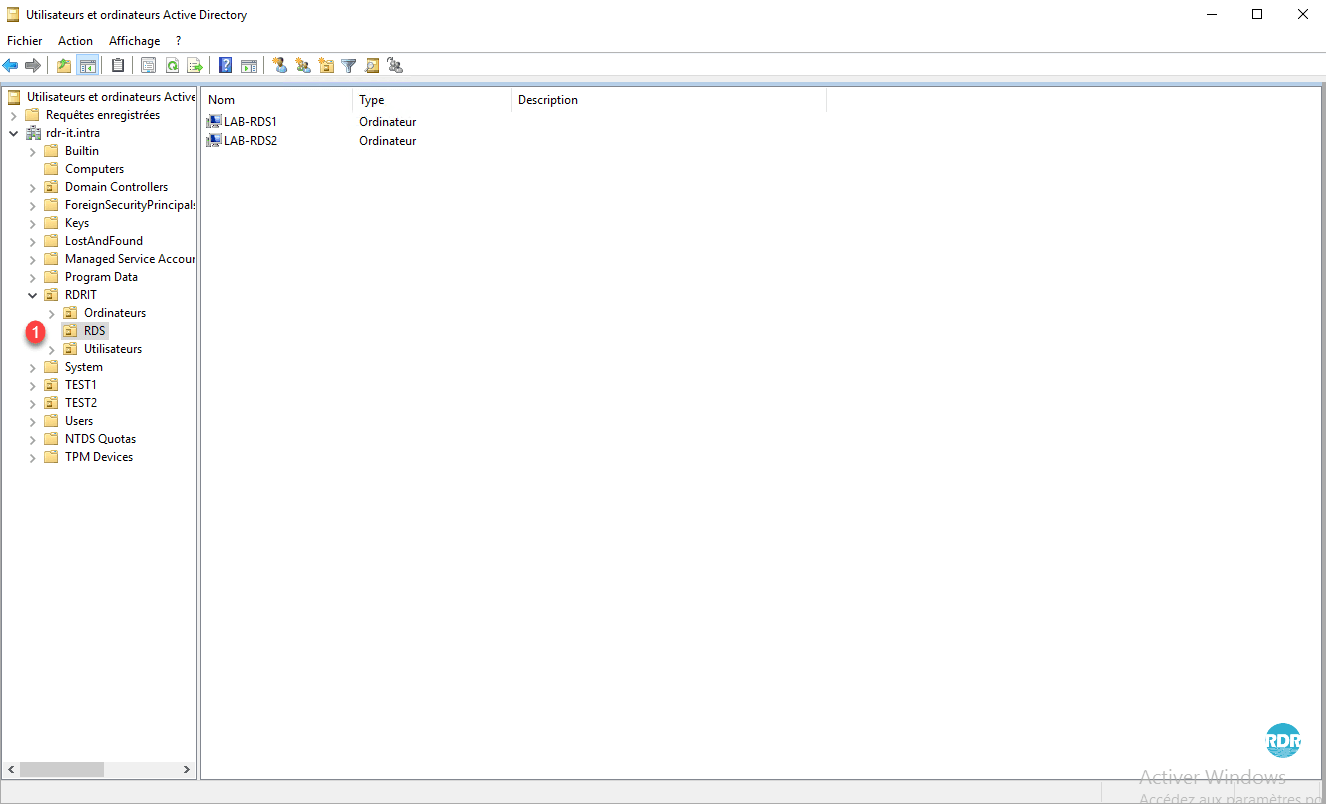

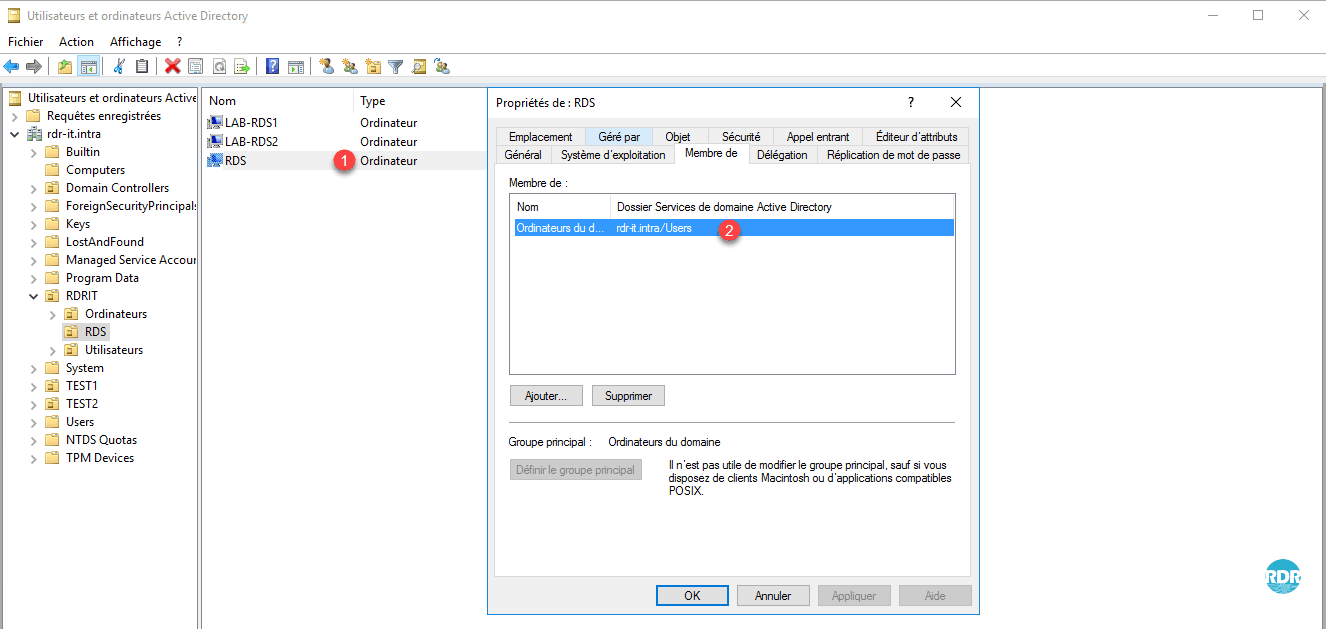

LAB-RDS1.rdr-it.intra 172.16.0.184Remote Desktop Session Host
LAB-RDS2.rdr-it.intra 172.16.0.185Remote Desktop Session Host
LAB-RDS-BRK.rdr-it.intra 172.16.0.186Service Broker / License Manager
LAB-RDS-GW-WEB.rdr-it.intra 172.16.0.187Gateway Remote Desktop / Web Access

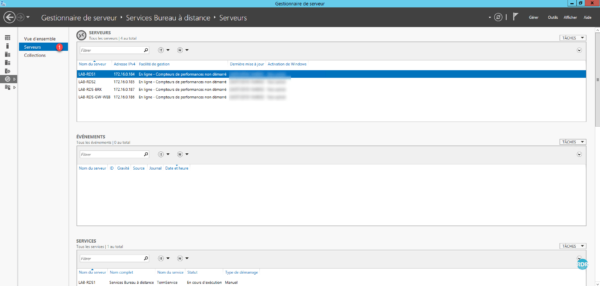

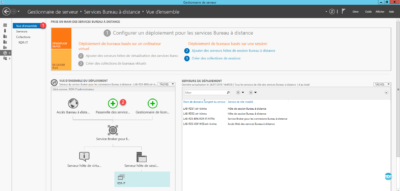

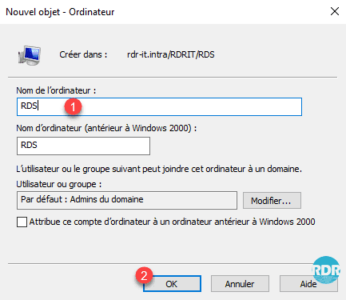

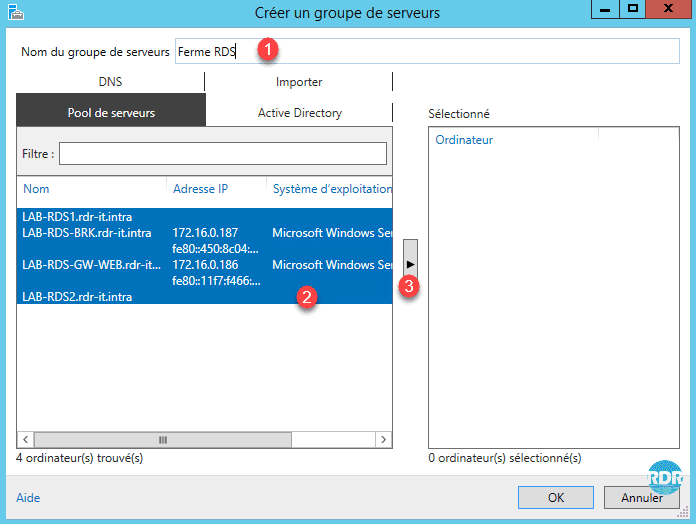

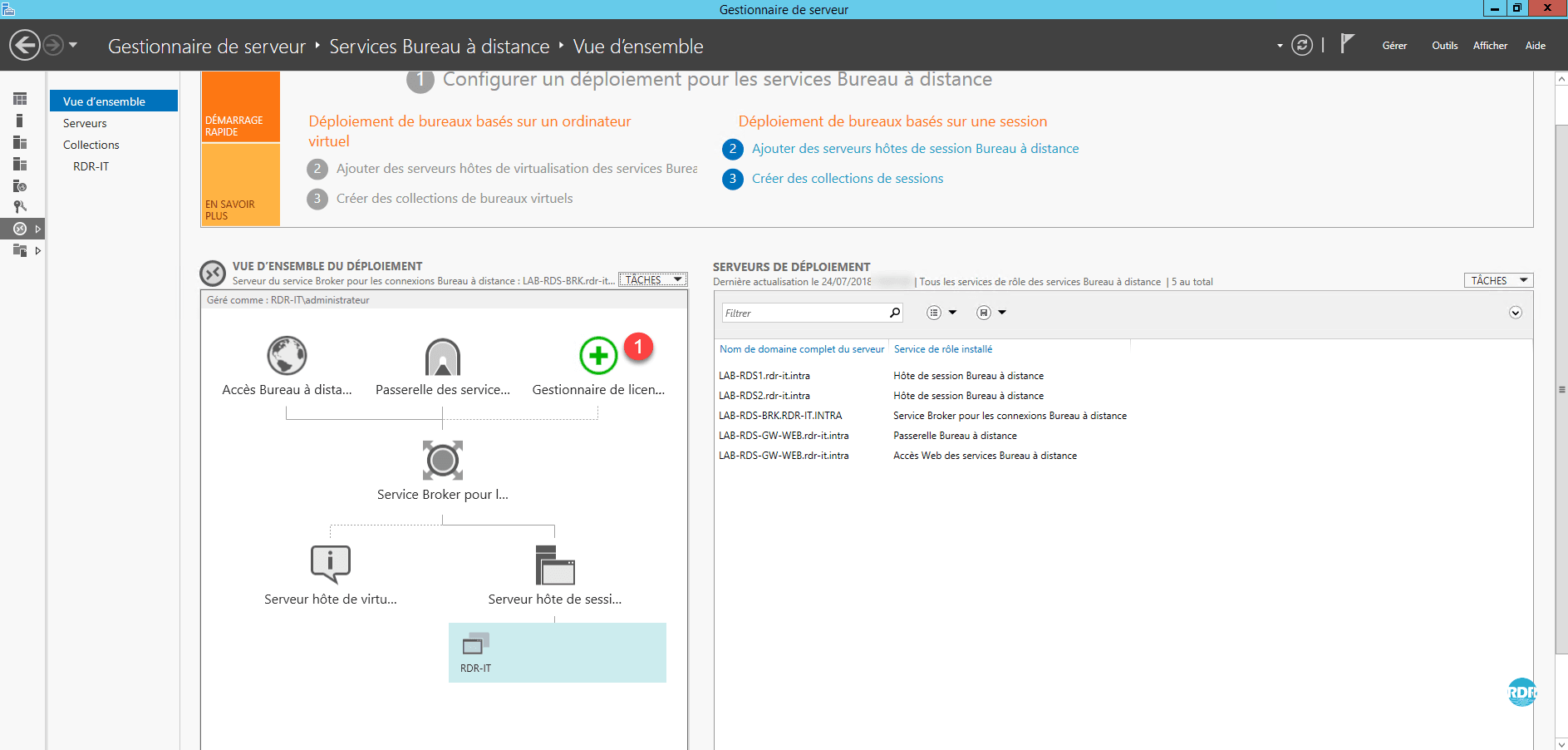

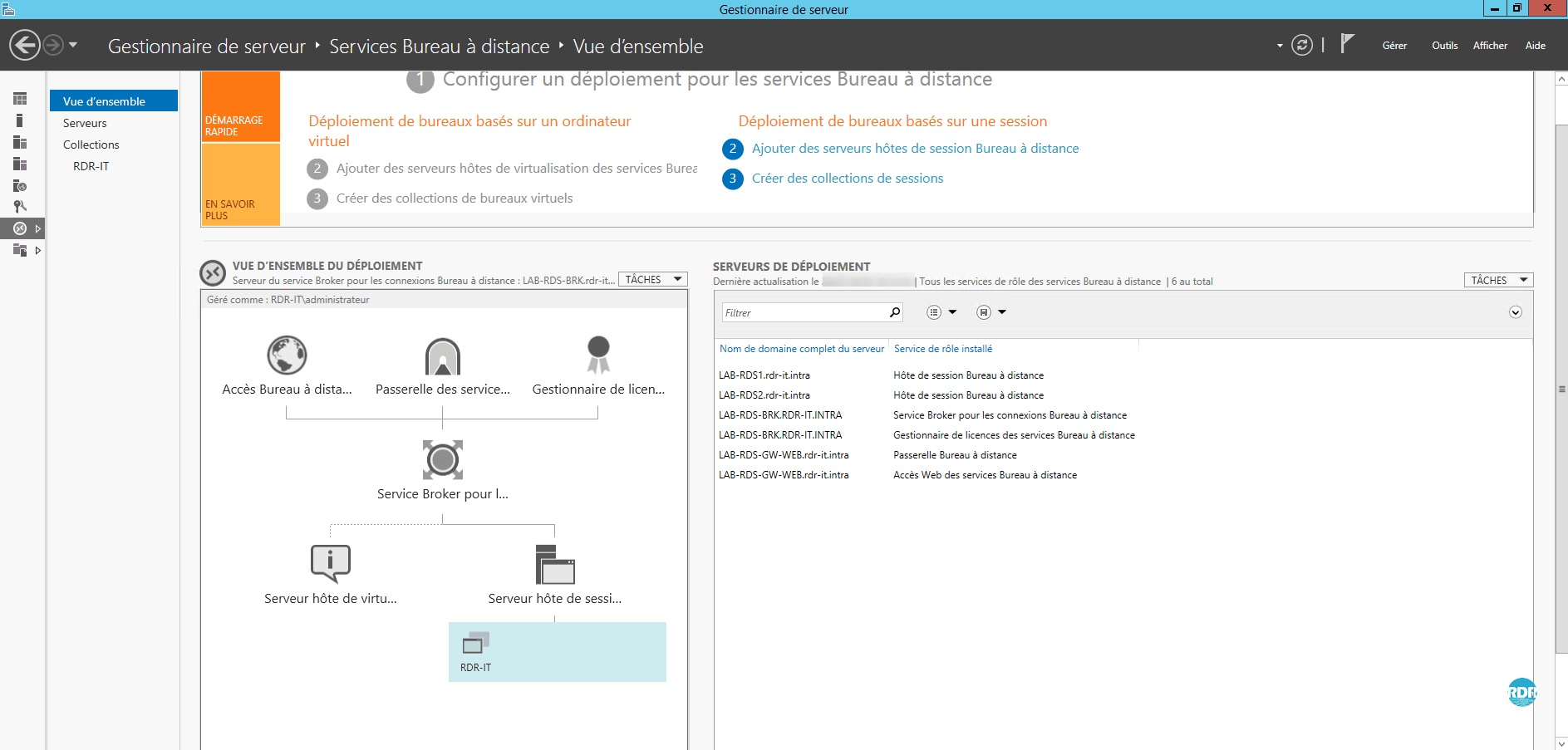

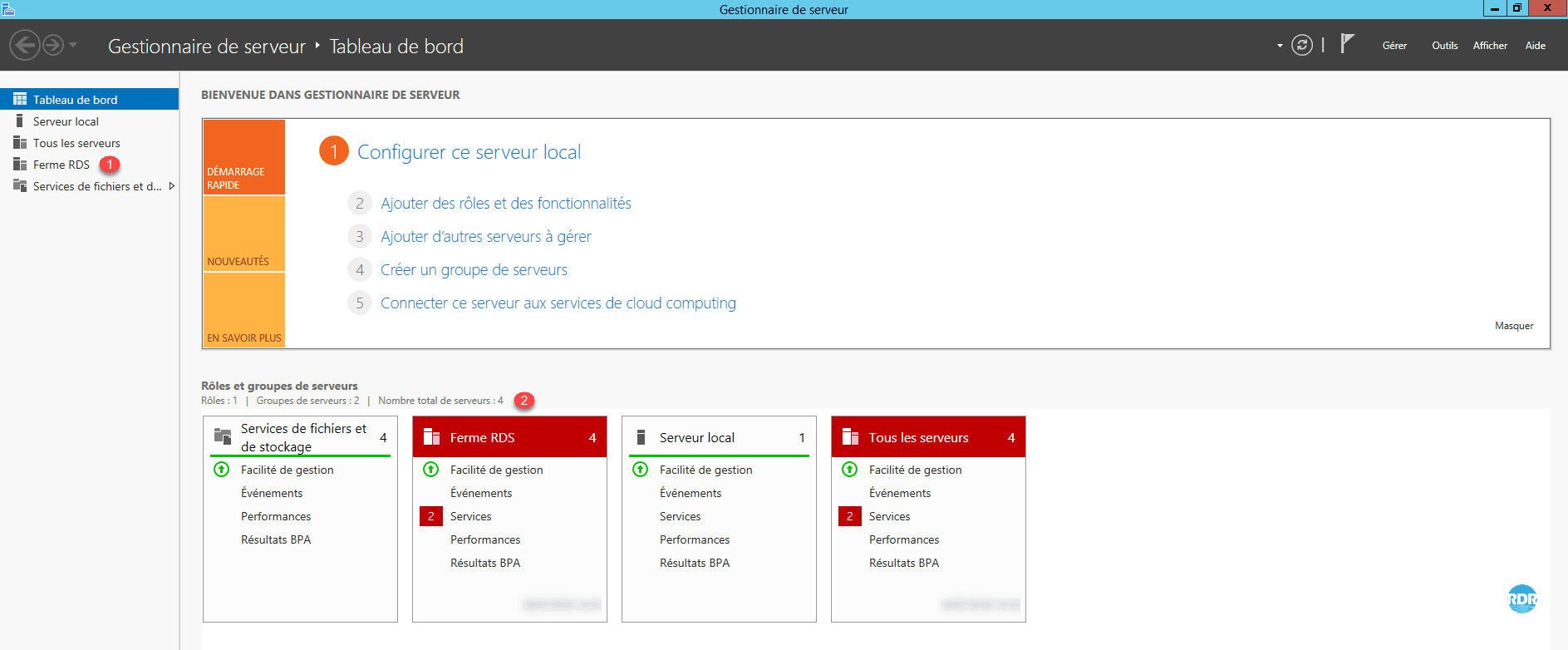

RDS Farm

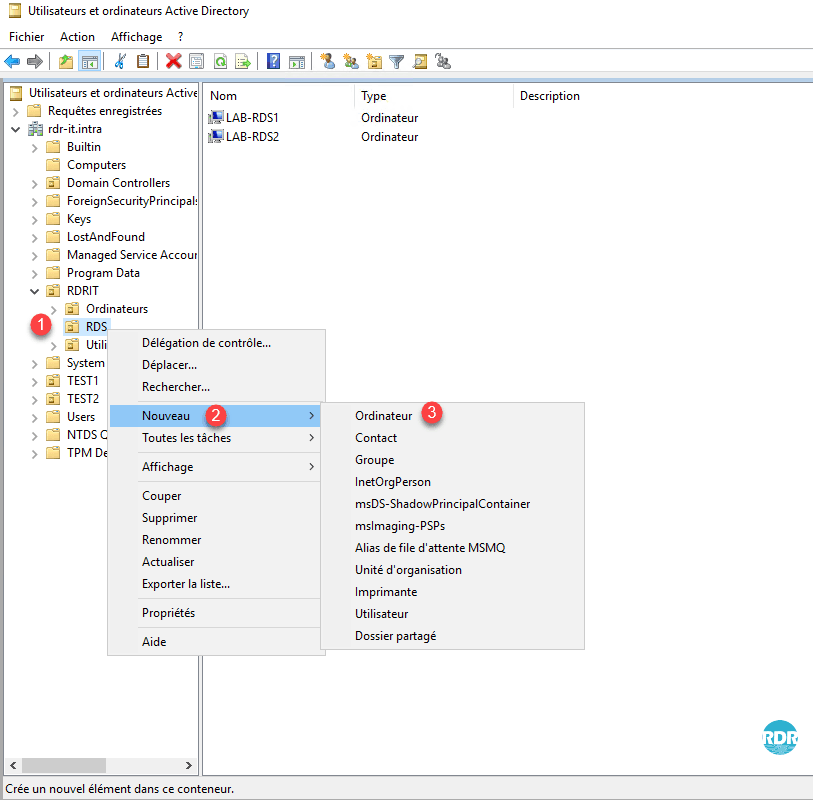

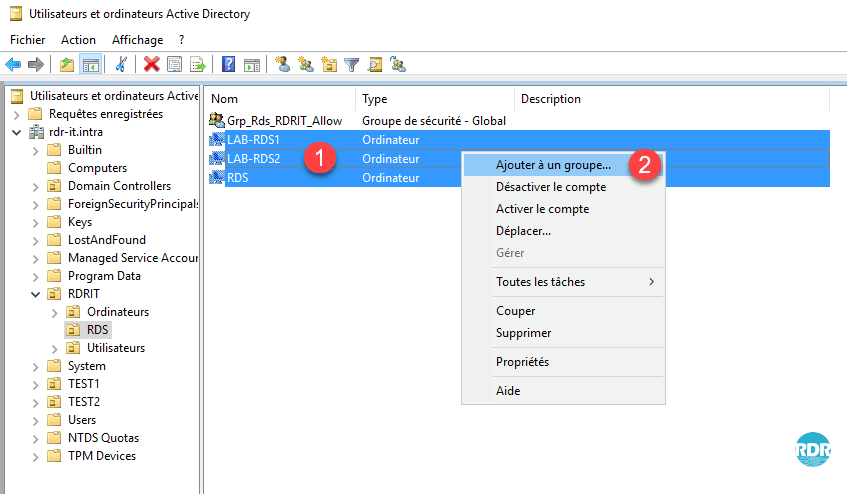

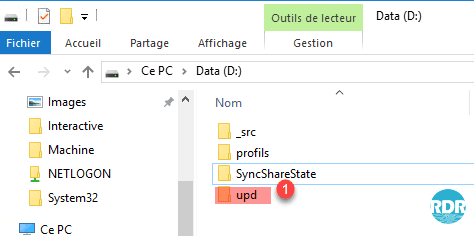

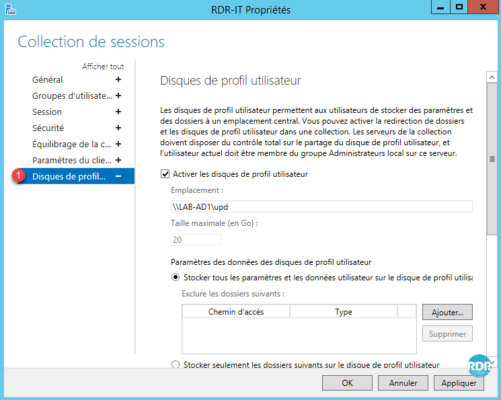

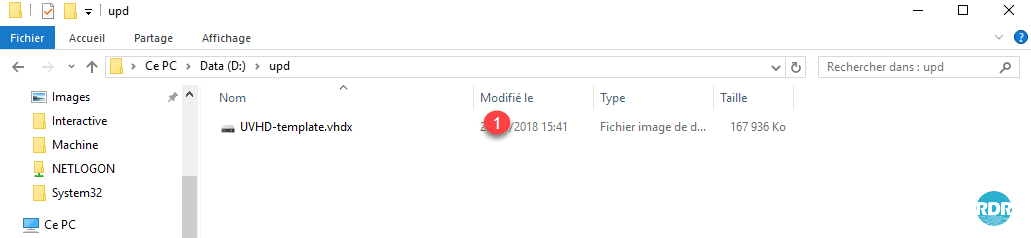

For the realization of the tutorial, I used an AD server, LAB-AD1.rdr.it.intra with the IP address 172.16.0.100. DC is used for storing UPDs.

Server role definitions that are part of an RDS farm.

Remote Desktop Session Host : On these servers, the user sessions are open and allow them to work.

Service broker : This is the circulation agent for sessions in an environment with multiple remote desktop session hosts.

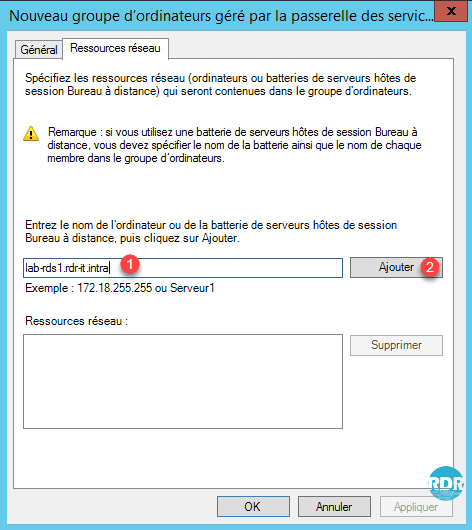

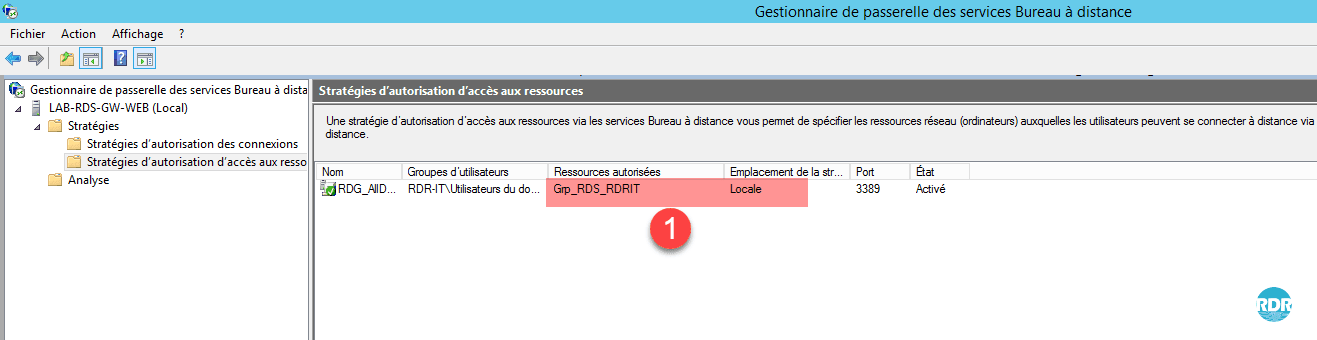

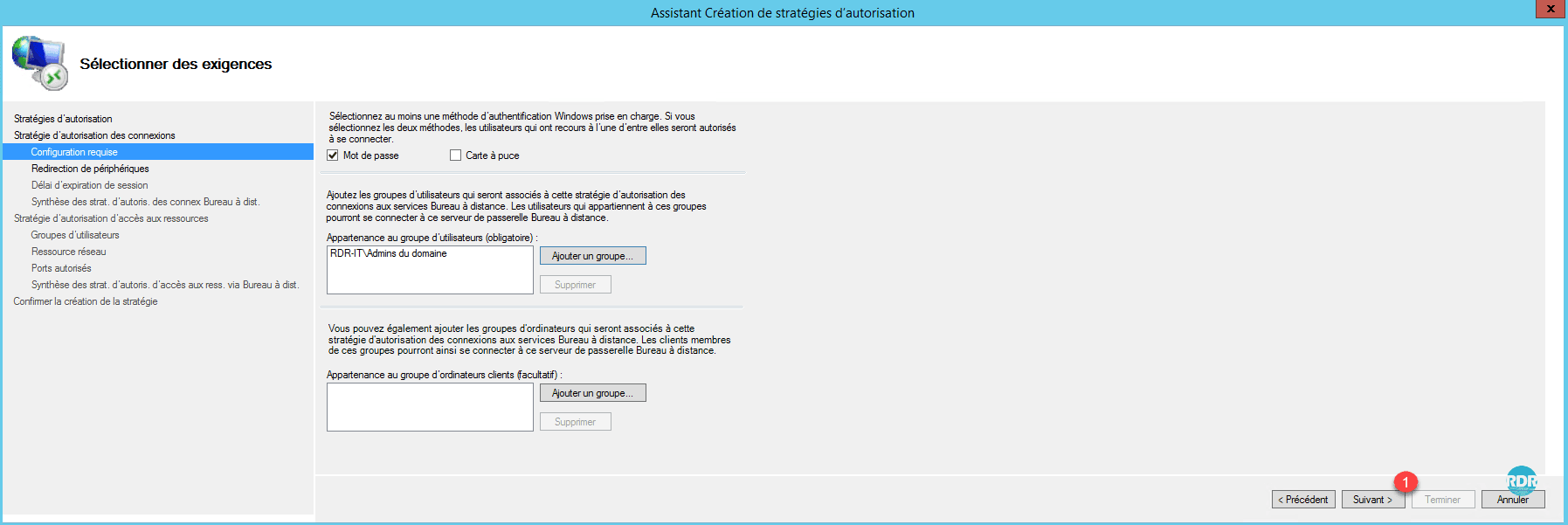

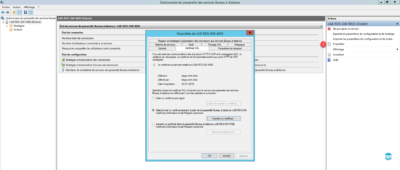

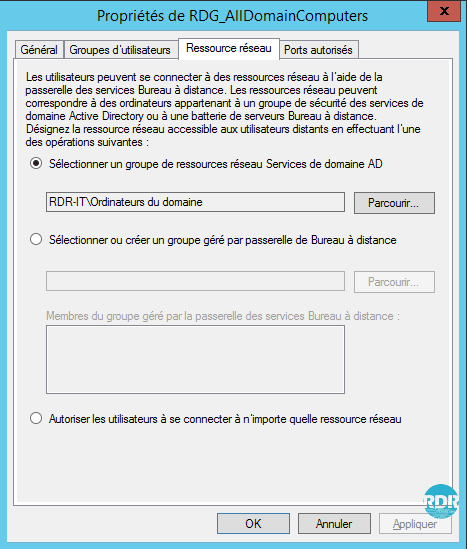

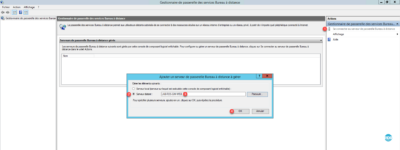

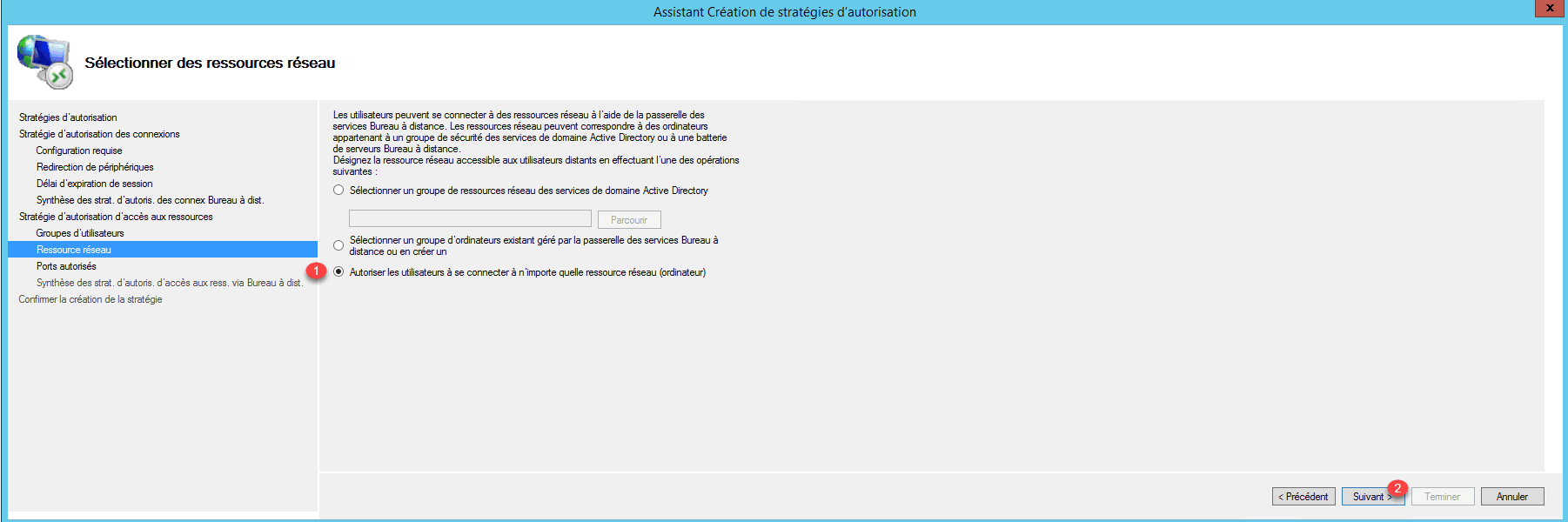

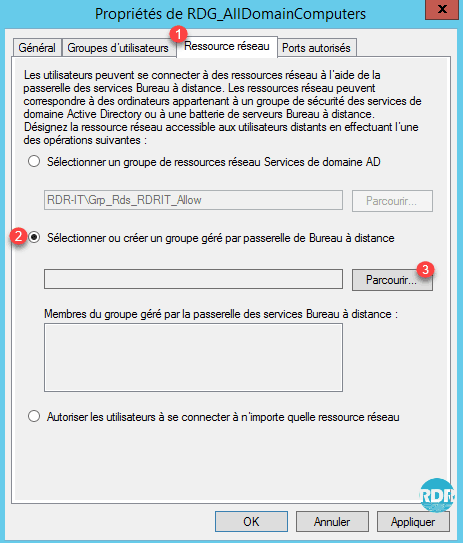

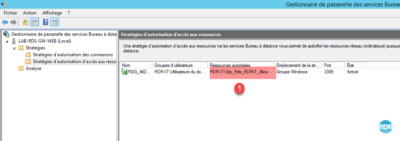

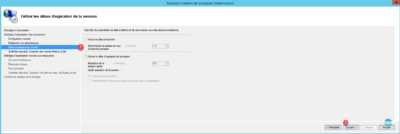

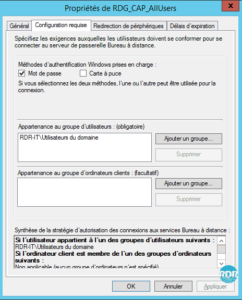

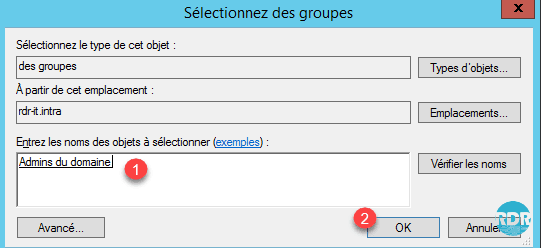

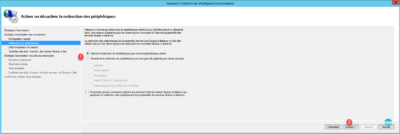

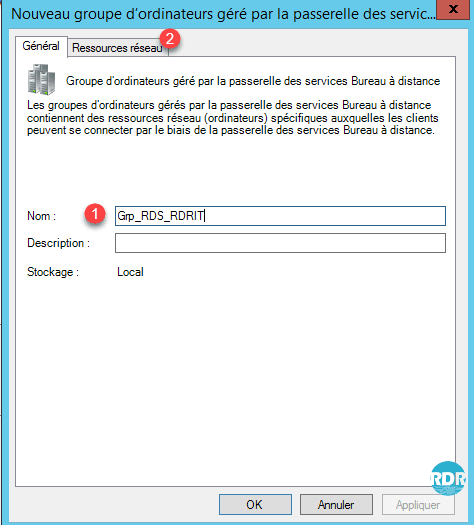

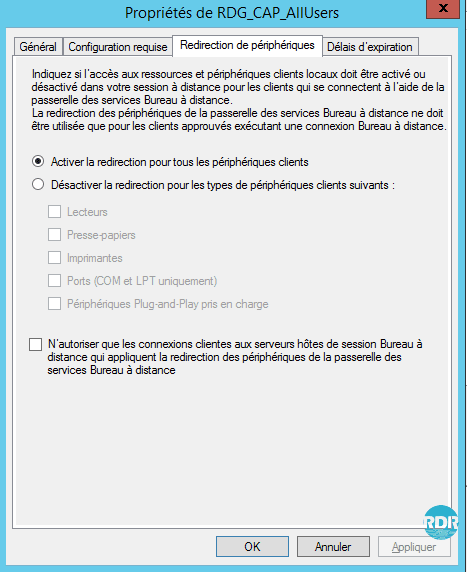

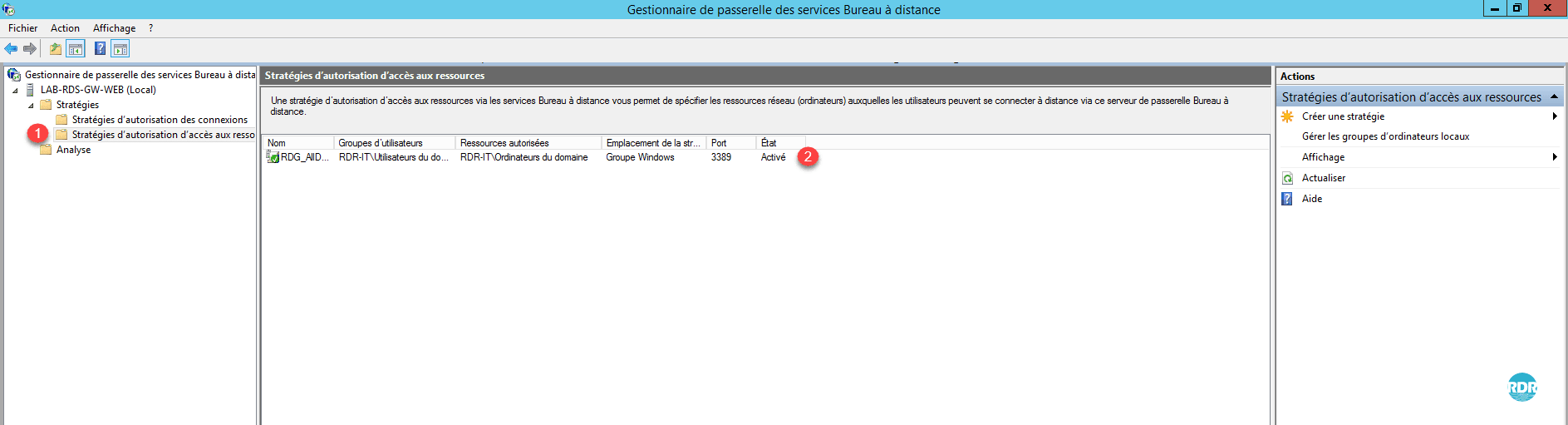

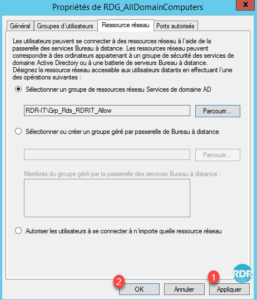

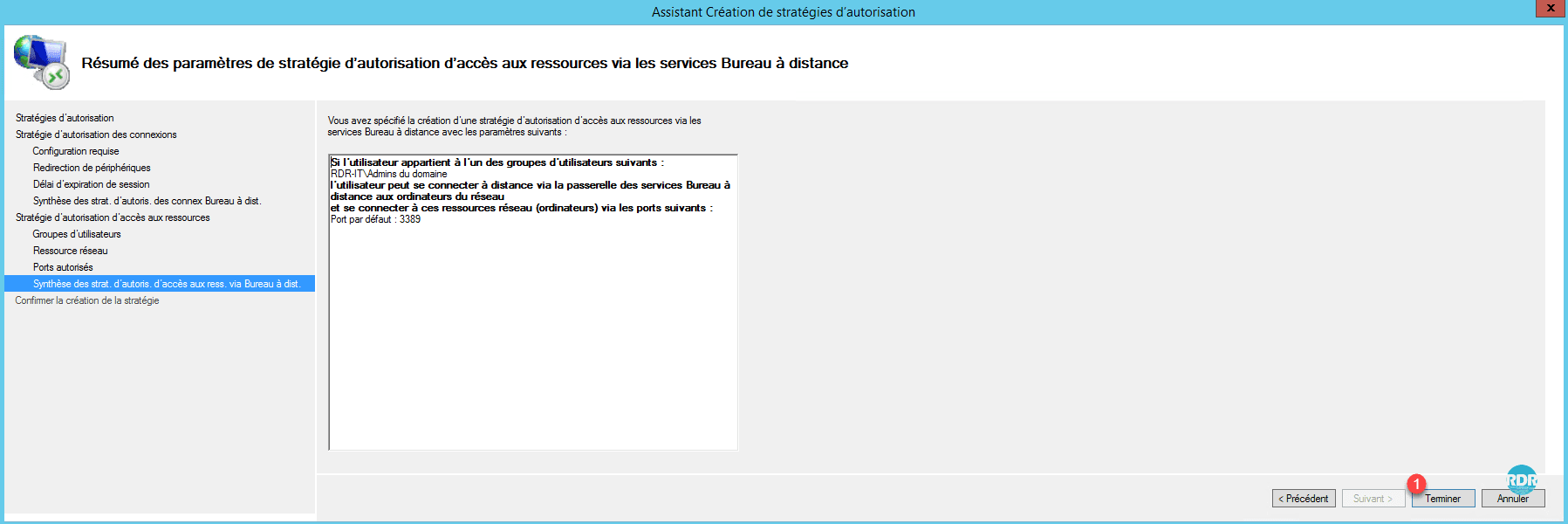

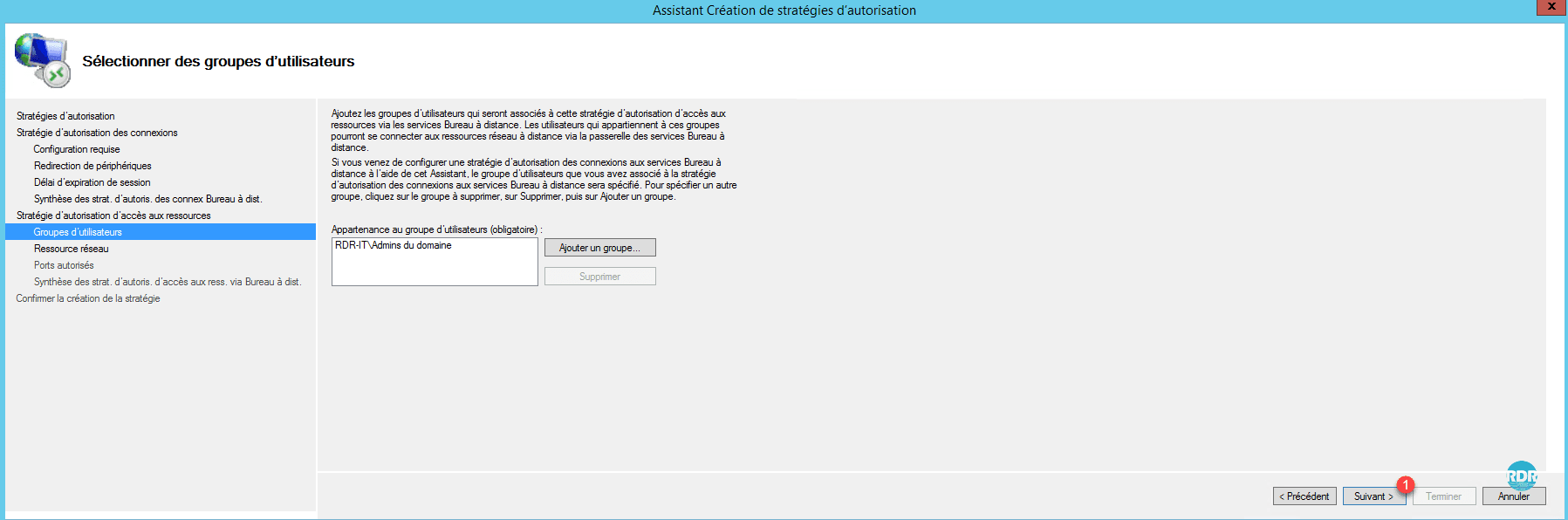

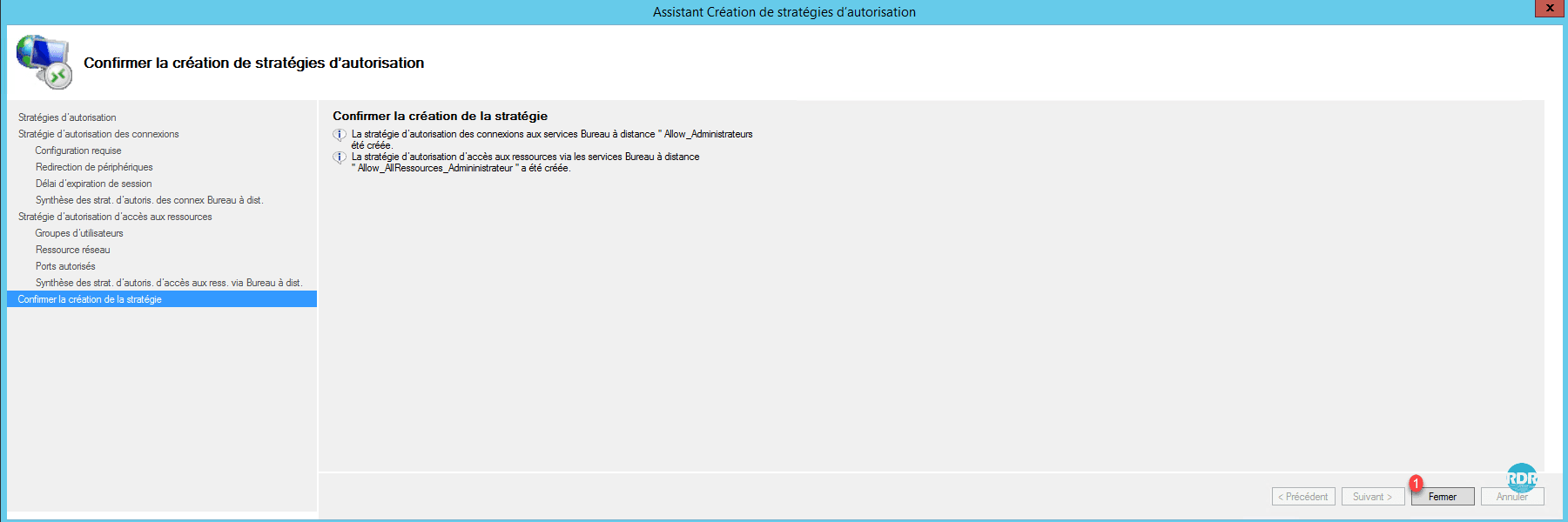

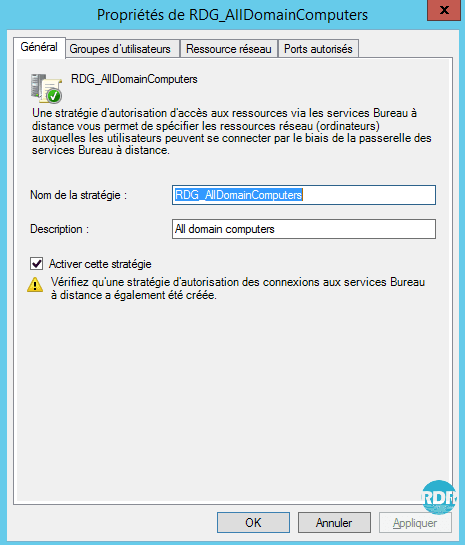

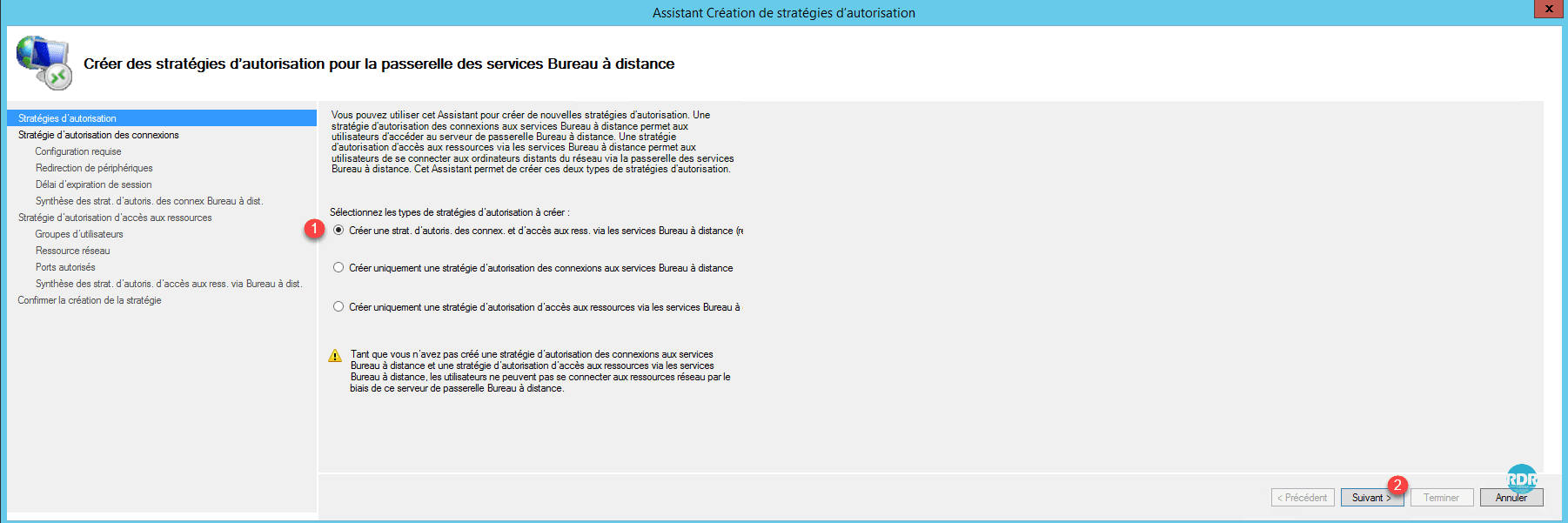

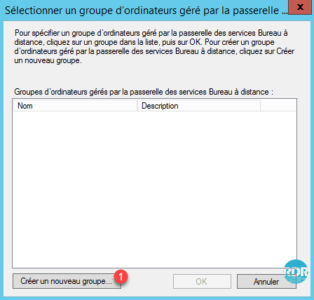

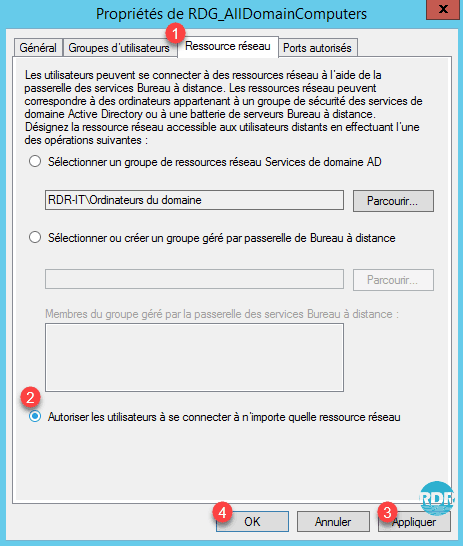

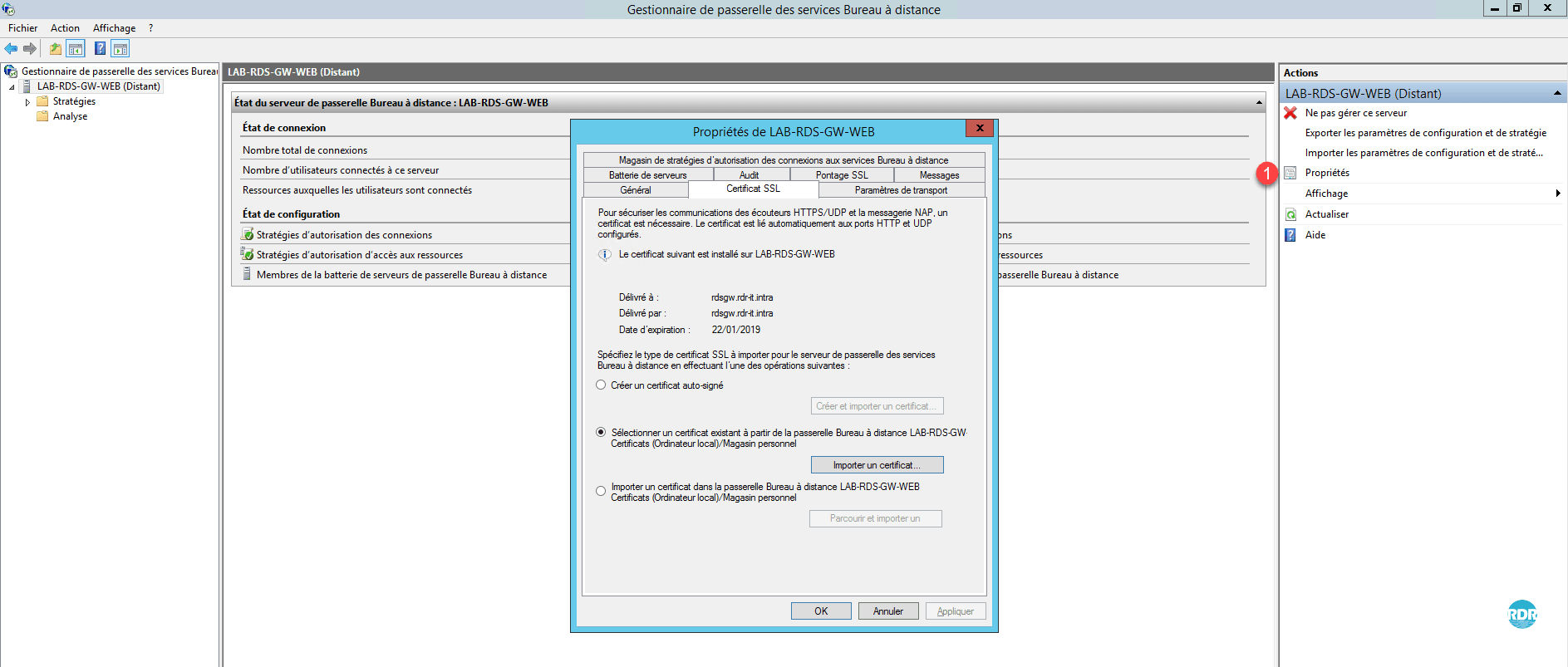

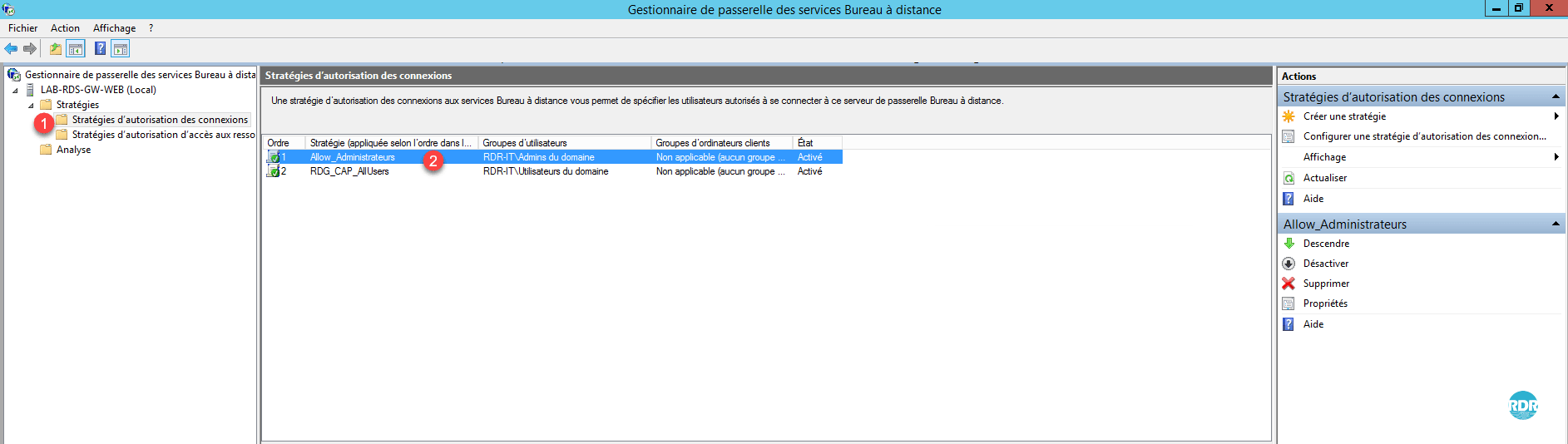

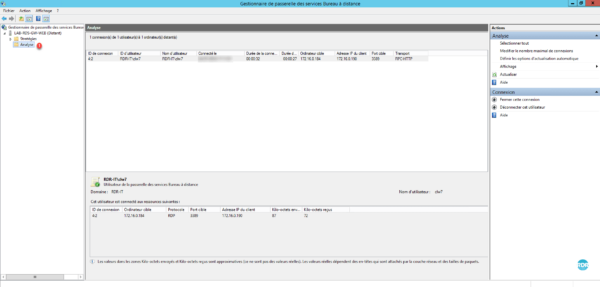

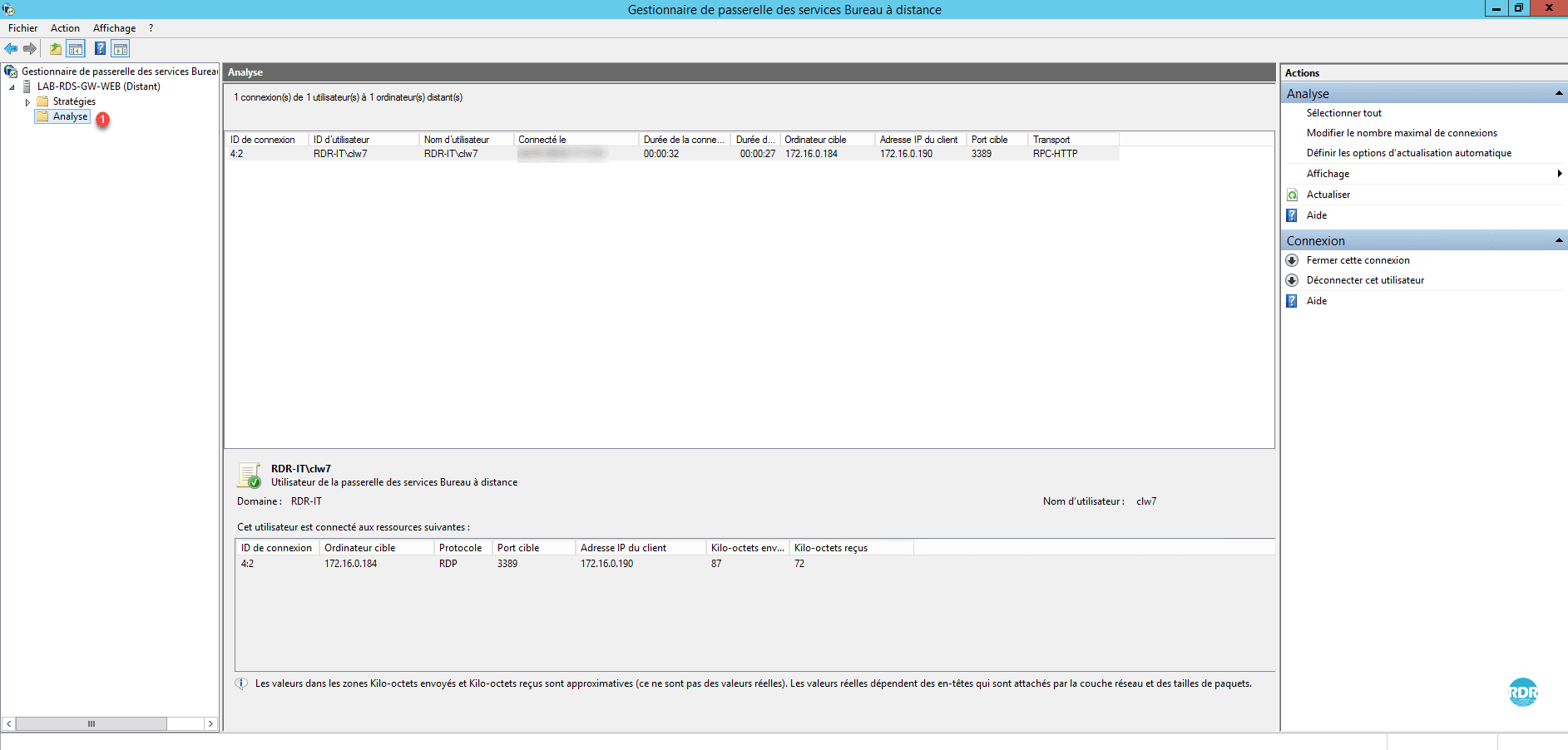

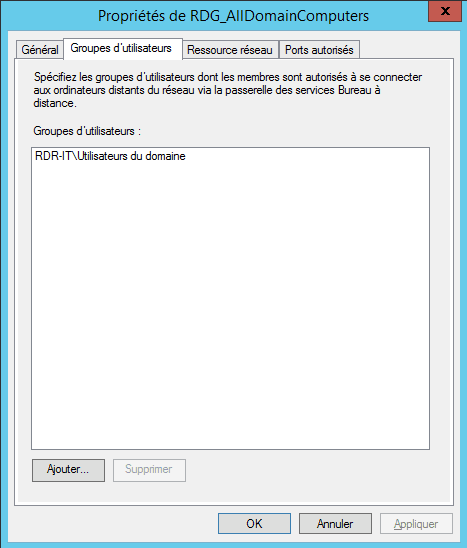

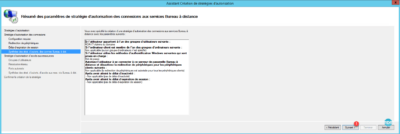

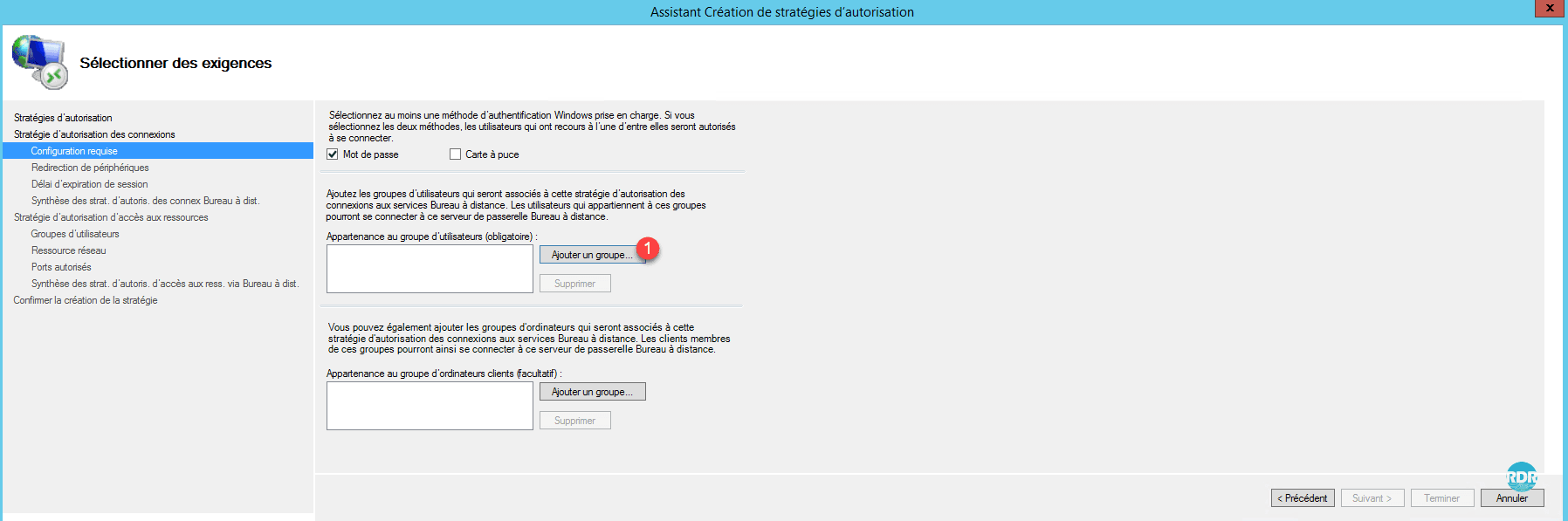

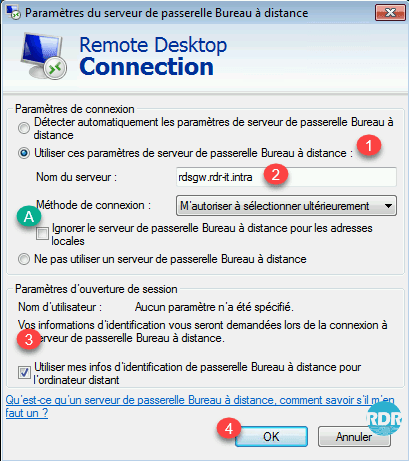

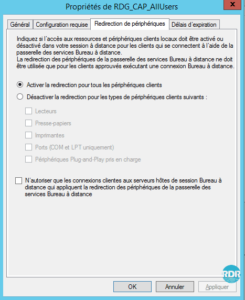

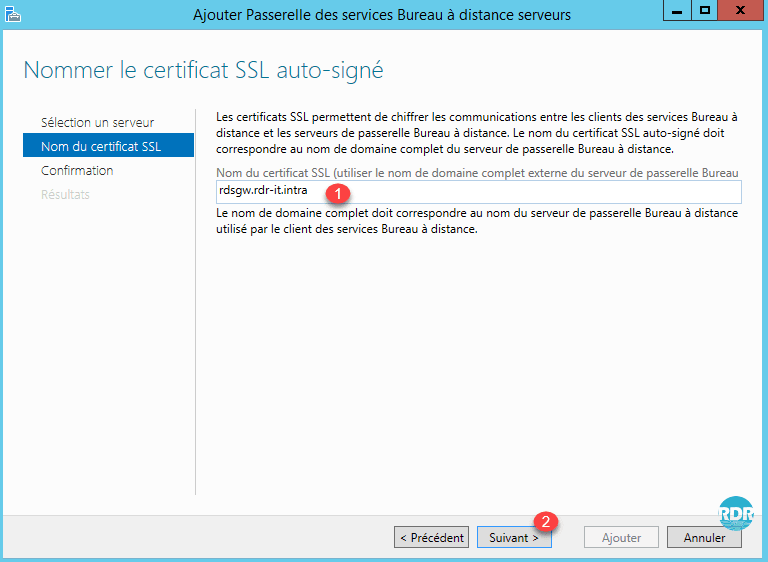

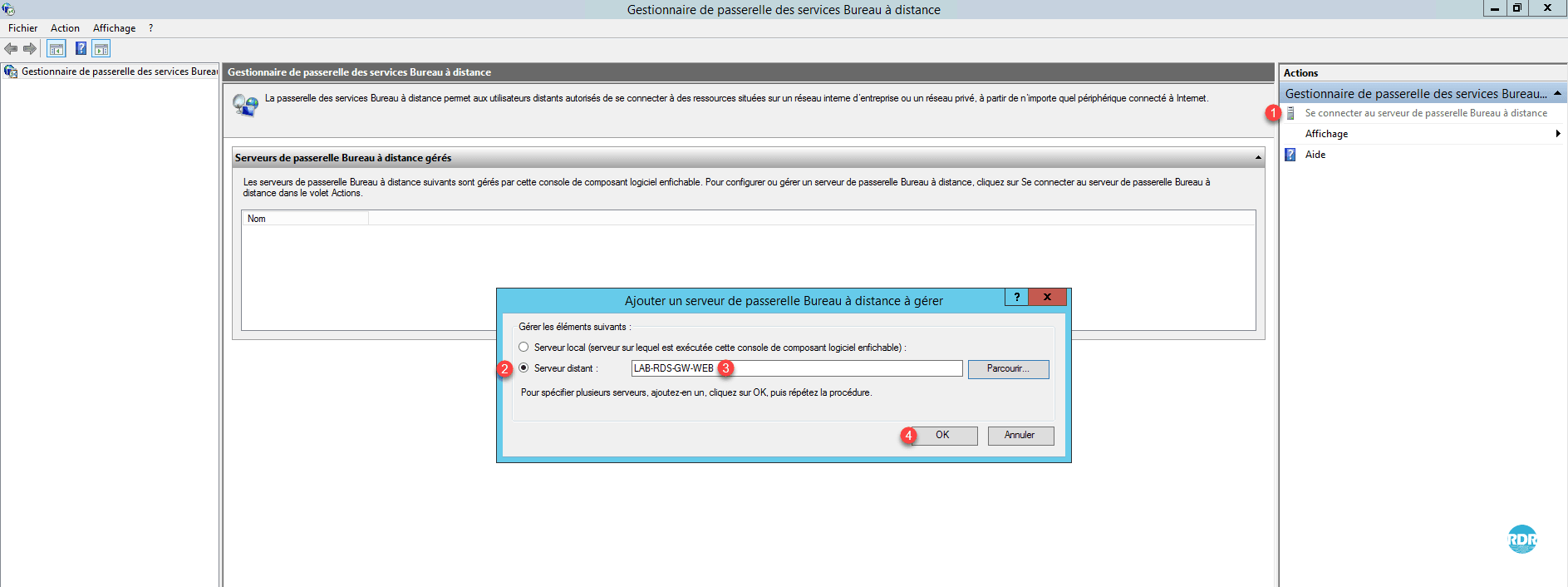

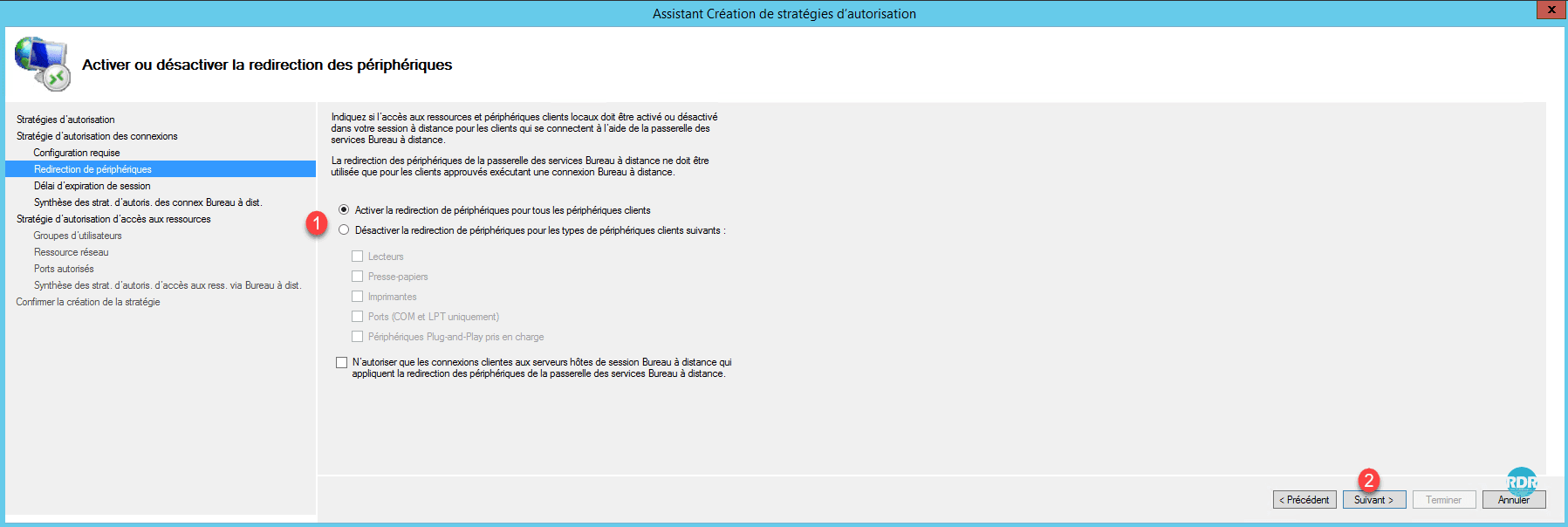

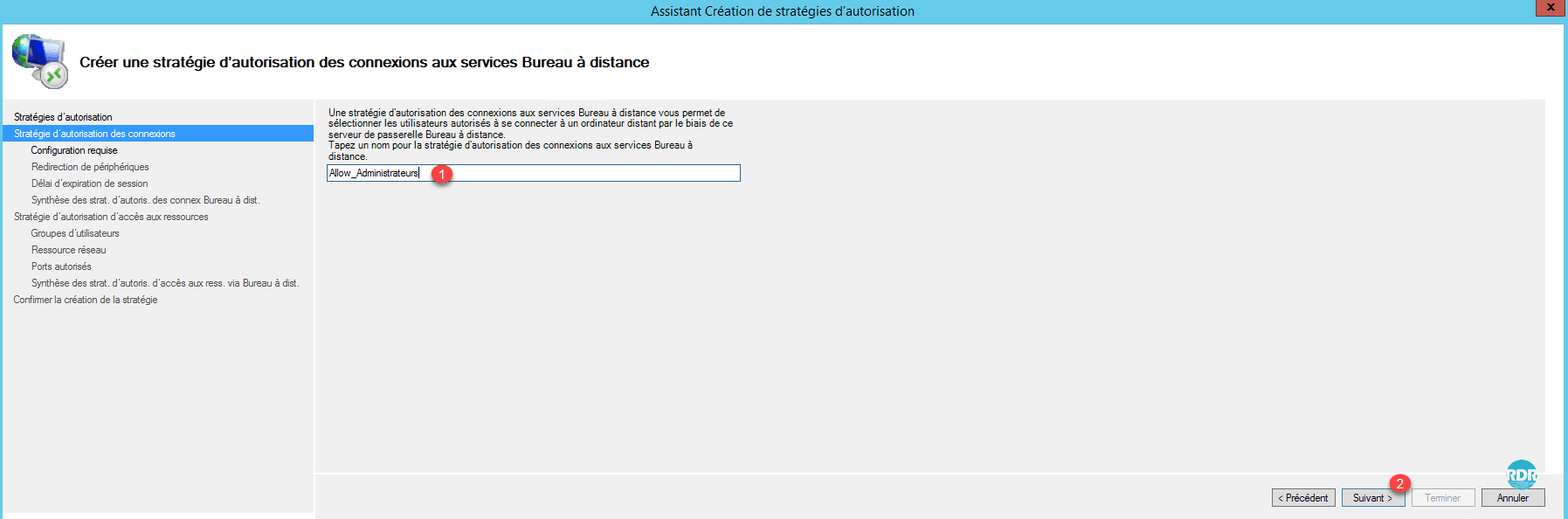

Remote Desktop Gateway : Its primary role is to enable secure access to the RDS infrastructure from the Internet. It connects to the farm using HTTPS and filters connections using access policy.

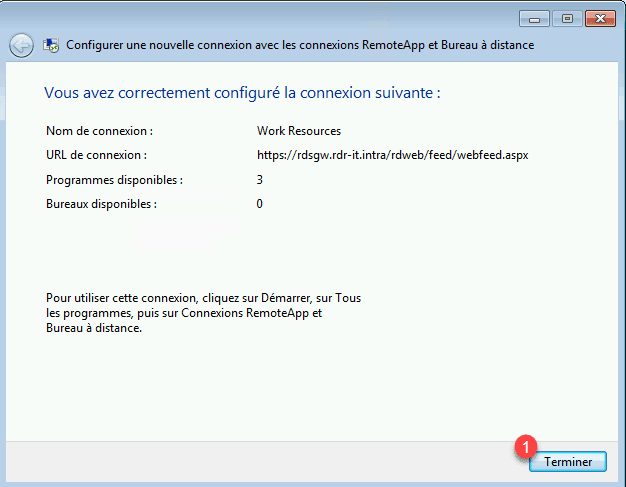

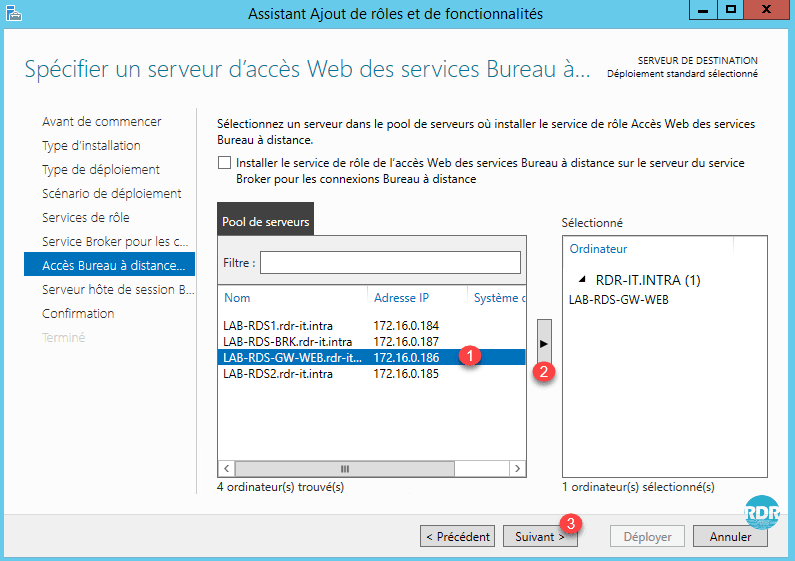

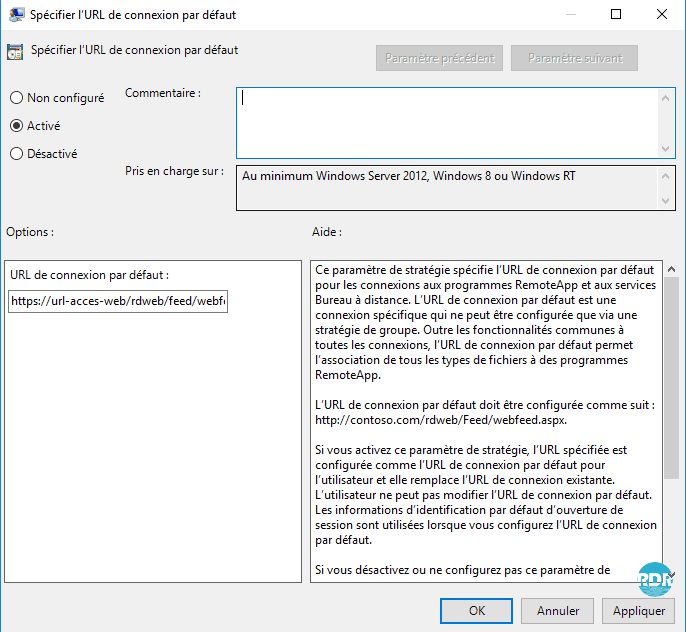

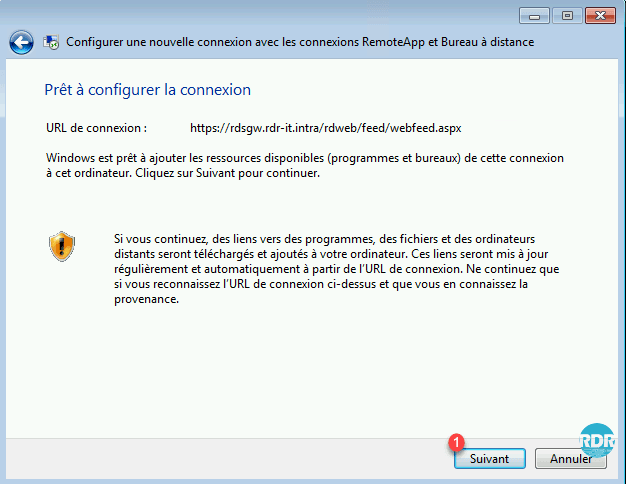

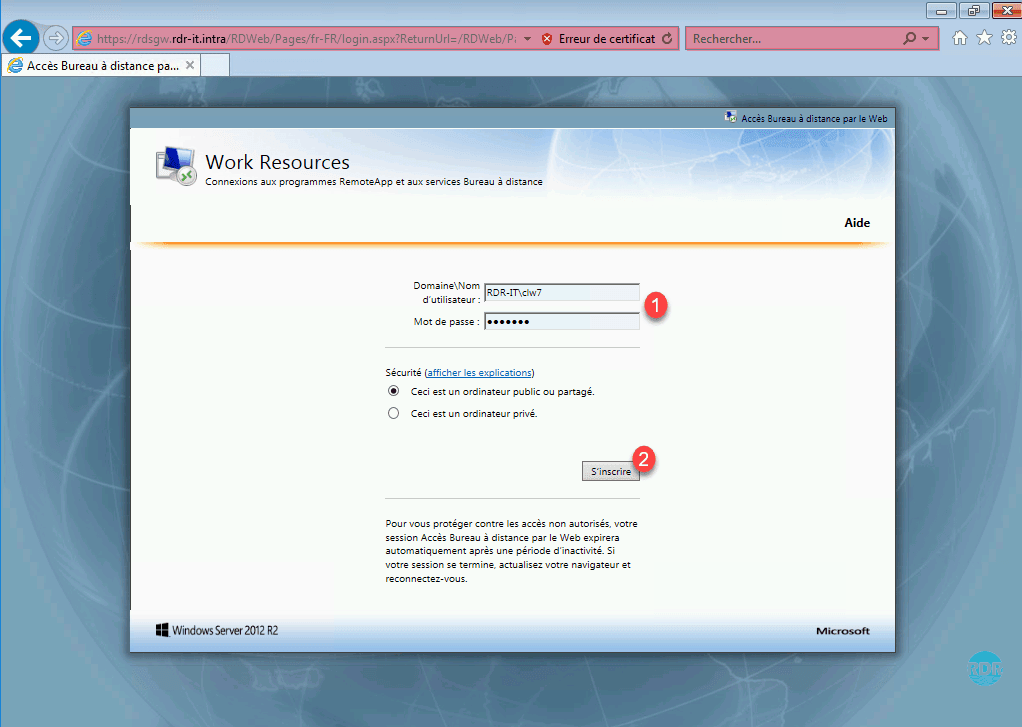

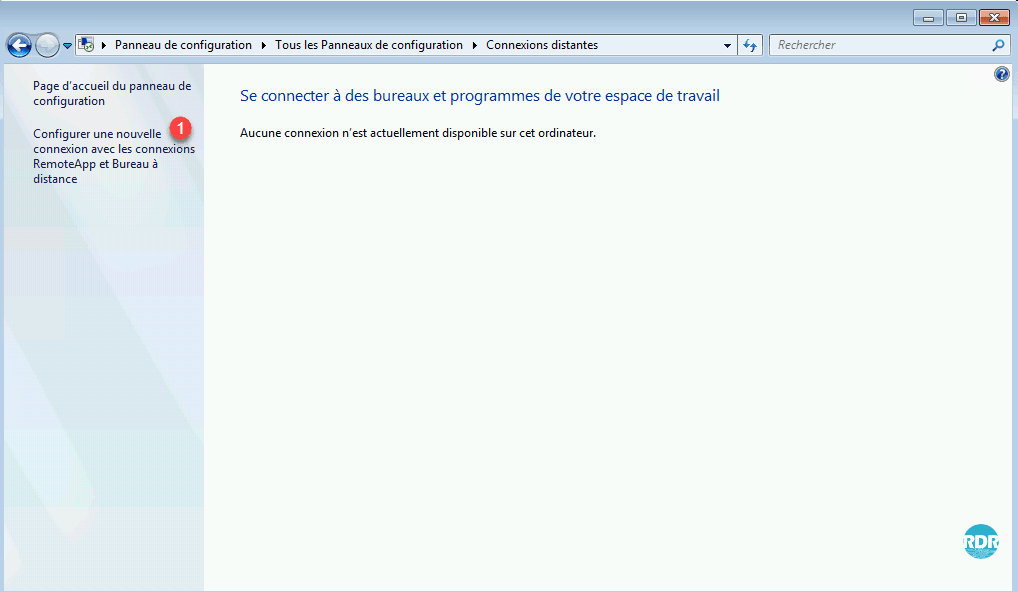

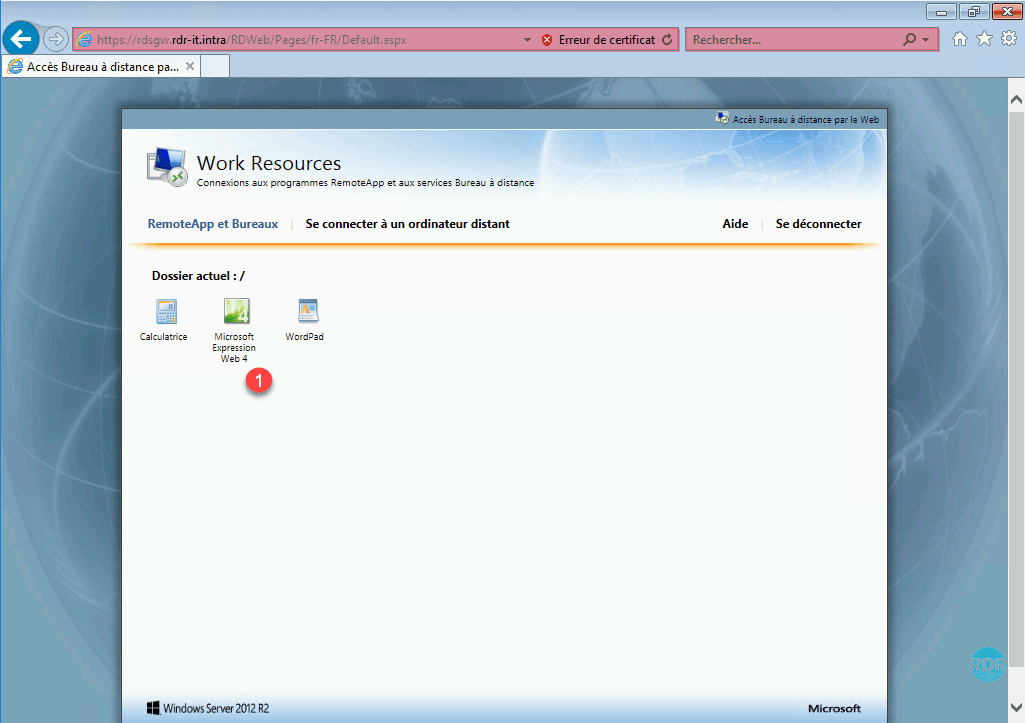

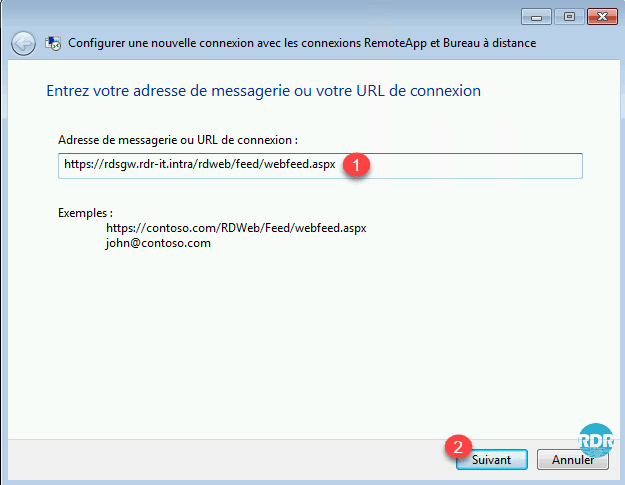

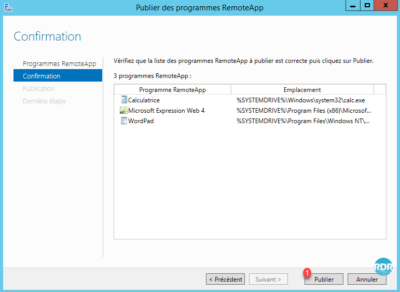

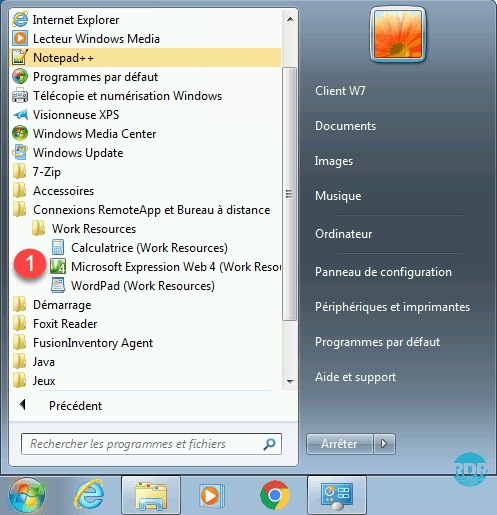

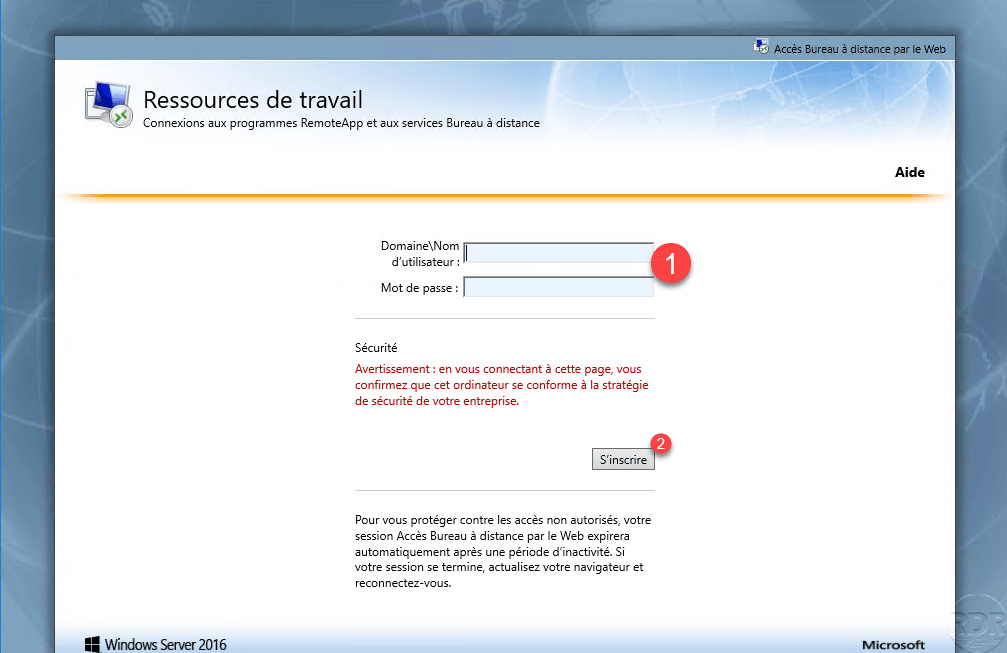

Web Access : publishes a web portal that allows access to applications via RemoteApp via an Internet browser. This role is also used for RemoteApp access for Windows clients. Through this portal, it is also possible to put the password change of the users.

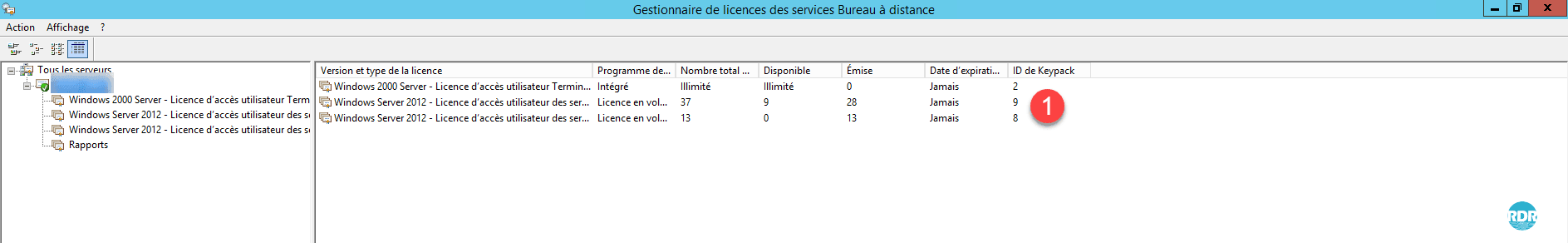

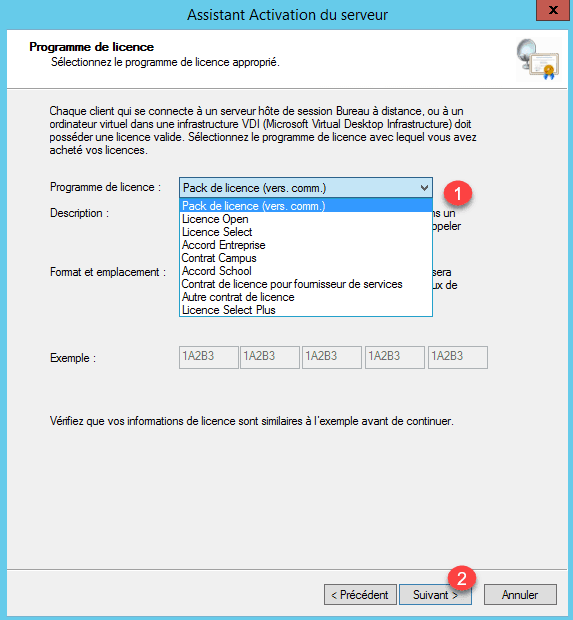

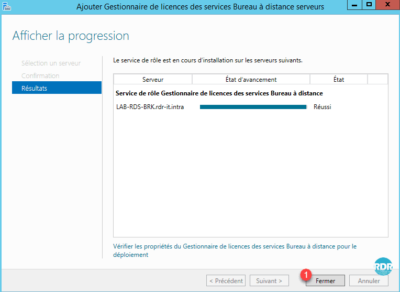

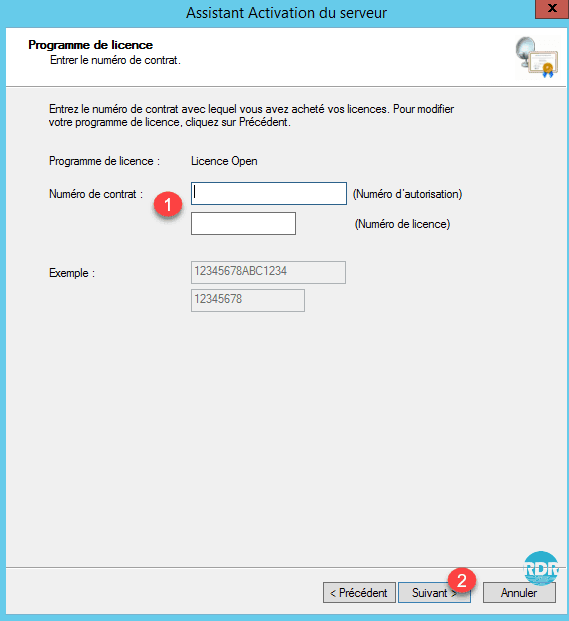

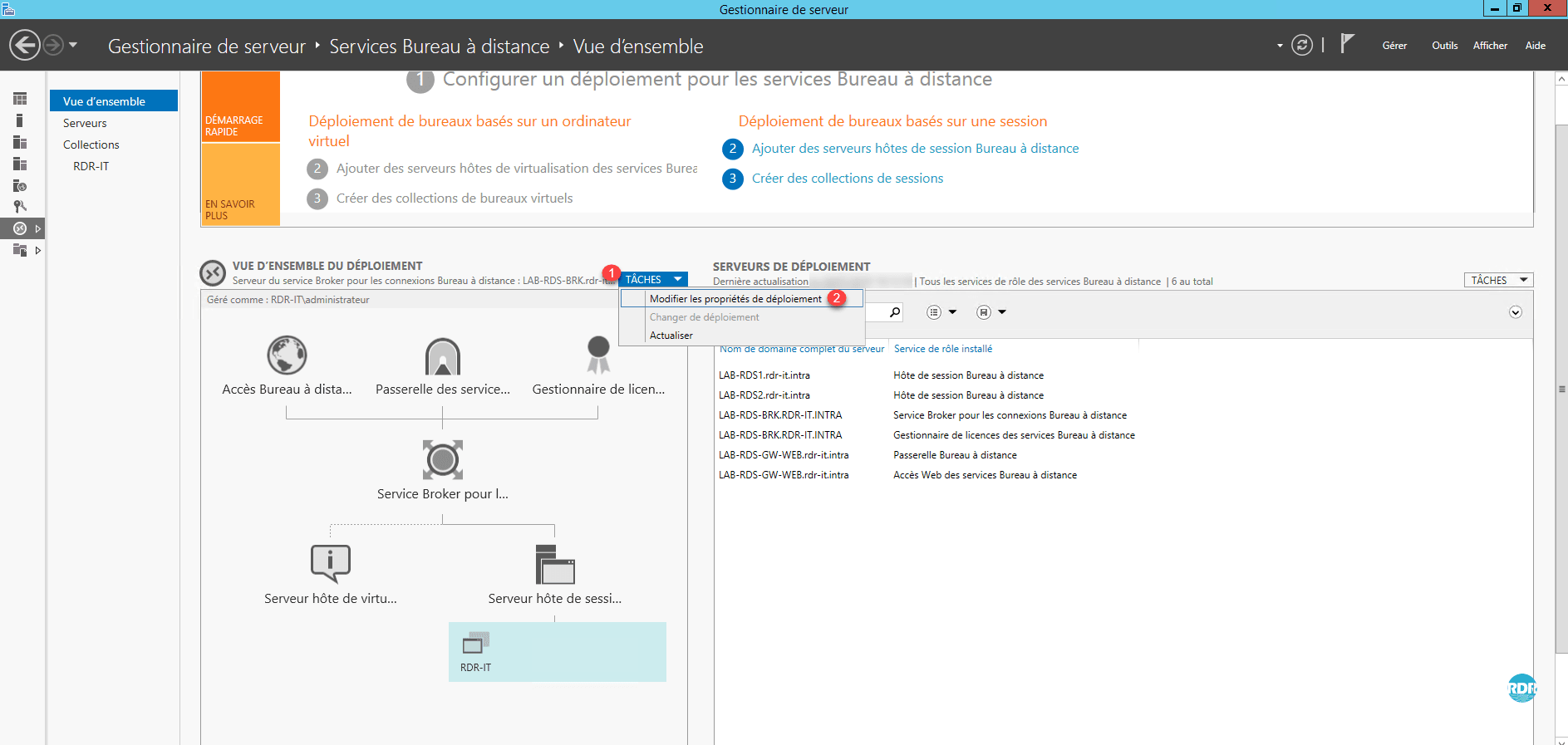

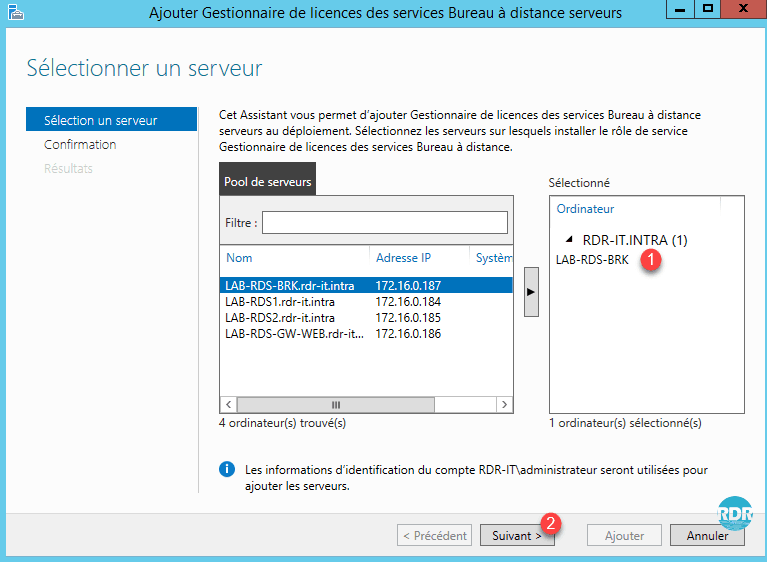

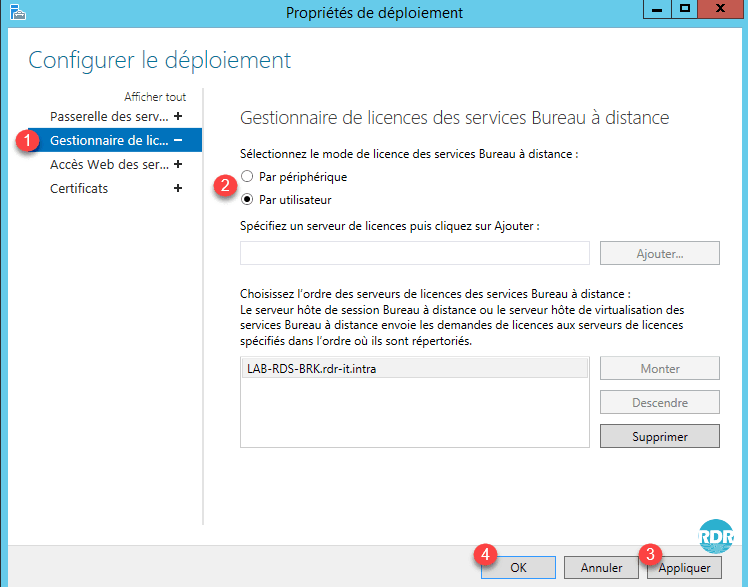

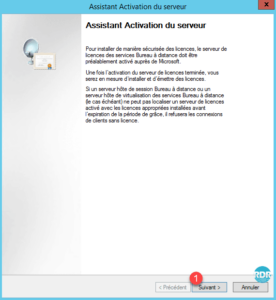

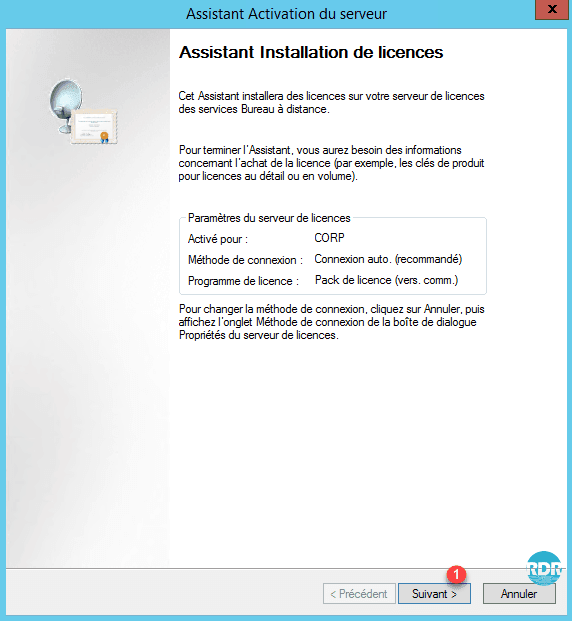

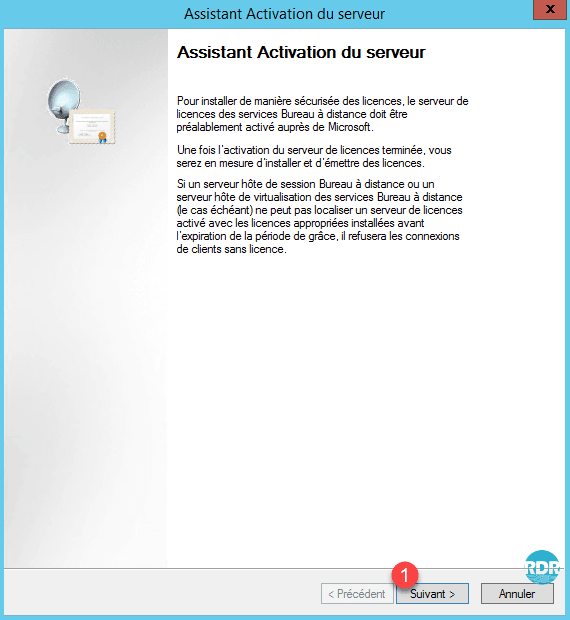

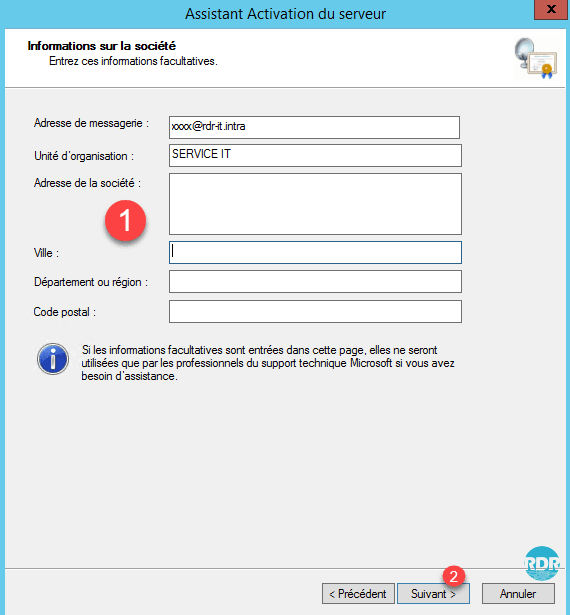

License Manager : This service is used for license distribution (CAL RDS).

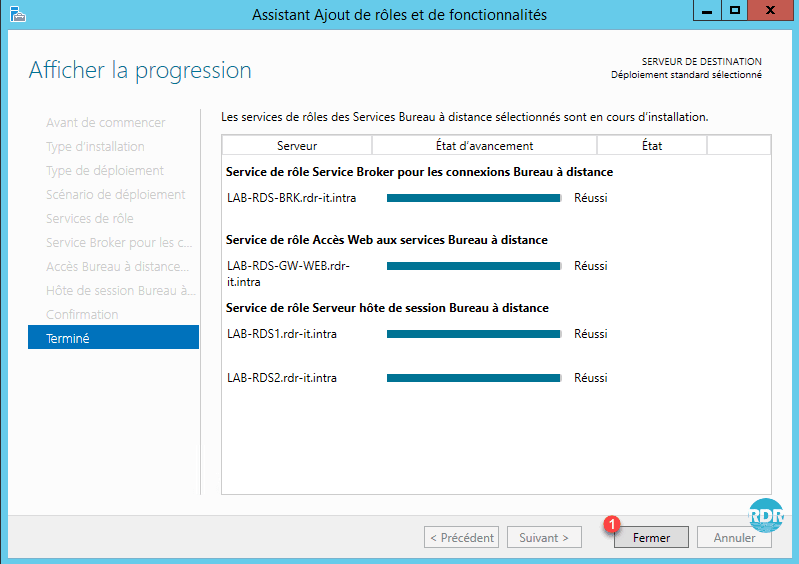

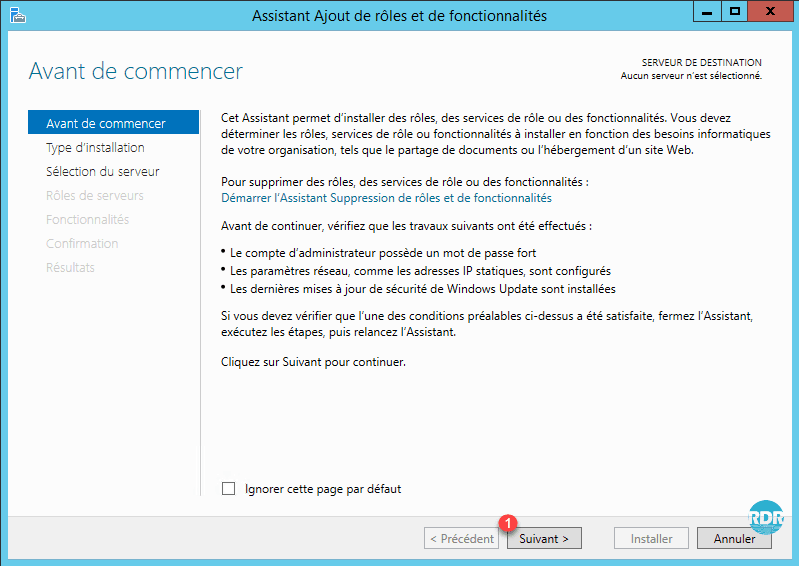

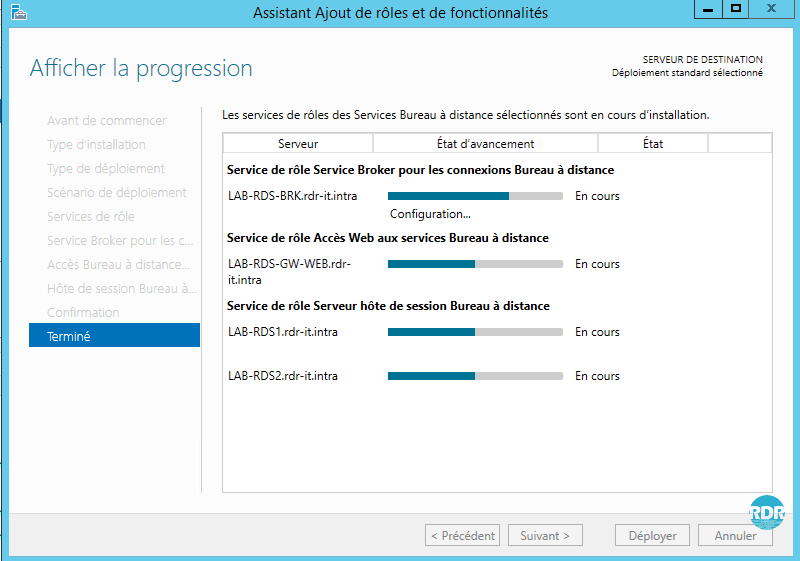

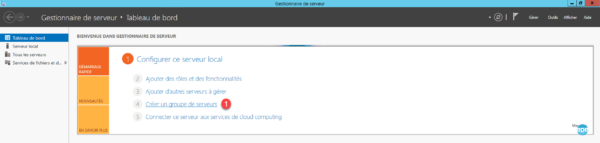

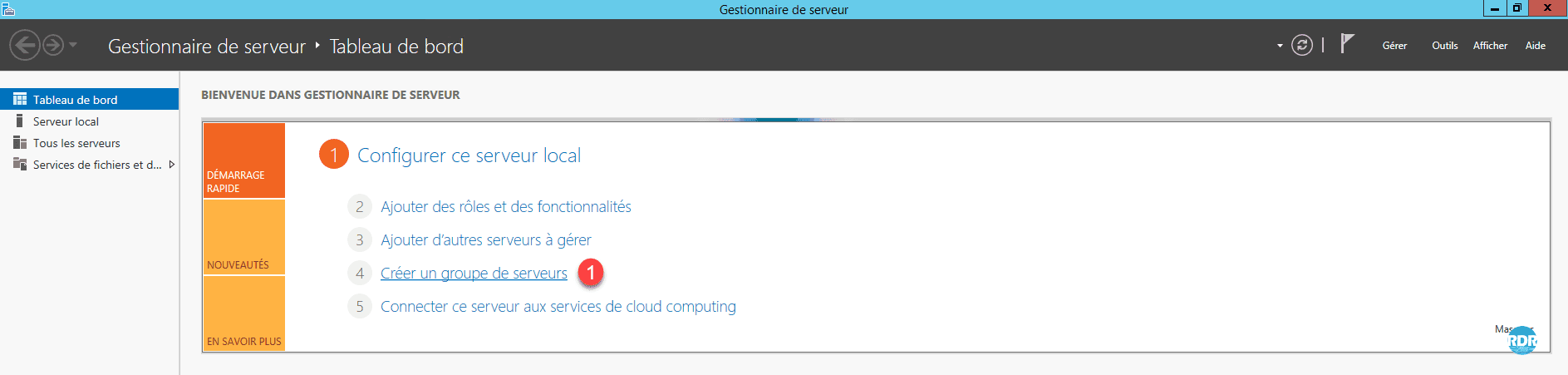

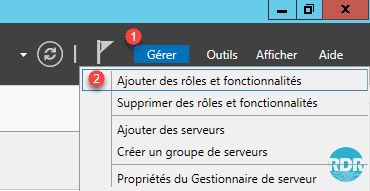

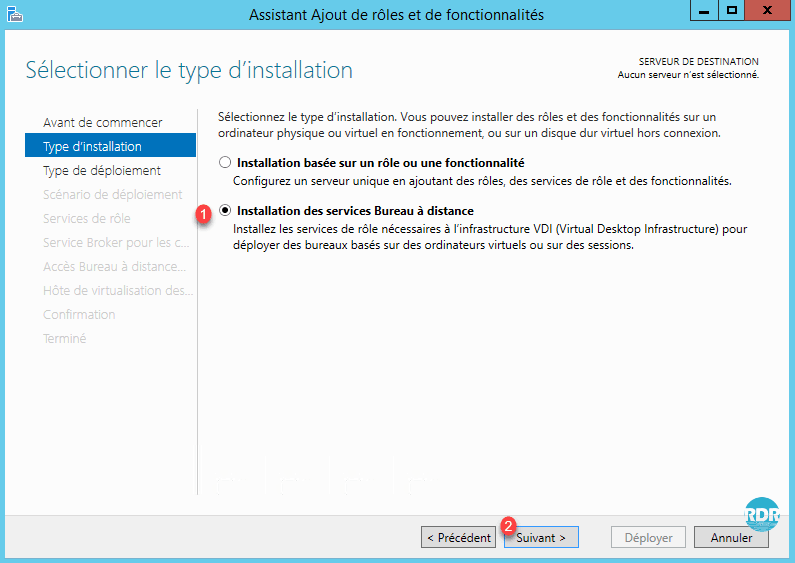

The tutorial was made under Windows 2012R2. The deployment of an RDS farm under Windows 2016 and 2019 is almost identical.
